Grandstream Networks GWN7610 Quick Installation Guide

4. Connect the power cable and the ethernet cable (RJ45) to the correct ports of your
GWN7610.
5. Align the arrow on the GWN7610AP with the arrow on the locking tab of the mounting
bracket and ensure that your GWN is rmly seated on the mounting bracket.
6.Turn the GWN clockwise until it locks into place and ts the locking tab.

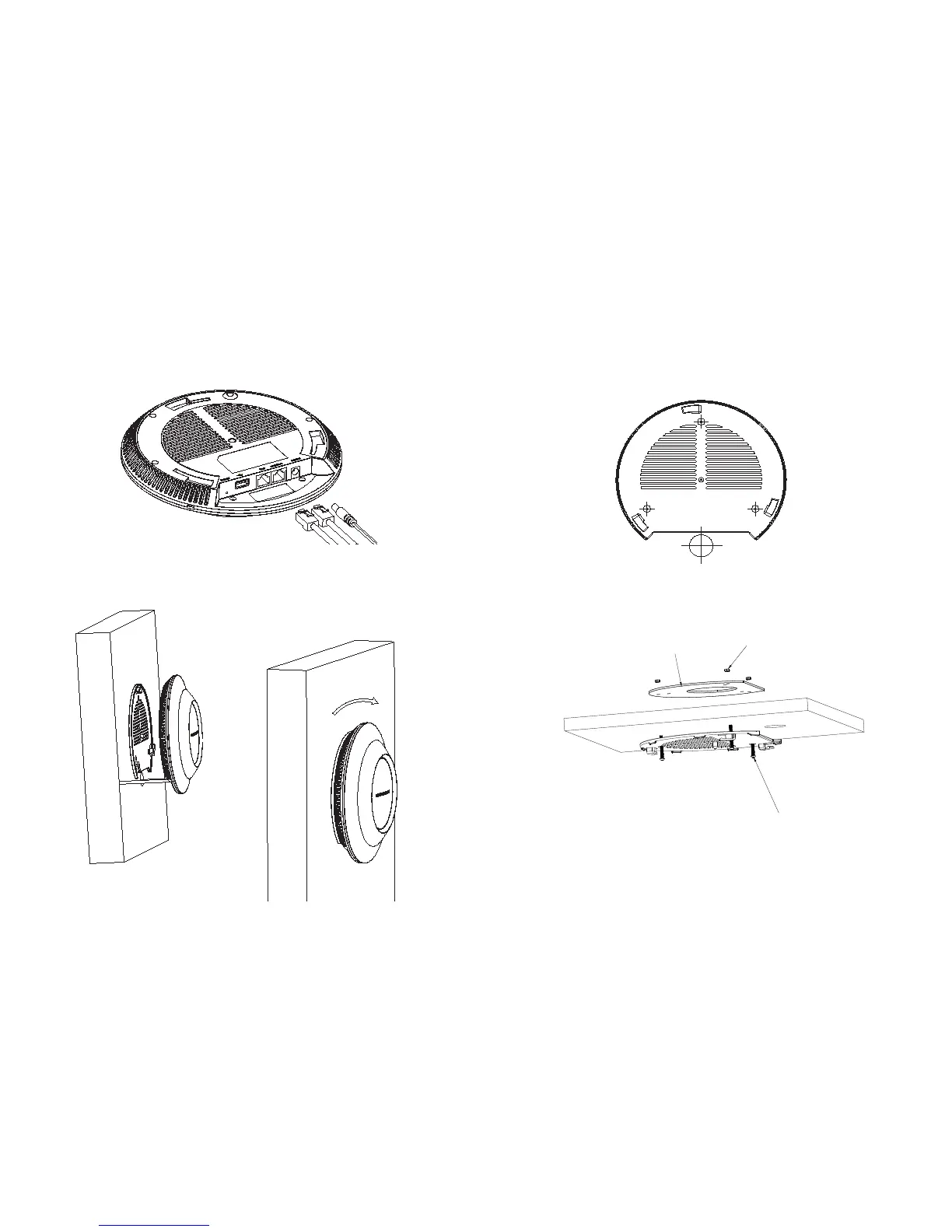

Ceiling Mount
1. Remove the ceiling tile.
2. Place the ceiling backing plate in the center of the ceiling tile and mark the mounting
screw holes (screw holes DIA 5.5mm, reticle hole DIA 25mm).
3. Insert the screws through the mounting bracket.
4. Connect the power cable and the Ethernet cable (RJ45) to the correct ports of your
GWN7610.
5
6
M3.0x50 screw
Ceiling Mounting
M3 nut

Grandstream Networks GWN7610 Specifications

General

Brand	Grandstream Networks
Model	GWN7610
Category	Wireless Access Point
Language	English
