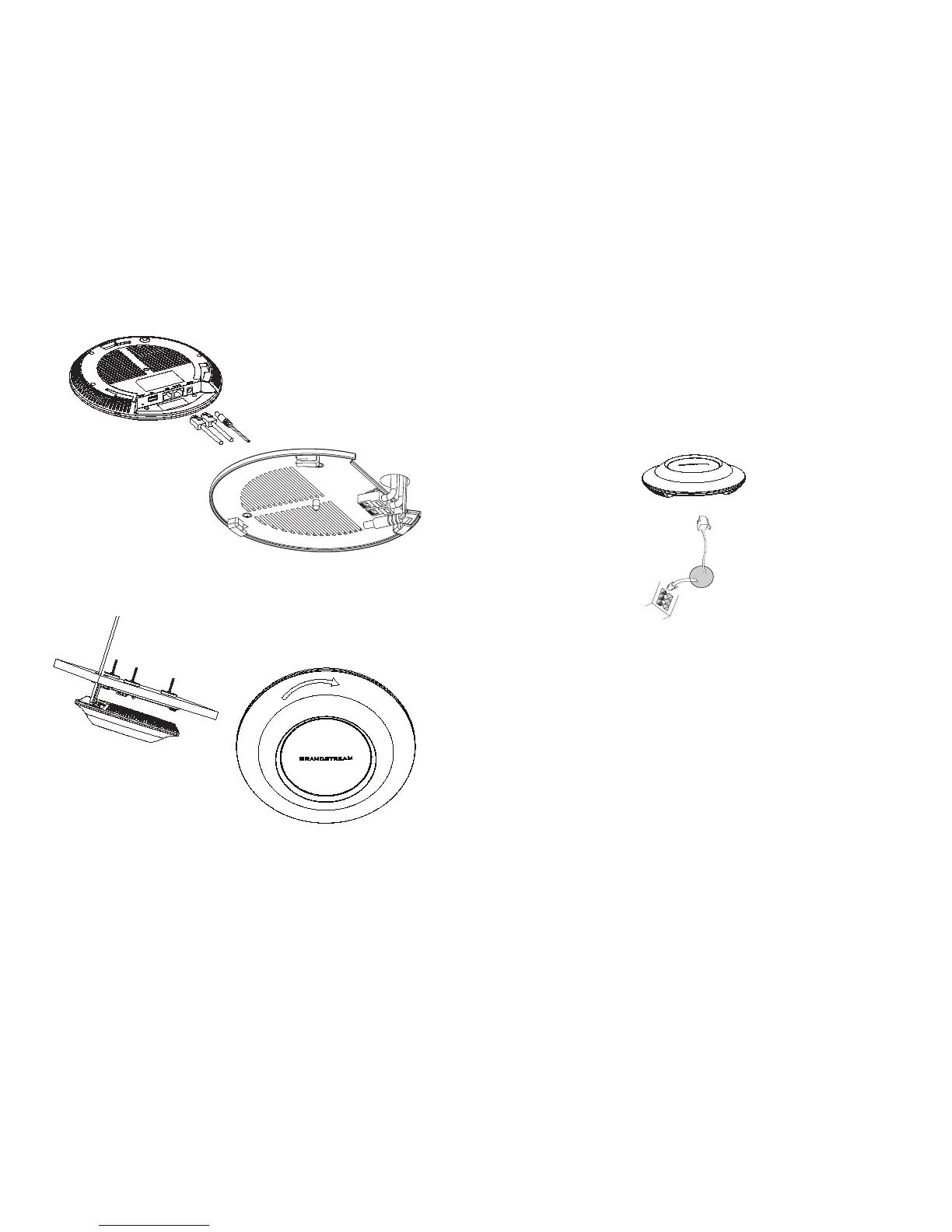

5. Align the arrow on the GWN7610AP with the arrow on the locking tab of the mounting
bracket and ensure that your GWN is rmly seated on the mounting bracket and connect
the network and power cables.
6.Turn the GWN clockwise until it locks into place and ts the locking tab.
RJ45 Ethernet Cable
to Power over Ethernet
(PoE) Switch
Network
Port
POWERING AND CONNECTING THE GWN7610
GWN7610 can be powered on using PoE/PoE+ switch using following steps:
Step 1: Plug a RJ45 Ethernet cable into the network port of the GWN7610
Step 2: Plug the other end into the uplink port of the power over Ethernet (PoE) switch.
7
8
Note: Ceiling mounting is recommended for optimal coverage performance.
