Special Softkeys
(Only for
GXP1610/GXP1615/
GXP1620/GXP1625/
GXP1628/GXP1630
when integrated
with UCM6xxx)
 CallPark
When the phone dials out, the CallPark softkey will display on screen. To park
the call, press it to park the call on available parking lot.
 RecOn
During an active call, the RecOn softkey will display on screen. Press it to
trigger UCM call recording.
 RecOff
During an active call, after RecOn softkey is pressed and call recording starts,
RecOff softkey will appear on screen. Press it to stop call recording on UCM.
Note: Please refer to UCM6xxx User Manuals for the UCM configurations.

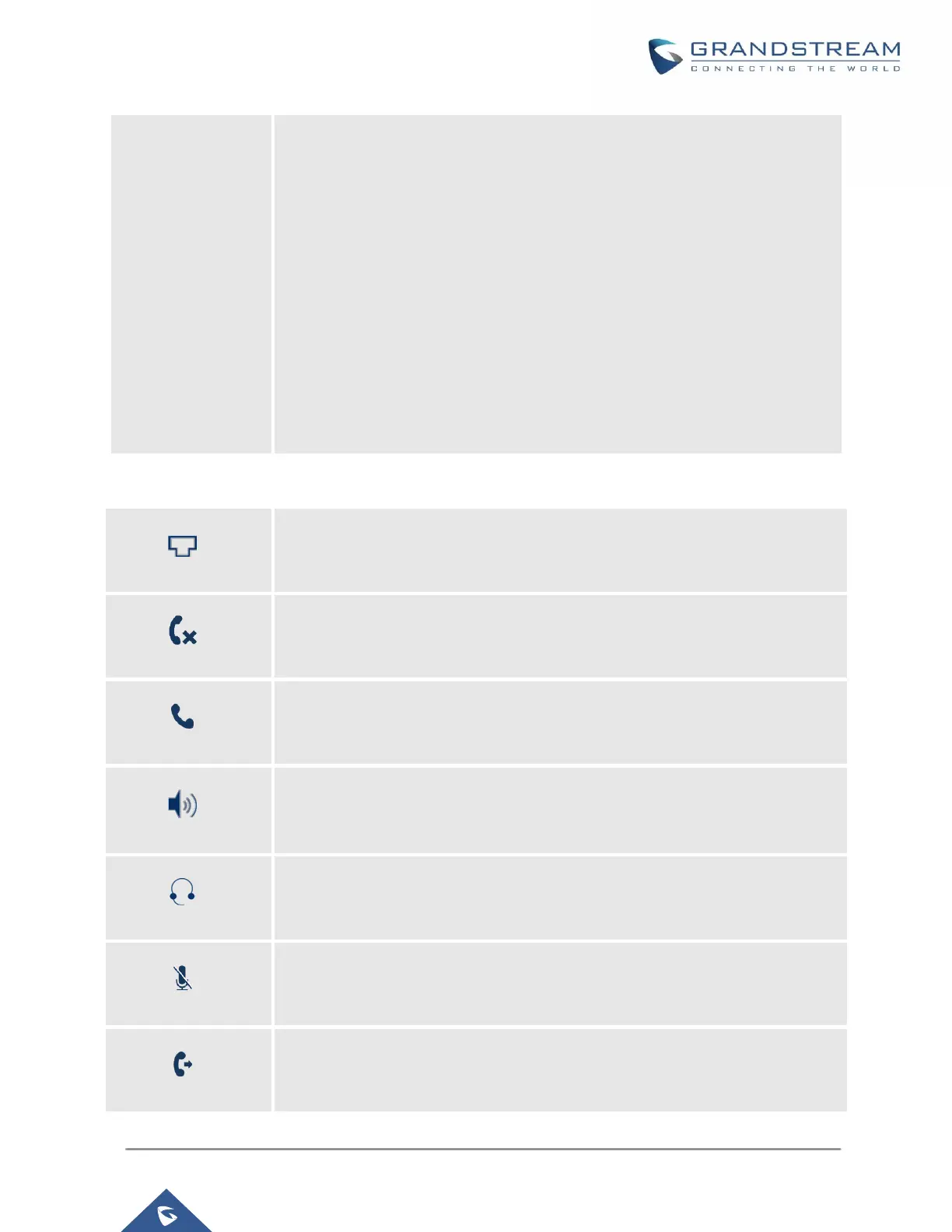

Table 8: GXP16XX LCD Icons
Registration Status.
 Solid: Registered
 Hollow: Unregistered
Missed Call(s) Notification Status.
 OFF - No missed call
 ON - New missed call
Handset Status.
 OFF - handset on hook
 ON - handset off hook
Speaker Status.
 OFF - speaker off
 ON - speaker on
Headset Status.
 OFF - headset off
 ON - headset on
Mute Status.
 OFF - The active call is not muted
 ON - The active call is muted
Call Forward Status.
 OFF - Call Forward feature disabled
 ON - Call Forward feature enabled
