Grandstream Networks GXP2130v2 Phonebook Guide

XML BASED DOWNLOADABLE PHONEBOOK GUIDE Page 3 of 15

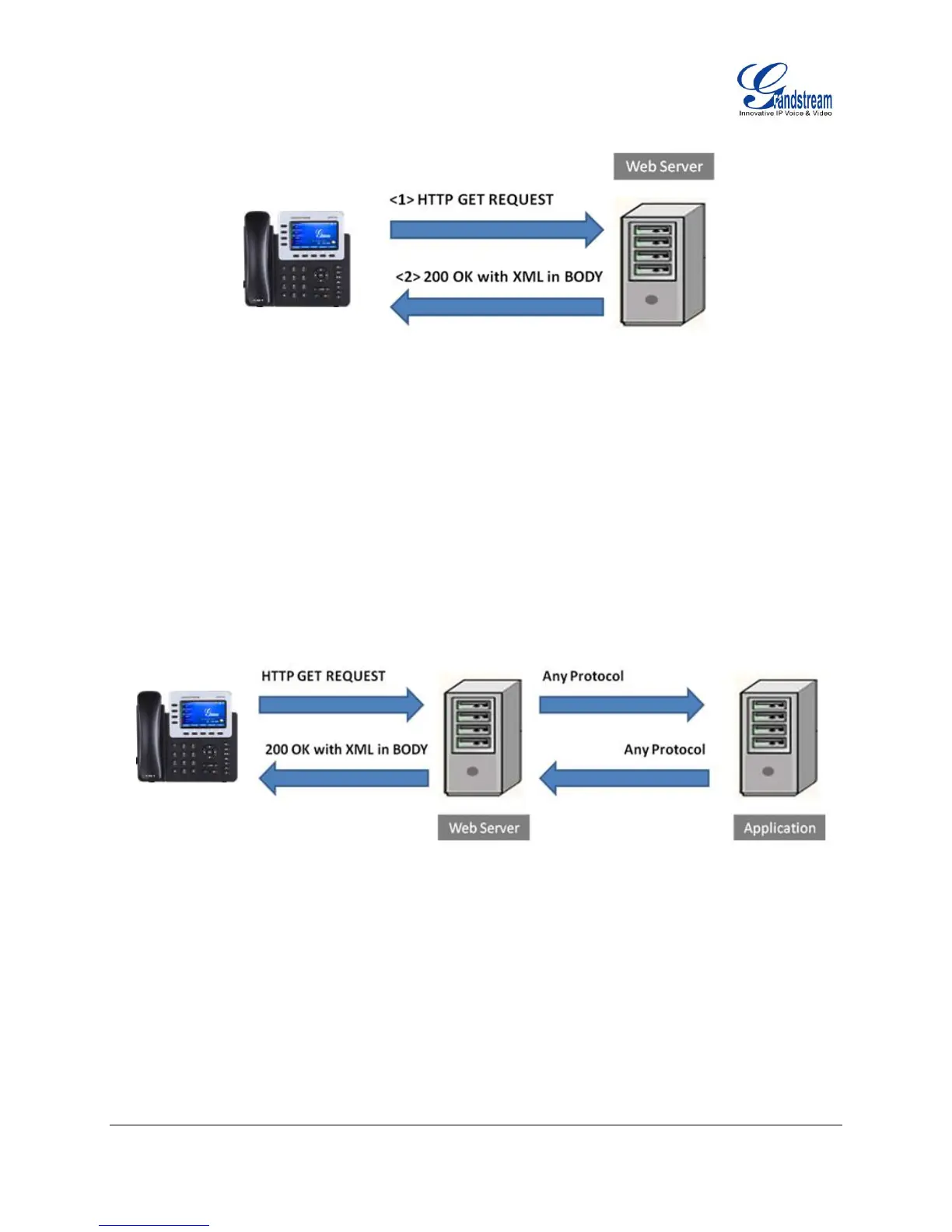

Figure 1: GXP2130/GXP2140/GXP2160 XML API via HTTP
Two types of XML API architecture are introduced below, depending on whether the transaction is via LAN
or Internet.
1. A transaction in the LAN may exchange information in the following manner. The
GXP2130/GXP2140/GXP2160 sends a request to the web server via HTTP/TFTP and waits for a
response with the XML contents. The web server will handle the request and communicate with the
application server to get the information for the XML phone book content display. The following figure
shows downloading XML phone book file via HTTP within a LAN.
Figure 2: GXP2130/GXP2140/GXP2160 XML API Structure 1
2. If the above Web Server accesses Internet, it could interact with outside web server and respond with
real-time content to the GXP2130/GXP2140/GXP2160.

Grandstream Networks GXP2130v2 Specifications

General

Brand	Grandstream Networks
Model	GXP2130v2
Category	IP Phone
Language	English
