Grandstream GXV3615 Server Setup Guide
3
4.0 Setup Procedure
To set up the Elastix Server for the Grandstream GXV3615
1. Go to the web address of the Elastix Server Login page. The web address is
determined by the customer, for this guide we have used the IP address 192.168.5.111
2. On the Login page, type the username and password for an administrative user into
the Username and Password fields, see Figure 4-1. The username and password are
determined by the customer.

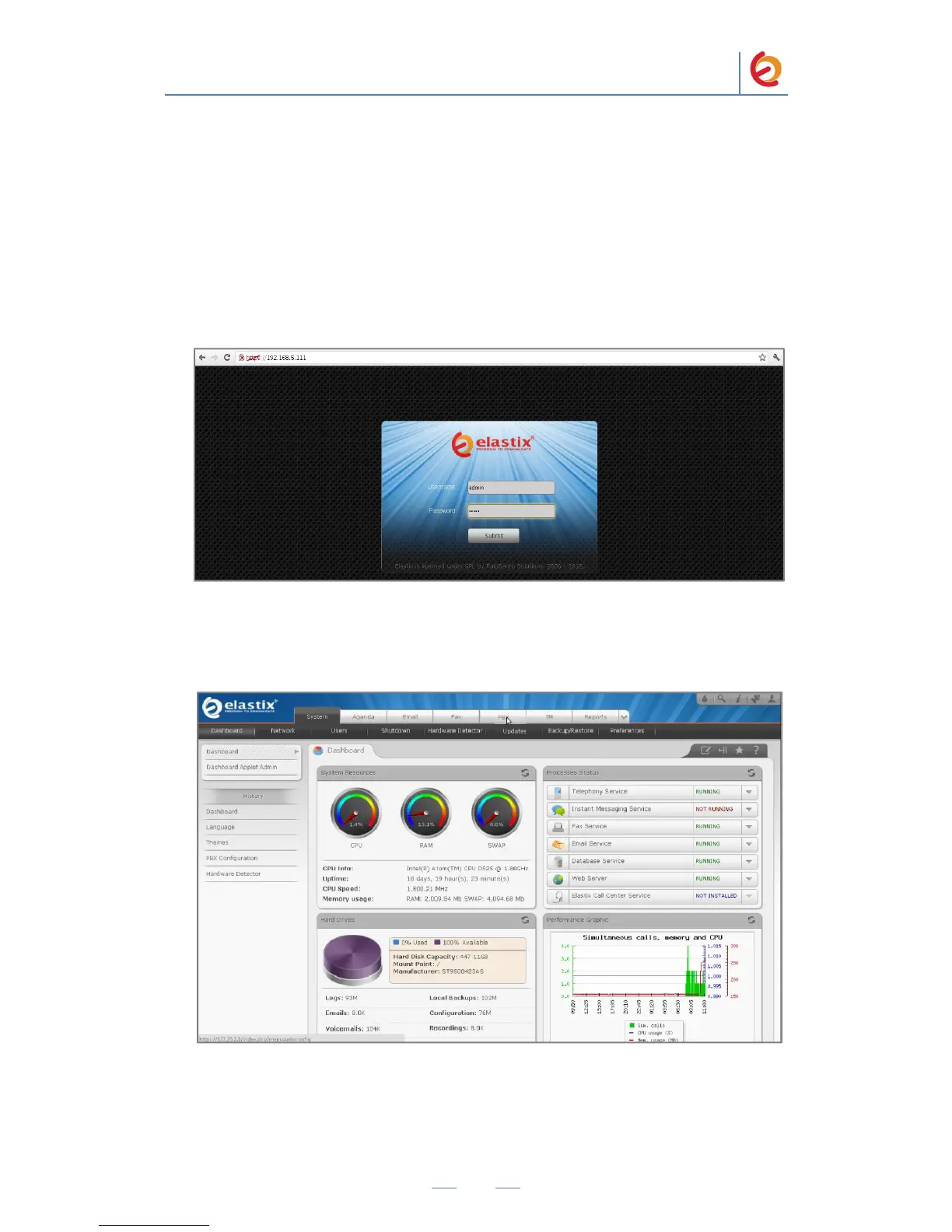

Figure 4-1. Login
3. Press Enter or click on the Submit button to go to Elastix’s Dashboard
4. Once inside, click on the PBX tab on the menu at the top of the screen
Figure 4-2. Dashboard
5. Click on the Submit button to add an extension, see Figure 4-3. This will take you to
the Add SIP Extension page.

Grandstream Networks GXV3615 Specifications

General

Brand	Grandstream Networks
Model	GXV3615
Category	IP Camera
Language	English
