Grandstream Networks GXW4248 User Manual

FIRMWARE 1.0.3.4 GXW4248 USER MANUAL PAGE 10 OF 54

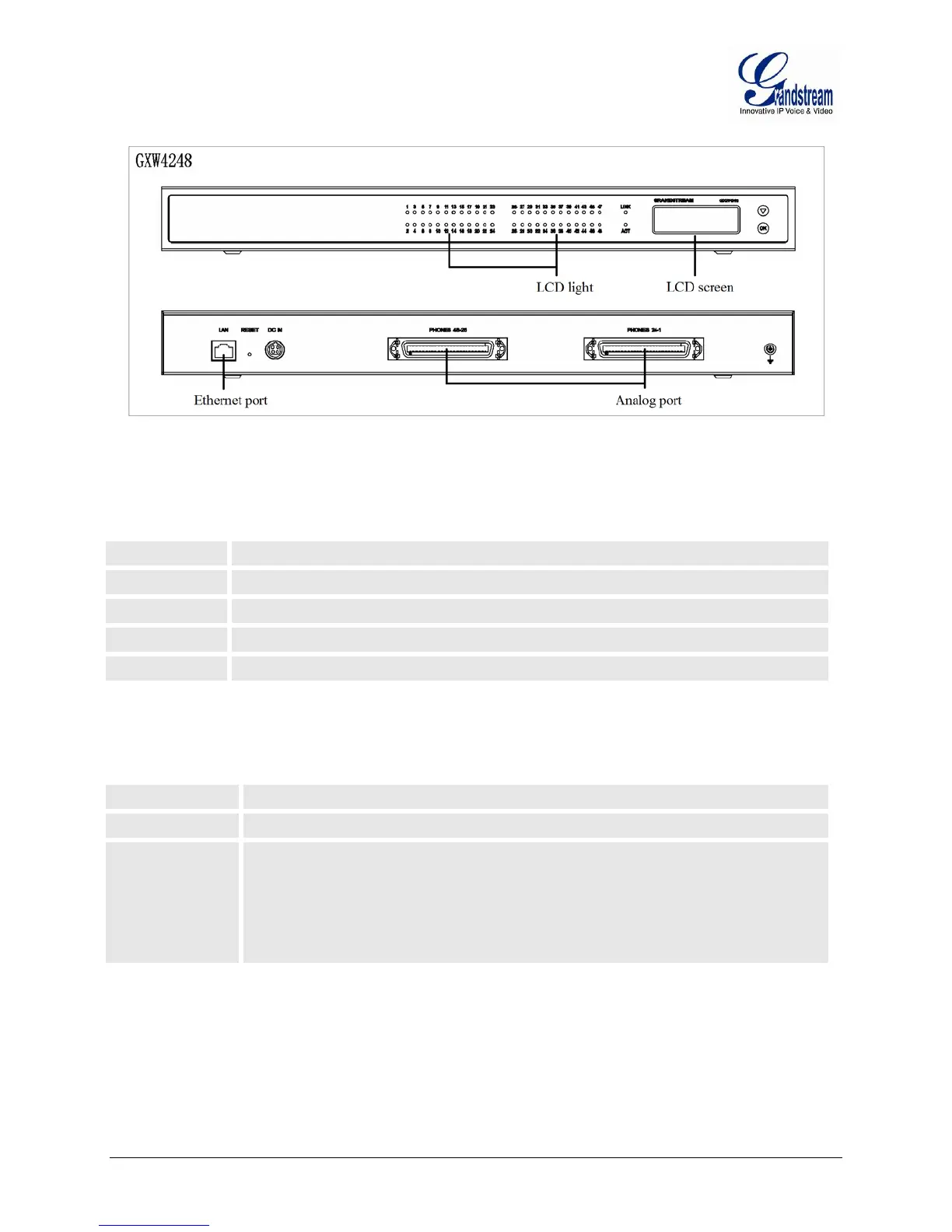

FIGURE 1: DIAGRAM OF GXW4248 PANEL
TABLE 1: DEFINITIONS OF THE GXW CONNECTORS
Ethernet port
Connect to the internal LAN network or router
RESET
Factory Reset button. Press and hold for a while to reset factory default settings.
DC IN
Power adapter connection
Analog port
Connect to analog phones / fax machines with an RJ21 to RJ11 cable
FXS ports
FXS port to be connected to analog phones / fax machines.
Note: Once the GXW4248 is turned on and configured, the front display panel indicates the status of the
unit.
TABLE 2: DEFINITIONS OF THE GXW DISPLAY PANEL
Act LED
Remains ON if plug the network cable.
LINK LED
Indicates Ethernet port activity.
FXS LED
Indicate status of the respective FXS Ports on the back panel
Busy - ON (Solid Green)
Available - OFF
Slow blinking FXS LEDs indicates Voice Mail for that port.
All FXS LEDs slow blinking indicates provisioning.
