CONNECTING THE UCM6301/6302:
1. Connect one end of an RJ-45 Ethernet cable into the WAN port of the
UCM6301/6302.
2. Connect the other end of the Ethernet cable into the uplink port of an Ethernet
switch/hub.
3. Connect the 12V DC power adapter into the 12V DC power jack on the back
of the UCM6301/6302. Insert the main plug of the power adapter into a surge-
protected power outlet.
4. Wait for the UCM6301/6302 to boot up. The front LCD display will show the
UCM’s hardware information when the boot process is completed.
5. Once the UCM6301/6302 is successfully connected to network via WAN port,
pressing the “Home“ button will allow you to get the IP address as well as other
information.
6. (Optional) Connect PSTN lines from the wall jack to the FXO ports, connect
analog devices (phone and fax) to the FXS ports.

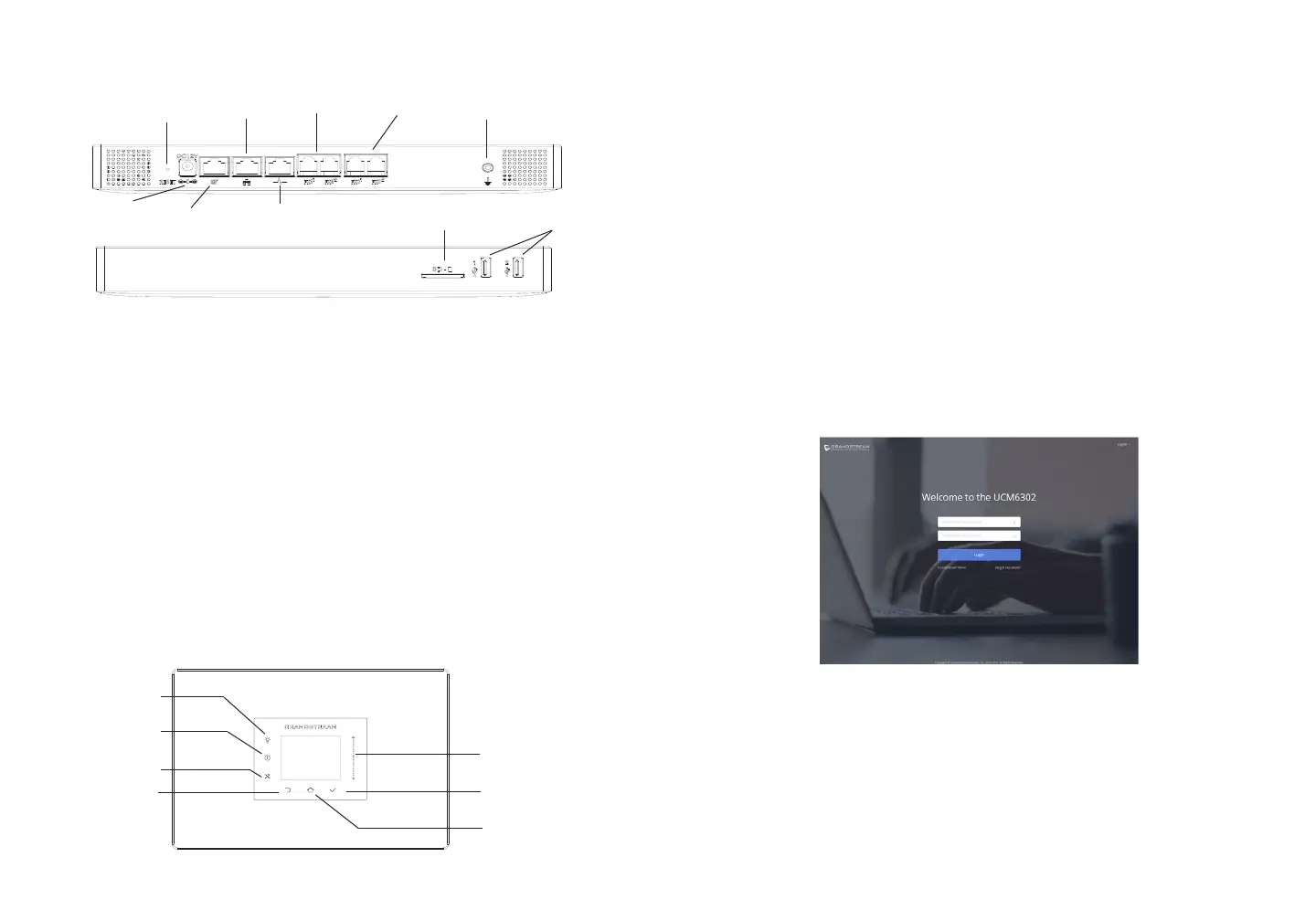

USING THE UCM6301/6302 LCD MENU:
DC 12V
WAN port
LAN port
Reset
Heartbeat port
FXS ports
FXO ports
Ground
SD Card slot
USB ports
1. Press “Settings“ key to start browsing menu options.
2. Press “Navigation Key” to browse dierent menu options. Press “OK” to select
an entry.
3. In the menu option, select “Back” to go back to previous menu.
4. The LCD will return to default display after being idle in menu for longer than
30 seconds.
OK button
Back
Home button
CONFIGURING THE UCM6301/6302 VIA
WEB GUI:
1. Connect the computer to the same network as the UCM6301/6302.
2. Ensure the UCM6301/6302 is properly powered on then press the “Home“
button to displays the IP address and other information on the LCD screen.
3. Open a web browser on the computer and enter the displayed IP address into
the search bar in the following format: http(s)://ipaddress:portnumber
4. Enter admin’s username and password to access the conguration menu.
(The factory default username is “admin” while the default random password
can be found on the sticker at the back of the unit).
Note: The number of FXS, FXO and USB ports depends on the UCM6301/6302
model.
Navigation Keys
Information
Interface
Status
Settings
5. For more detailed information on how to congure SIP extensions, PSTN con-
nections, SIP trunks, and other system settings via the web UI, please down-
load the UCM6301/6302 user manual here: http://www.grandstream.com/sup-
port/
Refer to online documents and FAQ for more detailed information:
http://www.grandstream.com/our-products
This product is covered by one or more of the U.S. patents (and any foreign patent counter-
parts thereto) identied at www.cmspatents.com.
Front view
Rear view
