Roof Anchor Options
07-A
12
06
13
11
04
03-A
08
09
05
04
10
03-B Flat tile
03-C Slate
03-A Profile tile
14
02
01
On-Roof System
Installation
13
4.1 Installation Summary
The standard installation kit allows solar
collectors to be fitted vertically onto
horizontal mounting rails.
Mounting rails are fixed to the roof
structure using the appropriate type of
roof anchors for the roof covering - e.g.
slates, flat tiles or profile tiles.
Item Description
01 Collector
02 Mounting rail set
03 Roof Anchors -A profile tile
B flat tile
C slate roof
04 Rail profile
05 Anchor block
06 Collector connection kit
07 Collector to Collector
connection kit
08 Cylinder anchor bolt
09 Fixing Bracket
10 Interlocking bolt
11 Hydraulic connection
12 Insulation
13 Temperature sensor
14 Mounting hooks

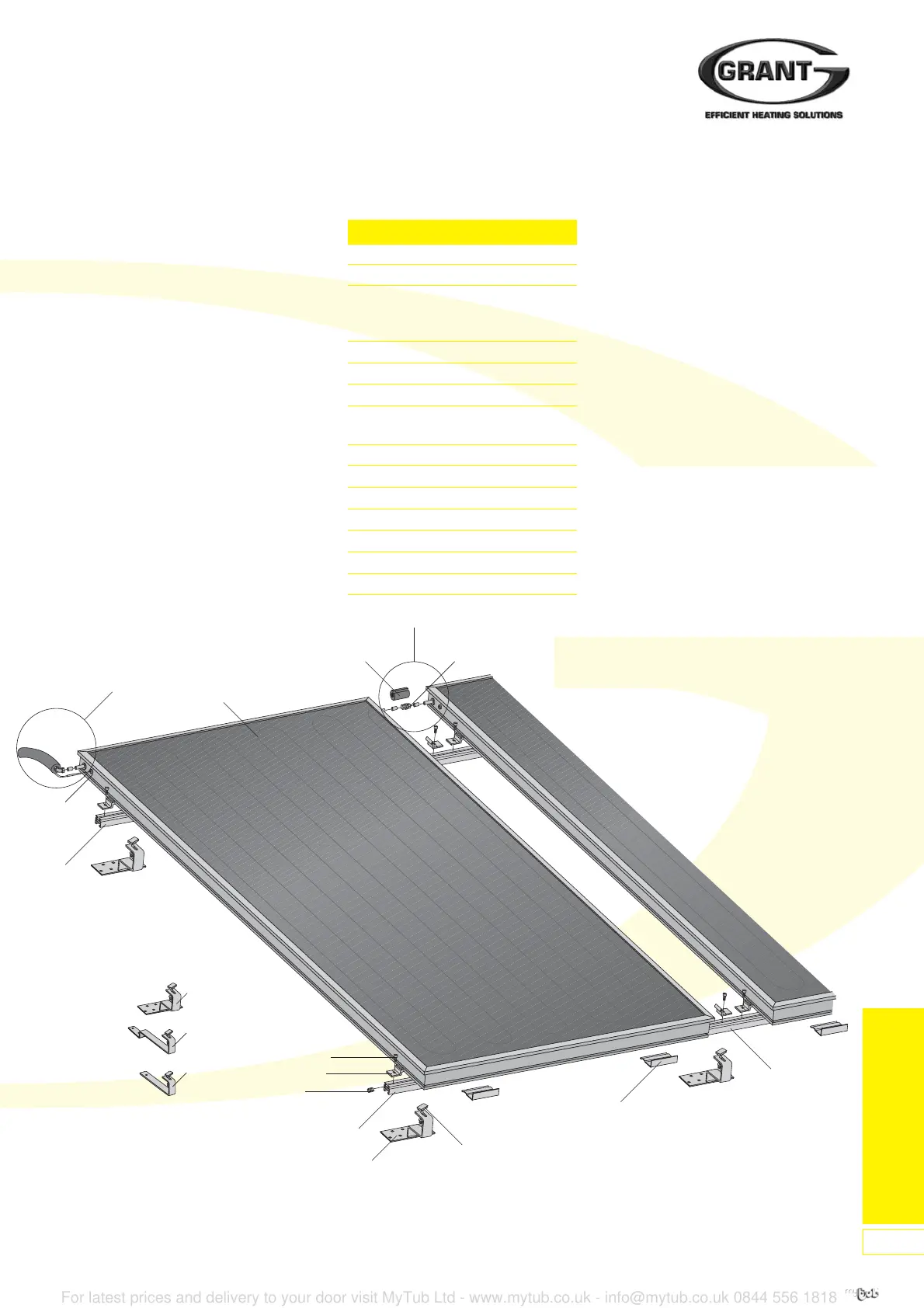

Figure 22: Installation Summary,
Vertical Solar Collector Layout
