Solar Pump Station
51
13 Solar Pump Station
13.1 Solar Pump Station
Introduction
A two-line solar pump station which
include flow and return isolation valves.
All other fittings for safe operation of the
system are housed within this unit.

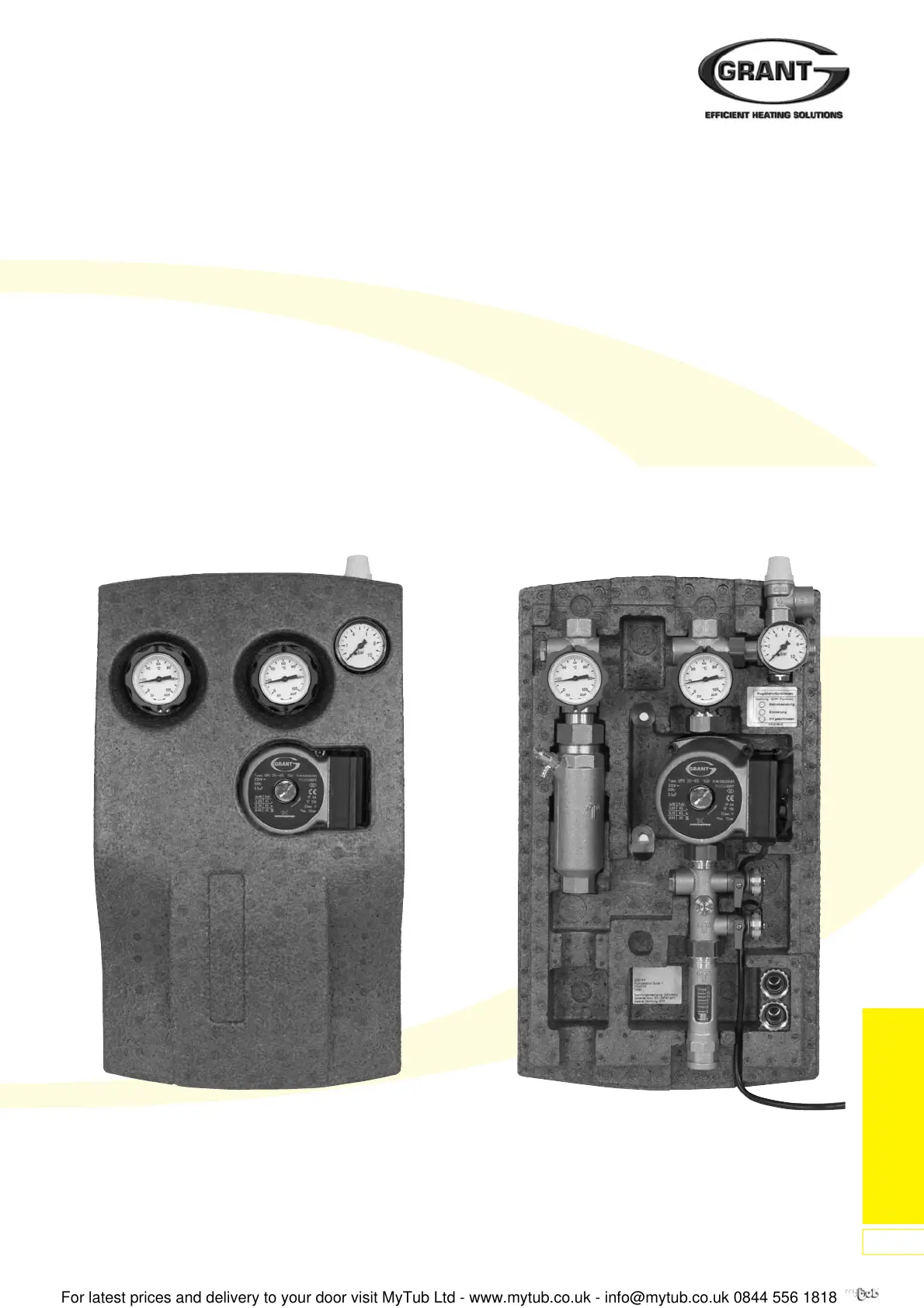

Figure 107: Solar Pump Station
Components
• System bleeding
• Flowmeter
• Special solar pump
• Compact heat insulation
• Shut-off valve with gravity braking
• 6 bar safety valve
• Pressure gauge
• Connector expansion vessel
• Filling and flushing connector
Features & Benefits
• Flow meter - volume flow rate
setting
• Solar pump - tailored to solar
installation (low volume flow rate -
high pressure difference)
• Compact insulation - Efficient and
attractive - prevents heat loss
• Stop valves with gravity breaking
• 6 bar safety valve - low vapour
build-up - Long service life of
component
• Connection to expansion tank -
Quick installation
• Flush/filling connections - For high
pressure filling unit
Figure 108: Components
To Next Page
