In-Roof System
Installation
25
Item Description
01 Bottom batten
(30 x 50mm)*
02 Middle batten
(30 x 90mm)*
03 Top batten
(30 x 50mm)*
04 Mounting bracket
05 Anchor block
06 Collector connection kit
*
Battens to be supplied by installer. Dimensions
given are for guidance - batten thickness must
match existing tile battens. Timber must be
treated e.g. Tanalised or similar.
Item Description
08 Cylinder anchor bolt
09-A Side gutter - Left hand
09-B Side gutter - Right hand
10-A Base tray - left half
10-B Base tray - right half
11 Hydraulic connection
12 Insulation
13 Temperature sensor
14 Cover strip
15-A** Bottom flashing - Left hand
not shown (for slates)
15-B** Bottom flashing - Right hand
not shown (for slates)
Item Description
16-A Bottom apron - Left hand
flashing (for tiles)
16-B Bottom apron - Right hand
flashing (for tiles)
17-A Top cover - Left hand
flashing
17-B Top cover - Right hand
flashing
18 Fixing screw - not shown
19 Clip (with nail – not shown)
20 Foam draught seal wedge
21 Foam draught seal block
22 Closure strip
23 Collector to collector
connection kit (landscape
collectors only)

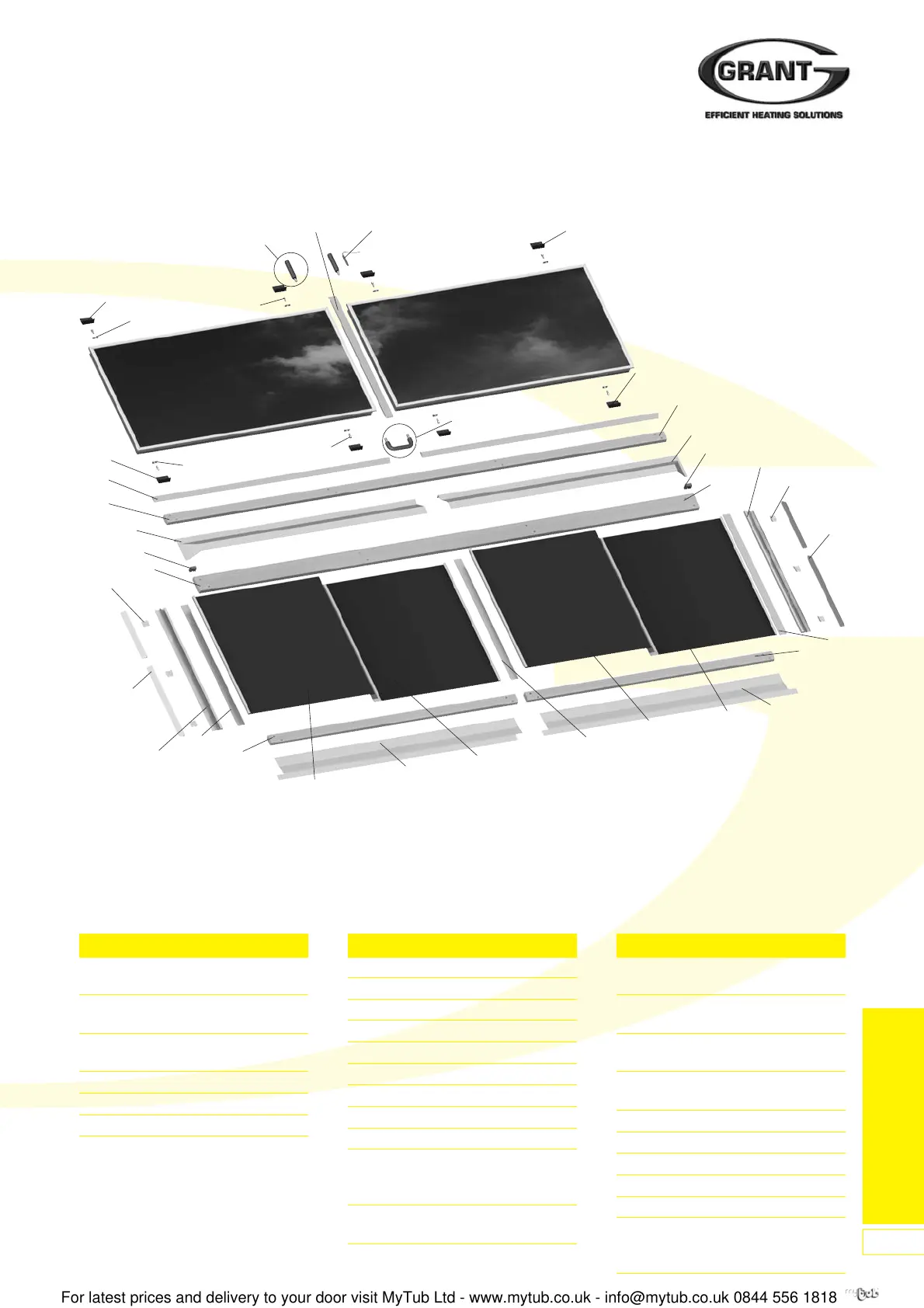

Figure 49: Installation Summary
Landscape Collector Installation
06
1322 04
04
03
03
17-B
17-A
21
02
21
02
01
01
10-A
10-B
10-B
10-A
14
16-B
16-A
14
19
20
14
19
20
09-B
09-A
05
05
08
08
04
20
04
23
