Step 6
Lift the handle to disengage the catch and fully open the combustion
chamber door. Refer to Figure 10-5.
WARNING
The interlock on the combustion chamber door automatically
disconnects the power supply to the burner if the door is
opened.
IT DOES NOT IMMEDIATELY EXTINGUISH THE BURNER
FLAME.
If the burner door is opened during the operation of the burner
there can be a large uncontrollable flame from the brazier.
Step 7
Hook one of the two carrying handles (supplied with the boiler) under
the front edge of the ash pan and carefully pull the ash pan forward by
about 300mm (12inches). Refer to Figure 10-6.
Step 8
Brush/scrape any ash resting on the burner into the ash pan below.
Step 9
Using both of the carrying handles, one at the front and the other at
the back, carefully lift the ash pan out of the boiler. Refer to Figure
10-7.
Do NOT use the centre cross bar of the ash pan as a carrying
handle.
Step 10
Safely dispose of the ash.
WARNING
Extreme care is required when emptying the ash pan as
smouldering ash could be present and can cause serious
damage to persons or property.
Ensure the ash is disposed of in a safe manner.
Step 11
Remove any remaining ash that may be left in the base of the boiler
before putting the ash pan back into the combustion chamber.
Step 12
Close the combustion chamber door and ensure that the door catch
is fully engaged.
Remove the door handle and keep in a safe place for future use,
along with the carrying handles.

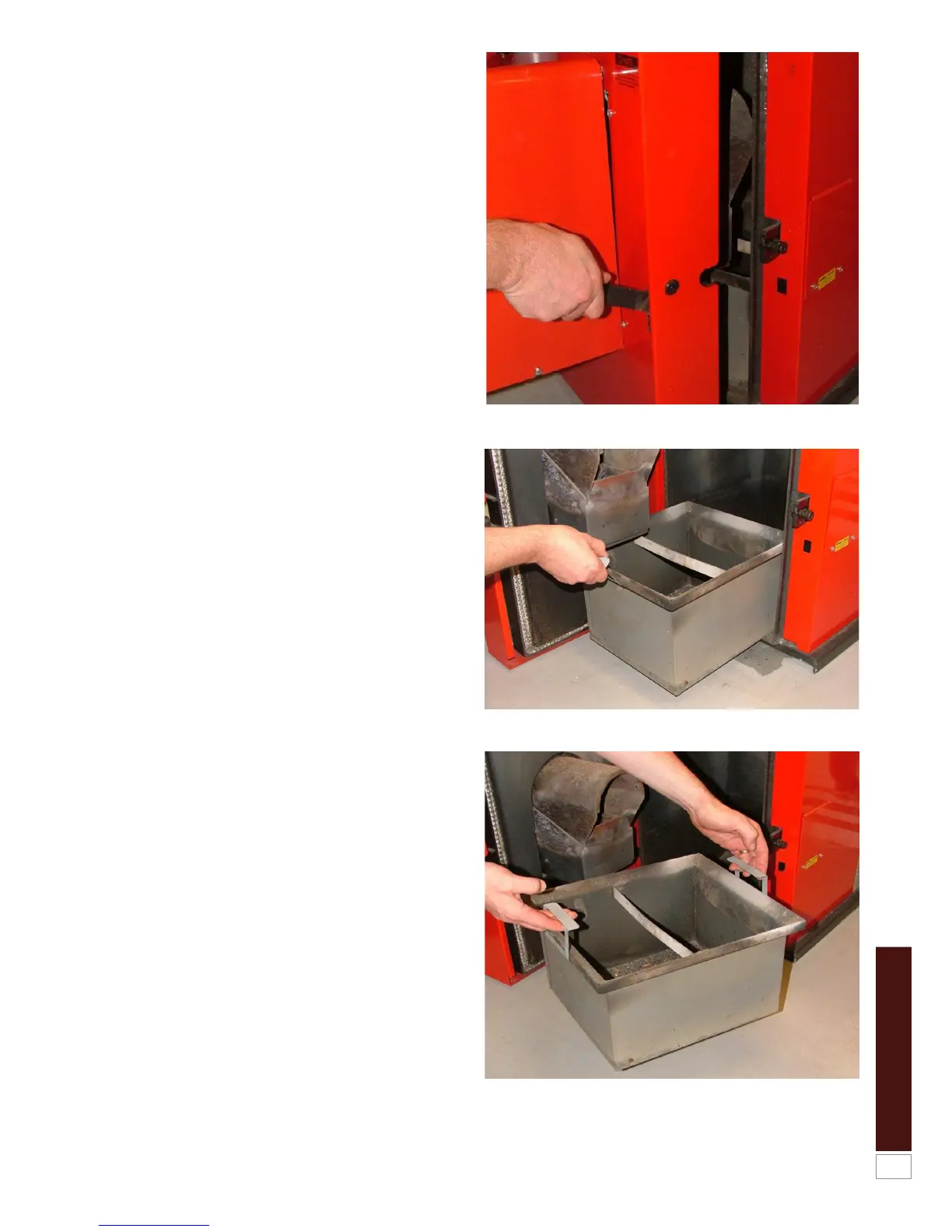

Figure 10-5: Opening combustion chamber door
Figure 10-6: Removal of ash pan from boiler
Figure 10-7: Lifting ash pan using carrying handles
