Grant Squirrel SQ2010 SERIES User Manual

28507 Version 6 SQ2010
Page 15

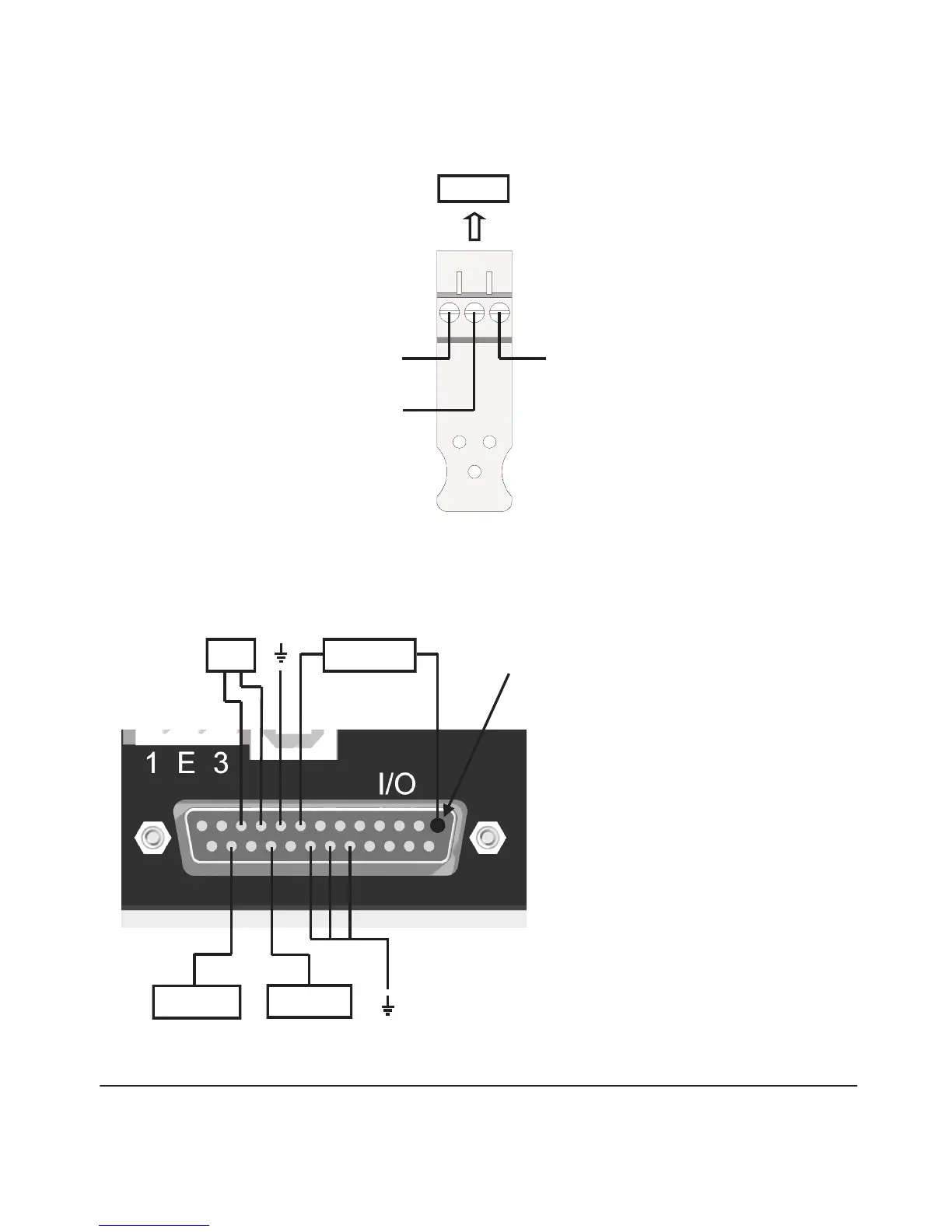

I/O Socket Wiring
Sensor Power Wiring
ALARM
O/P
EVENT/STATE
I/P 1-8
PIN 1
SLOW PULSE
I/P
FAST PULSE
I/P
Unregulated Logger
Supply Output
Regulated 5V Output
Block E
Pin Connection
1 Event/State Input 1
2 Event/State Input 2
3 Event/State Input 3
4 Event/State Input 4
5 Event/State Input 5
6 Event/State Input 6
7 Event/State Input 7
8 Event/State Input 8
9 Ground
10 Alarm Output A
11 Alarm Output B
12 No Connection
13 No Connection
14 No Connection
15 No Connection
16 No Connection
17 No Connection
18 Ground
19 Ground
20 Ground
21 No Connection
22 Fast Pulse Input
23 No Connection
24 Slow Pulse Input
25 No Connection
Negative
