Grasshopper 718 User Manual

09-89
19

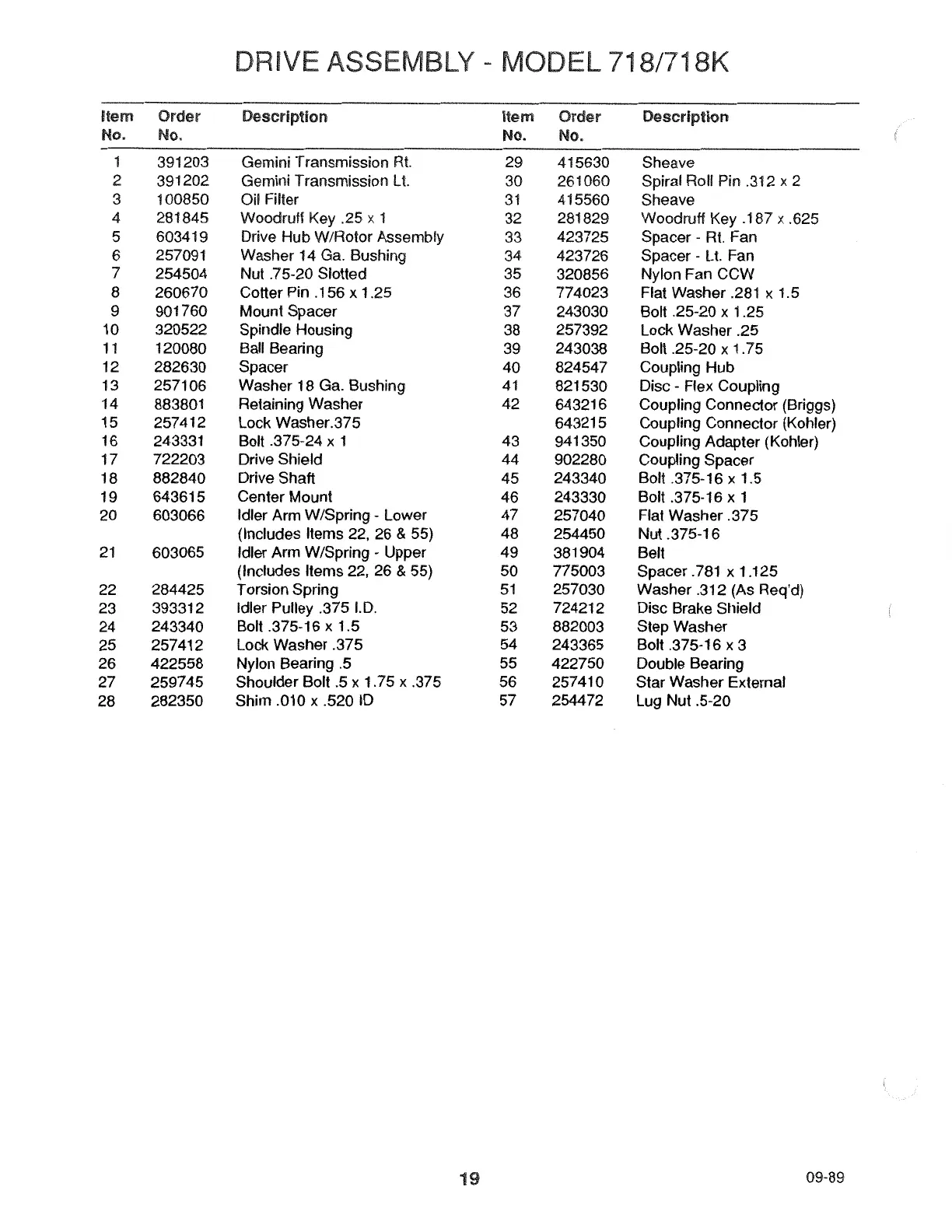

DRIVE ASSEMBLY - MODEL 718/718K
Item
Order
Description Item Order Description
No.
No.
No.
No.
1
391203 Gemini Transmission Rt. 29
415630 Sheave
2
391202 Gemini Transmission Lt.
30 261060 Spiral Roll Pin .312 x 2
3
100850 Oil Filter 31
415560 Sheave
4
281845
Woodruff Key .25 x 1 32
281829 Woodruff Key .187 x .625
5 603419
Drive Hub W/Rotor Assembly
33
423725 Spacer - Rt. Fan
6 257091 Washer 14 Ga. Bushing
34 423726 Spacer - Lt. Fan
7 254504 Nut .75-20 Slotted
35 320856 Nylon Fan CCW
8 260670 Cotter Pin .156 x 1 .25
36
774023
Flat Washer .281 x 1.5
9 901760 Mount Spacer 37
243030 Bolt .25-20 x 1.25
10 320522 Spindle Housing
38 257392 Lock Washer .25
11
120080 Ball Bearing
39 243038 Bolt .25-20 xl. 75
12
282630 Spacer 40 824547
Coupling Hub
13 257106 Washer 18 Ga. Bushing 41
821530
Disc - Flex Coupling
14 883801 Retaining Washer 42
643216
Coupling Connector (Briggs)
15
257412
Lock Washer.375 643215
Coupling Connector (Kohler)
16 243331
Bolt .375-24 x 1 43
941350
Coupling Adapter (Kohler)
17
722203 Drive Shield 44
902280
Coupling Spacer
18 882840 Drive Shaft 45 243340
Bolt .375-16 x 1.5
19
643615 Center Mount
46 243330 Bolt .375-16 x 1
20 603066
Idler Arm W/Spring - lower 47
257040 Flat Washer .375
(Includes Items 22, 26 & 55) 48 254450
Nut .375-16
21 603065
Idler Arm W/Spring - Upper 49
381904 Belt
(Includes Items 22,26 & 55) 50
775003 Spacer .781 x 1.125
22 284425
Torsion Spring 51
257030 Washer .312 (As Req'd)
23
393312 Idler Pulley .375 I.D. 52
724212
Disc Brake Shield
24 243340
Bolt .375-16 x 1.5 53
882003 Step Washer
25
257412 Lock Washer .375
54
243365 Bolt .375-16 x 3
26
422558
Nylon Bearing .5 55 422750
Double Bearing
27
259745
Shoulder Bolt .5 x 1.75 x .375 56 257410
Star Washer External
28 282350
Shim .010 x .520 ID 57 254472
Lug Nut .5-20
