Grasshopper 718 User Manual

12-89
21

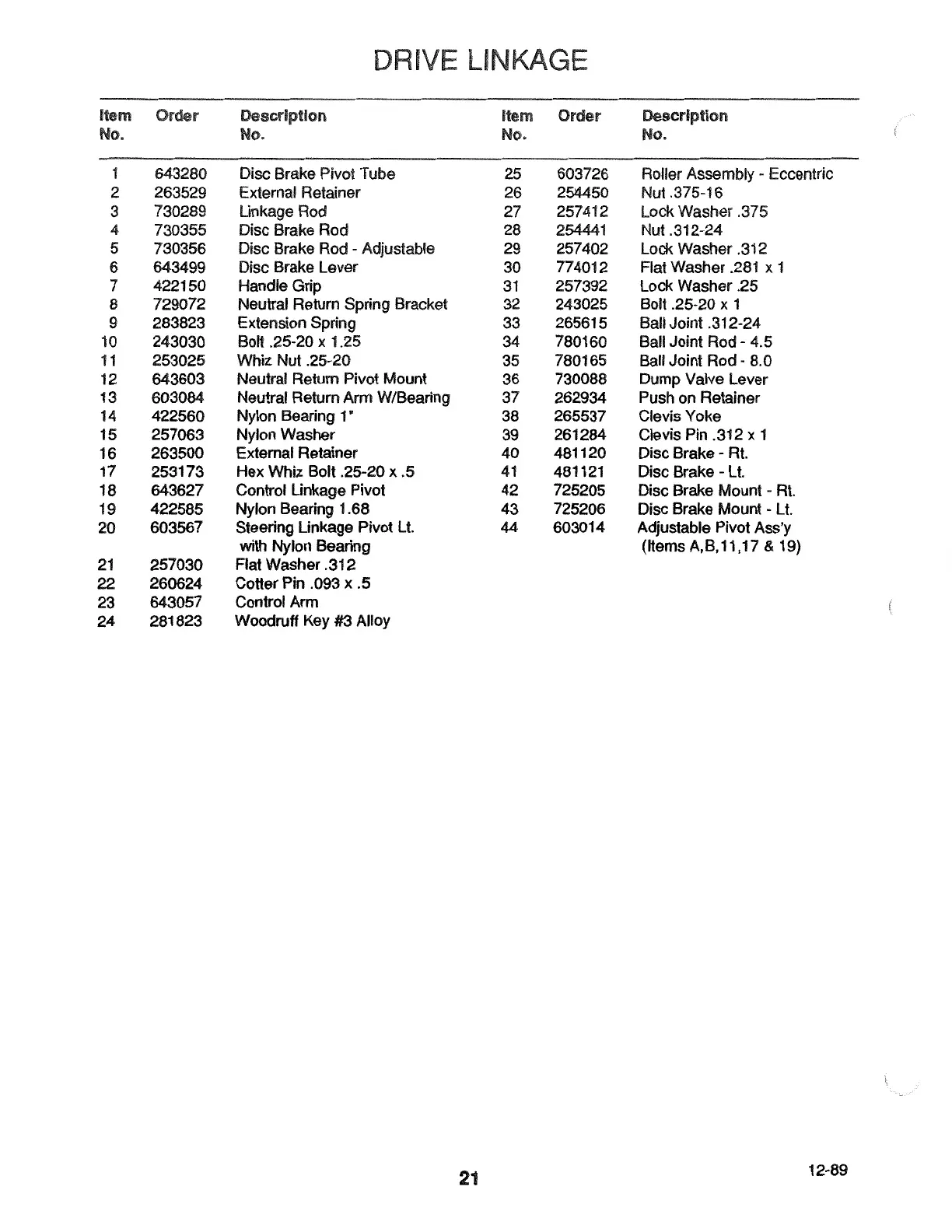

DRIVE LINKAGE
Item
Order Description Item Order Description
No.
No. No. No.
1 643280 Disc Brake Pivot Tube
25 603726 Roller Assembly - Eccentric
2
263529 External Retainer 26 254450 Nut .375-16
3
730289 Linkage Rod
27
257412 Lock Washer .375
4
730355 Disc Brake Rod
28
254441 Nut .312-24
5 730356 Disc Brake Rod - Adjustable 29 257402 Lock Washer .312
6 643499 Disc Brake Lever 30
774012
Flat Washer .281 x 1
7 422150 Handle Grip
31
257392
Lock Washer .25
8 729072 Neutral Return Spring Bracket 32 243025 Bolt .25-20 x 1
9
283823 Extension Spring
33
265615 Ball Joint .312-24
10 243030 Bolt .25-20 x 1.25 34 780160
Ball Joint Rod - 4.5
11
253025
Whiz Nut .25-20
35
780165
Ball Joint Rod - 8.0
12
643603
Neutral Return Pivot Mount
36
730088 Dump Valve Lever
13 603084 Neutral Return Arm W/Bearing 37 262934 Push on Retainer
14 422560 Nylon Bearing 1"
38
265537 Clevis Yoke
15 257063 Nylon Washer
39
261284 Clevis Pin .312 x 1
16 263500
External Retainer 40 481120
Disc Brake - Rt.
17 253173
Hex Whiz Bolt .25-20 x .5 41 481121 Disc Brake - Lt.
18 643627
Control Linkage Pivot 42 725205
Disc Brake Mount - Rt.
19 422585
Nylon Bearing 1.68 43 725206 Disc Brake Mount - Lt.
20 603567
Steering Linkage Pivot Lt. 44 603014
Adjustable Pivot Ass'y
with Nylon Bearing (HemsA,B,11,17 & 19)
21
257030
Flat Washer .312
22
260624
Cotter Pin .093 x.5
23 643057
Control Arm
24 281823 Woodruff Key #3 Alloy
