Grasshopper 718 User Manual

08-89
25

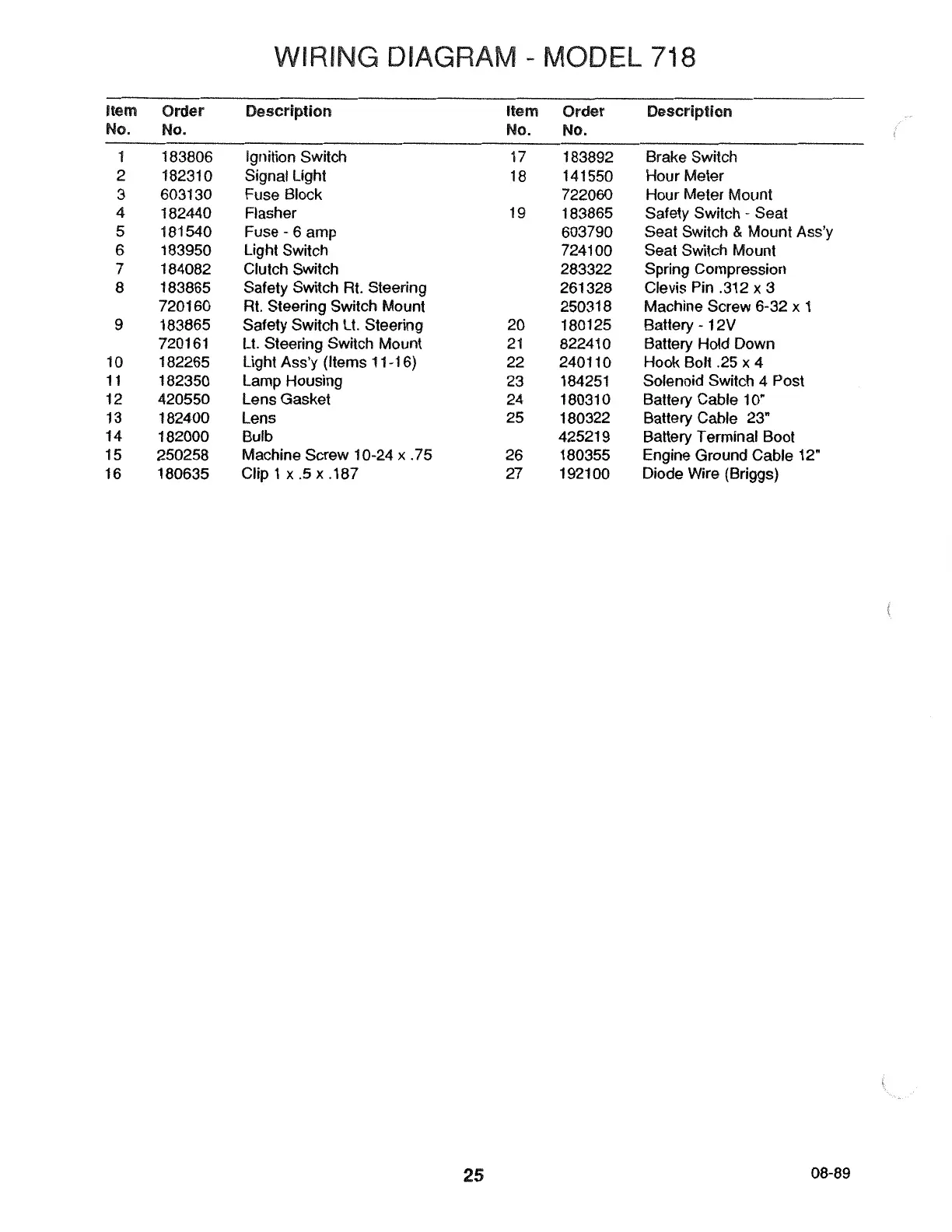

WIRING DIAGRAM - MODEL 718
Item
Order Description Item
Order
Description
No.
No. No.
No.
1 183806 Ignition Switch 17
183892 Brake Switch
2
182310 Signal Light 18
141550 Hour Meter
3 603130 Fuse Block 722060 Hour Meter Mount
4
182440
Flasher
19
183865
Safety Switch - Seat
5 181540 Fuse - 6 amp
603790
Seat Switch & Mount Ass'y
6 183950 Light Switch 724100 Seat Switch Mount
7 184082
Clutch Switch 283322 Spring Compression
8 183865 Safety Switch Rt. Steering
261328
Clevis Pin .312 x 3
720160
Rt. Steering Switch Mount 250318 Machine Screw 6-32 x 1
9 183865 Safety Switch Lt. Steering 20 180125 Battery - 12V
720161
Lt. Steering Switch Mount
21
822410 Battery Hold Down
10
182265 Light Ass'y (Items 11-16) 22 240110
Hook Bolt .25 x 4
11
182350 Lamp Housing 23 184251 Solenoid Switch 4 Post
12 420550 Lens Gasket 24
180310 Battery Cable 10"
13
182400 Lens 25 180322 Battery Cable 23"
14 182000 Bulb 425219
Battery Terminal Boot
15
250258 Machine Screw 10-24 x .75
26 180355
Engine Ground Cable 12"
16 180635 Clip 1 x .5 x .187
27
192100 Diode Wire (Briggs)
