Grasslin QEG-2 - Installation and Mounting; Installation Safety and General Information; Housing and Wall Mounting Procedures; Electrical Wiring Diagram

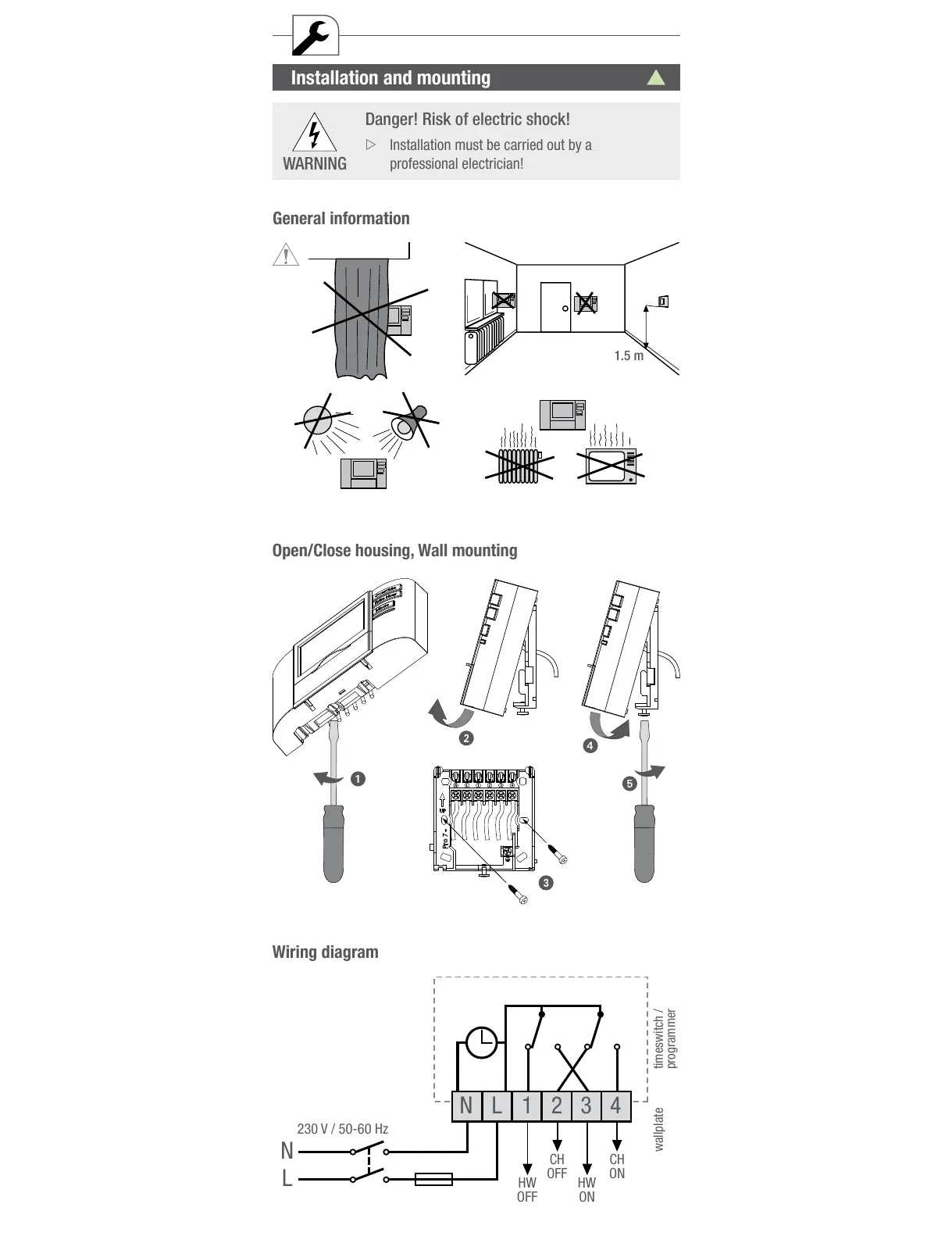

Installation and mounting
Open/Close housing, Wall mounting
Wiring diagram
General information
Danger! Risk of electric shock!

Installation must be carried out by a
professional electrician!
WARNING
N
L
1
2
3
4
N
CH
OFF
CH
ON
HW
ON
HW
OFF
230 V / 50-60 Hz
timeswitch / programmer
wallplate
L
1.5 m
