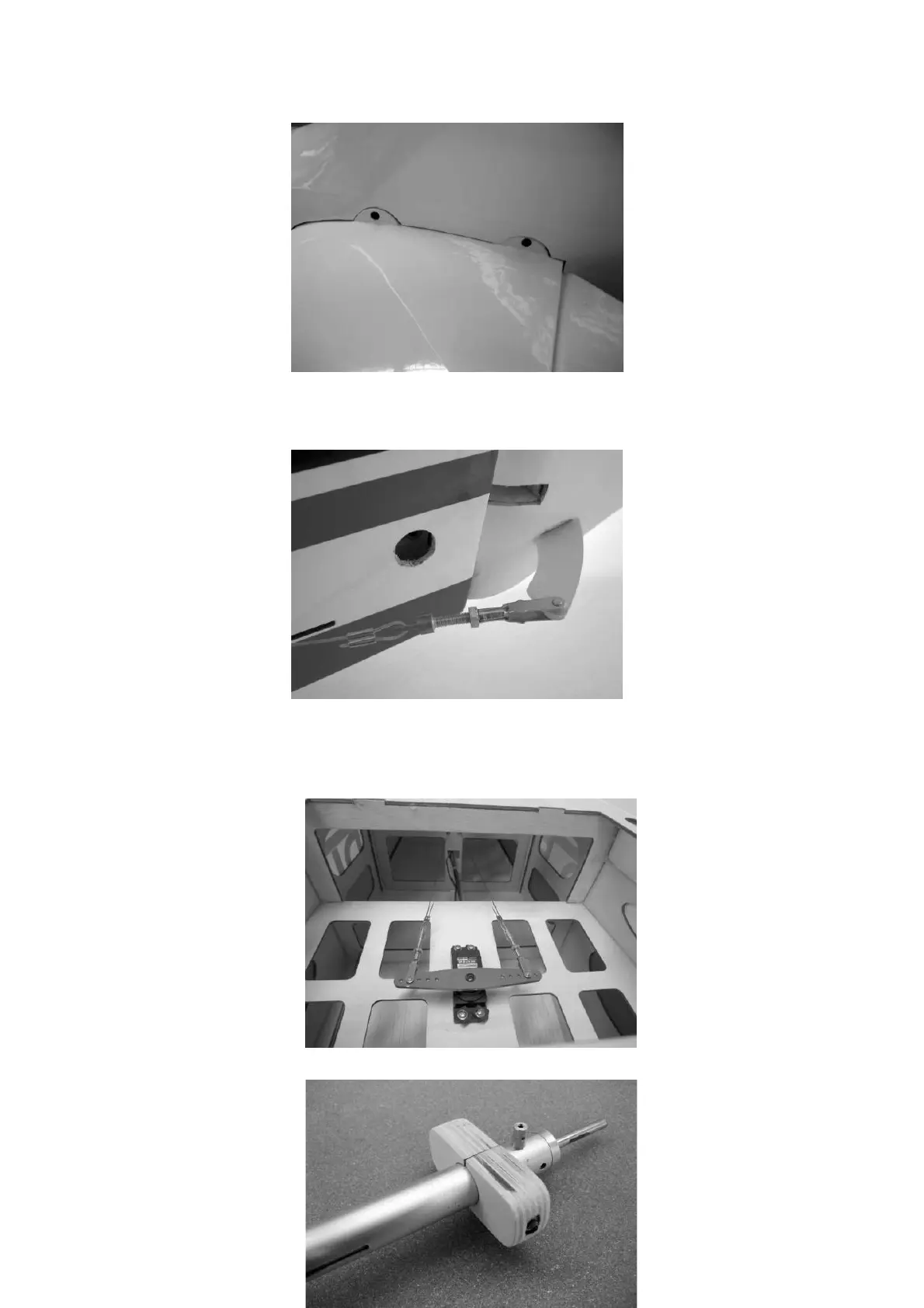

Now the rudder is fastened to the horizontal stabiliser using steel wire. Assemble the
pull cables as shown in the photo.
Then attach the rudder servo to the servo plate at the front of the fuselage.
As shown in the photo, install the pull cables to the servo lever and adjust them so
that the rudder is in the centre position when the servo is in the centre position.
As shown in the photo, fix the fairing support block to the nose gear using an M4
Allen screw and nut.
