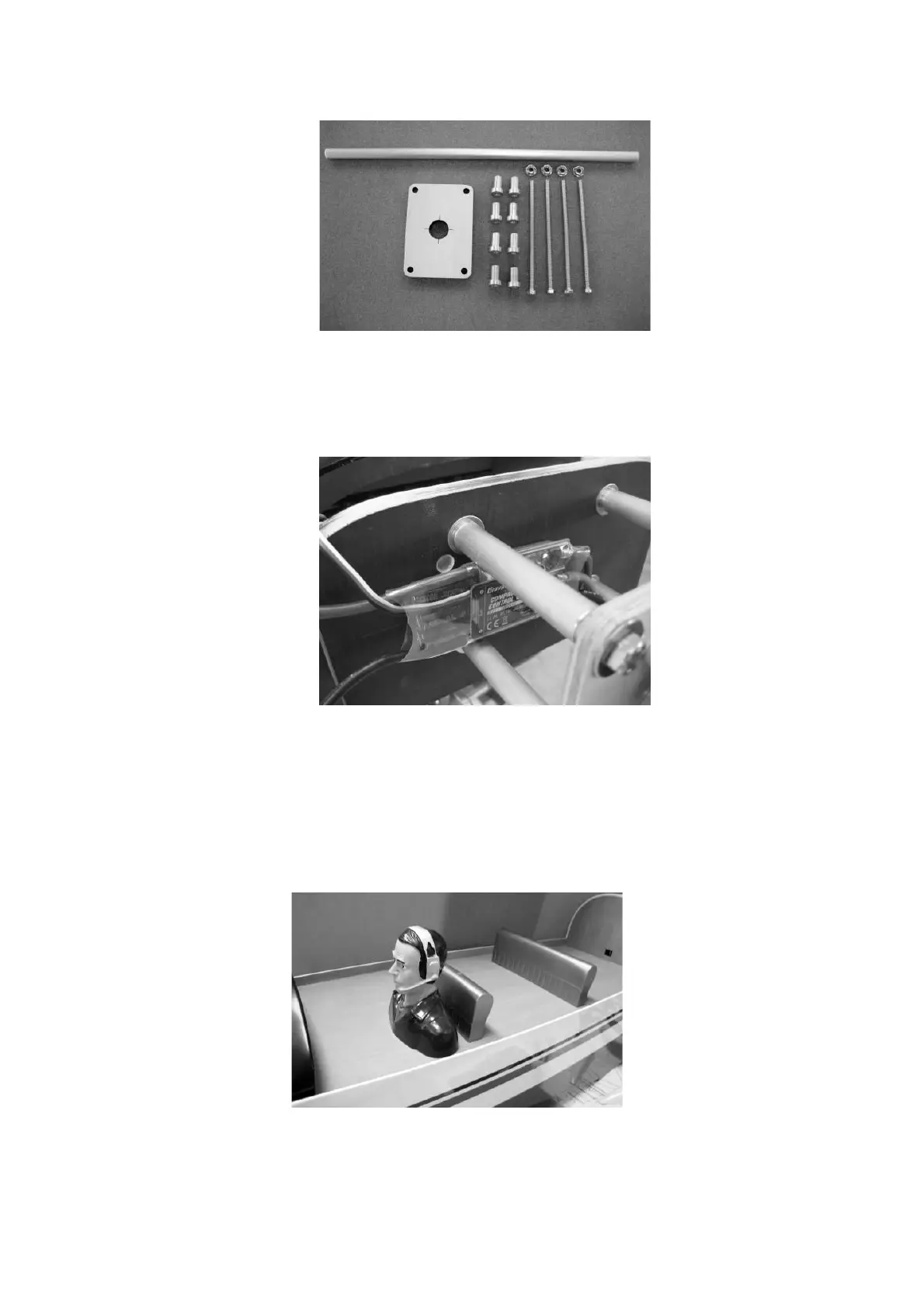

The distance between bulkhead and spinner ground plate should be about 160 mm.
Accordingly, four pieces of equal length must be cut from the aluminium pipe.
As shown in the photo, the motor then rests upon four stilts. The four hexagonal bolts
must be cut off flush with the nuts.
Depending on the electric motor used, mark the fastening points on the motor
bulkhead and attach the electric motor.
The speed controller for the electric motor is fastened to the bulkhead as shown in
the photo.
Cockpit canopy
Glue the seat backs and pilot figure in the proper positions as shown in the following
photos.
