Throttle stick
GRAUPNER GmbH & Co. KG
D-73230 KIRCHHEIM/TECK GERMANY
Liability for printing errors excluded.
We reserve the right to introduce modifications. PN.KC-01
Preparing the speed control for use:
Set the throttle servo travel to 100% at the transmitter,
set the trim to neutral, and connect the speed control
to the receiver. Ensure that the speed control switch is
set to “OFF” before you connect the battery to it.
Switch on the transmitter, and only then the speed
control.
Throttle stick
Full
Throttle
Programming the speed control:
1. Set the throttle reverse switch to
the “normal” position.
2. Move the throttle stick to “neutral”,
wait (about 1 sec.) until the green
LED is lighting. Thus the neutral
position has been saved.
3. Move the throttle lever to the full-
throttle position. The red LED lights
up to indicate the full-throttle
position.
4. Now move the throttle stick to the
full brake / full reverse position. The
red and green LEDs light up to in-
dicate that it the full brake / full
reverse position.
5. Now return the throttle stick to the
neutral position.
Specification
Operating voltage: 7,2 ... 12 V (6-10 cells)
Functions: forward / neutral / brake /
reverse
Frequency: 1 kHz
Peak current: 200 A
Continuous current: 40 A
BEC: 5 V/1,5 A
Recommended motor: min. 12 turns
Temperature cut-off: yes
Dimensions approx.: 42 x 38 x 16 mm
Weight: 65 g

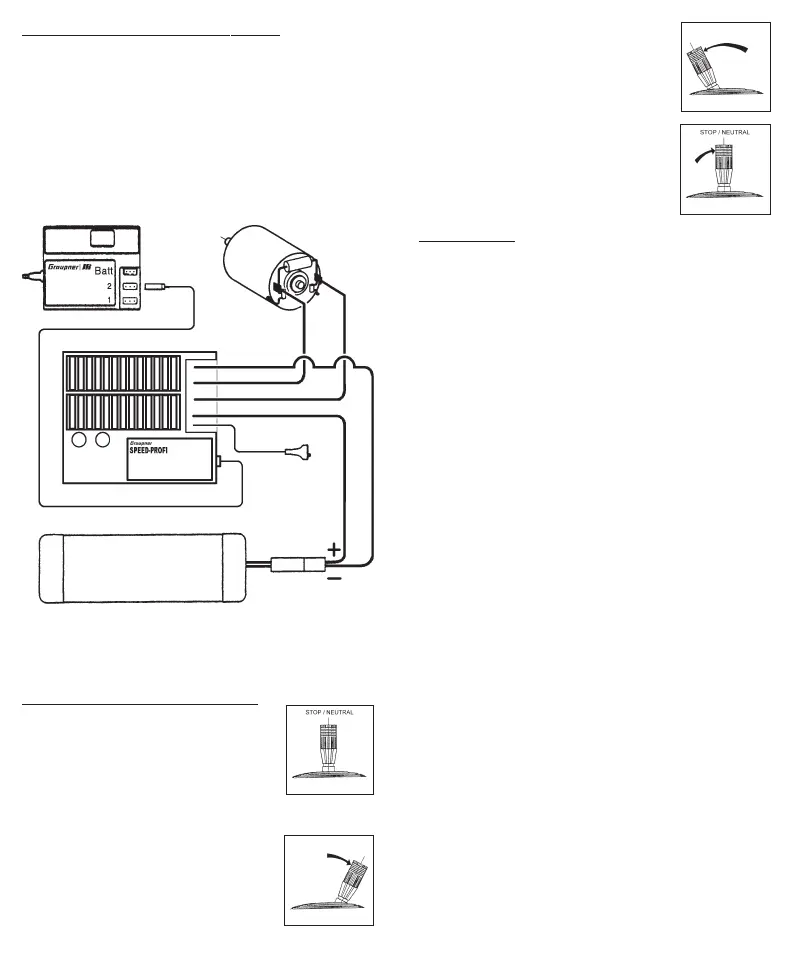

Throttle stick
Throttle stick
Full
reverse
Receiver
Motor
Battery
On/Off
Switch
black=batt.-
blue
=
motor -
white = motor +
red = battery +
