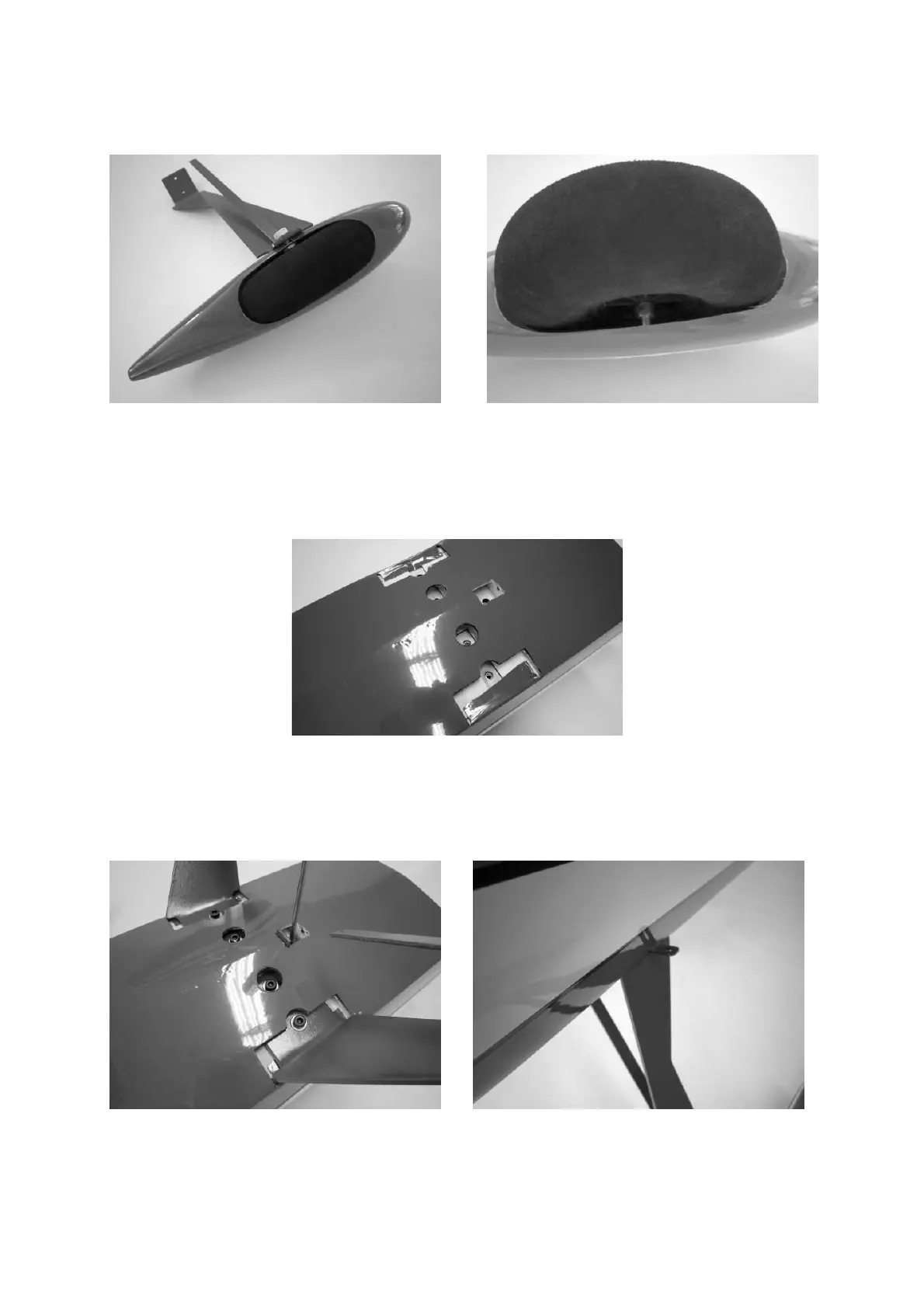

Install the undercarriage struts as shown.
The wheel is kept central in the wheel spat opening by means of two collets. Apply
thread-lock fluid to all the screwed joints to prevent them working loose.
Locate the undercarriage screw-holes in the bottom of the fuselage with your finger-
tips, and remove the covering film over them using the tip of a hot soldering iron.
At this point the two undercarriage legs, the tension spring bracket and the wing strut
brackets can all be screwed to the underside of the fuselage.
