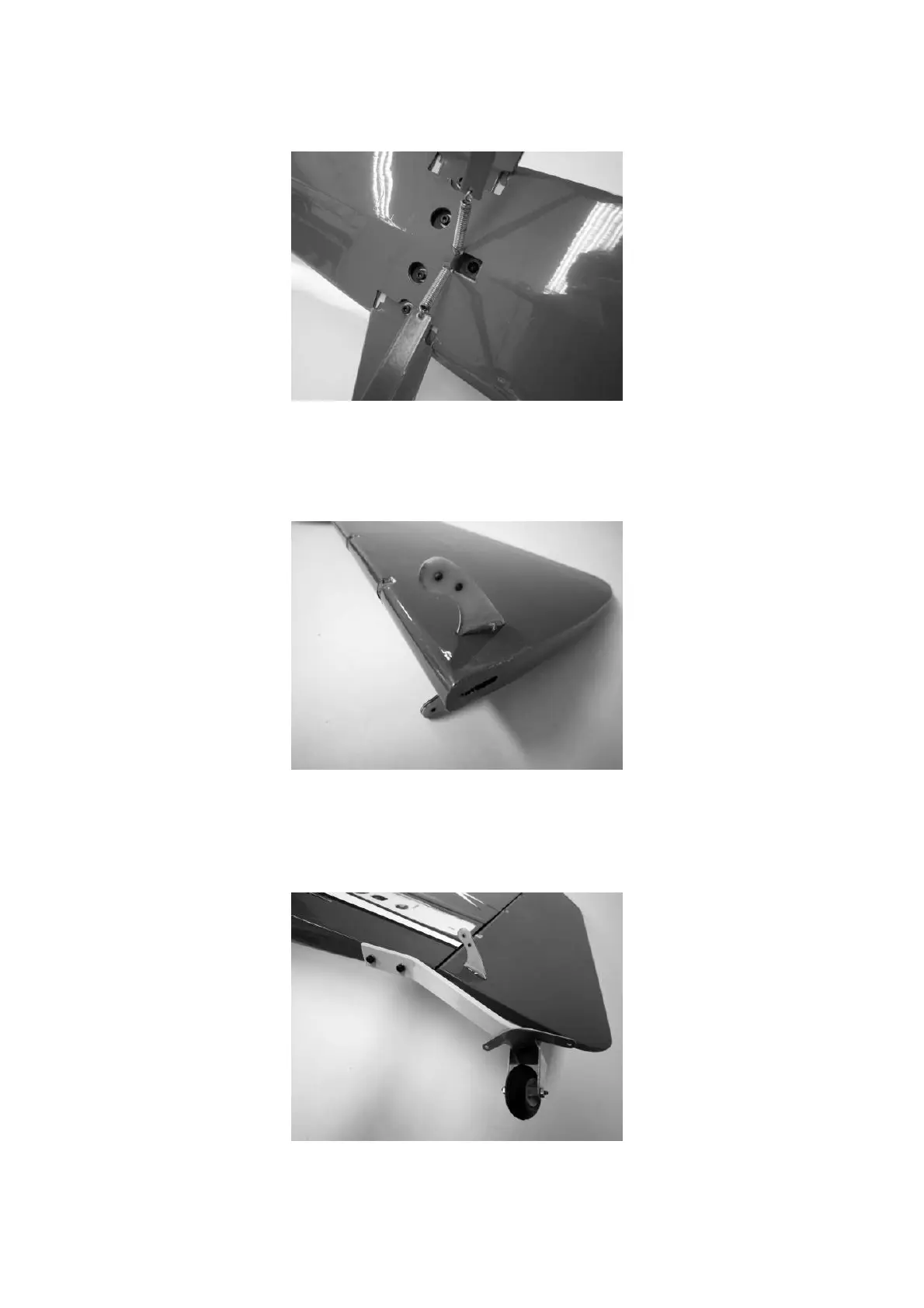

Connect the two tension springs as shown in the photo.
Use your fingertips to locate the slots in the rudder for the horn, and melt the film
over them using the tip of a hot soldering iron. Glue the GRP horn in the rudder,
taking care to centre it, i.e. it should project by an equal length on both sides.
Attach the rudder to the fuselage by slipping the pivot rod through the hinge lugs.
Attach the tailwheel unit to the underside of the fuselage using the two socket-head
cap screws supplied.
