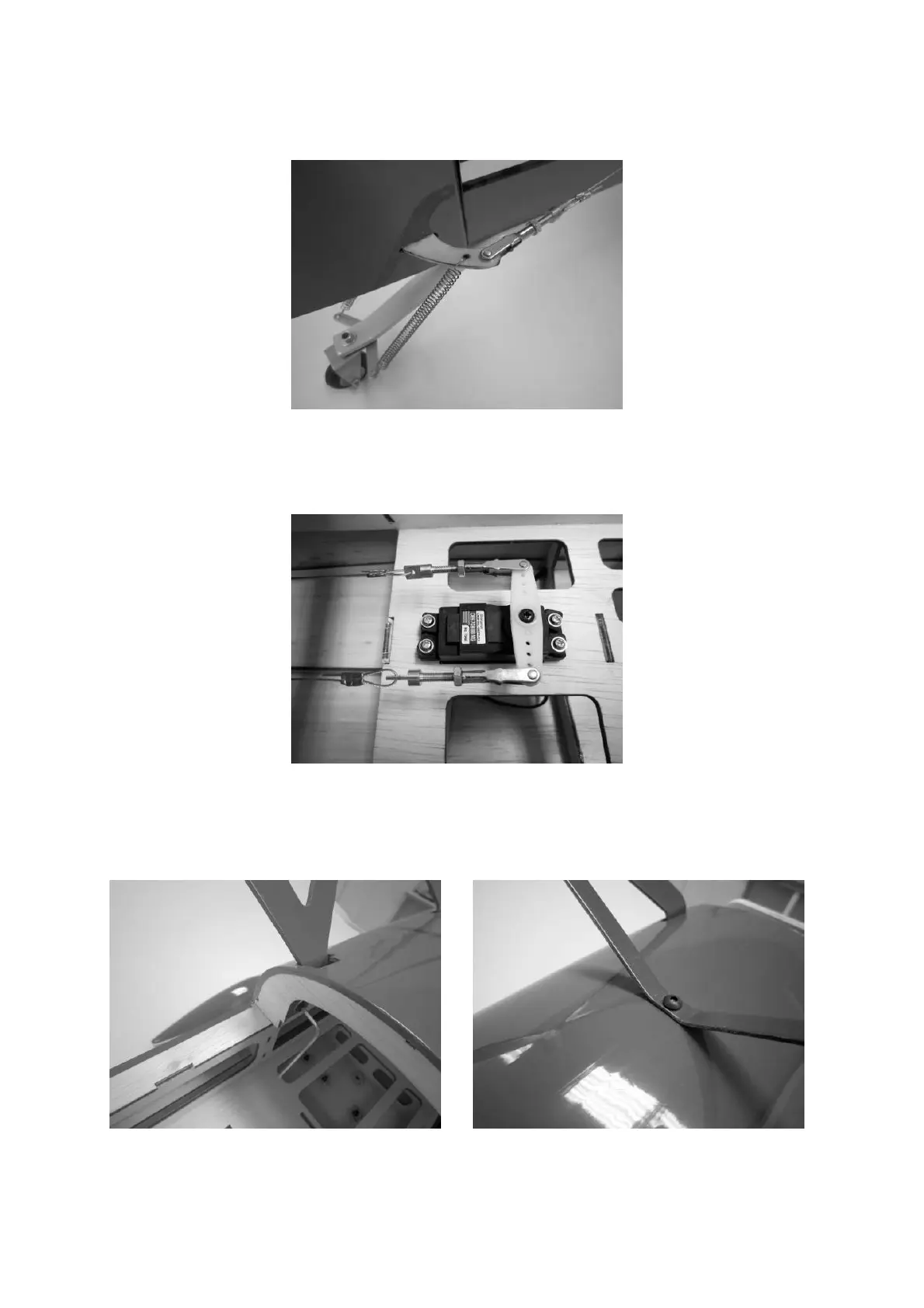

Install the pull-cable rudder steering linkage as shown in the photo. The two tension
springs cause the tailwheel to follow the movements of the rudder.
Press the rubber grommets and tubular metal spacers into the mounting lugs of the
rudder servo, as described at the start of the instructions, and mount the servo in the
servo plate. Connect the pull-cables to the servo output arm, and adjust the clevises
on the threaded couplers to place the steel cables under light tension.
The next step is to install the cabane on the fuselage: use your fingertips to locate
the openings and holes in the fuselage turtle deck, and remove the covering film over
them using the tip of a hot soldering iron. Mount the cabane on the fuselage as
shown in the photos below.
