GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY
Modifications reserved. No liability for printing errors 11/2011
13
Apply UHU schraubensicher (thread-lock fluid) to all the screwed joints to prevent
them working loose.

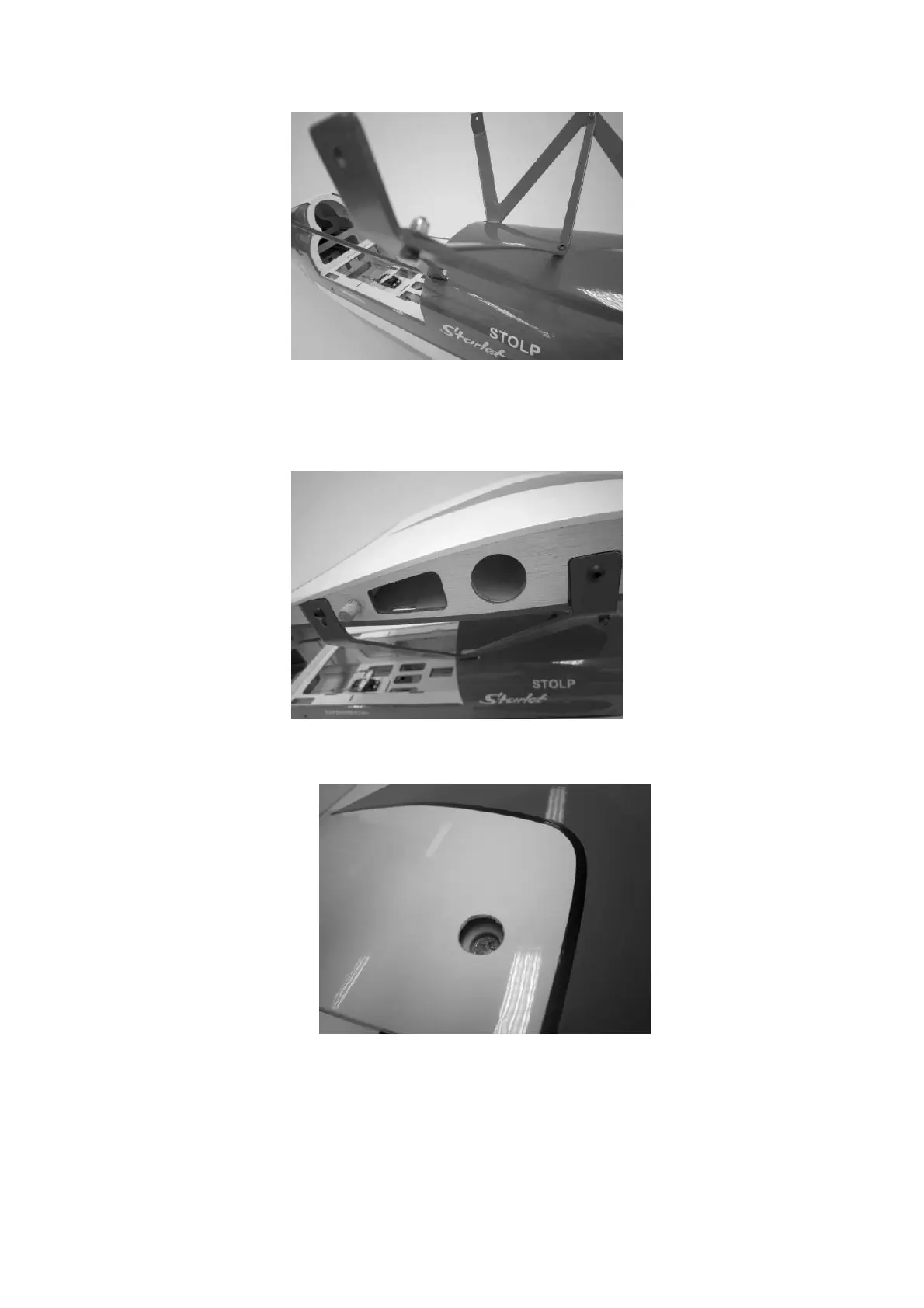

The wing centre section can now be screwed to the cabane.
Locate the holes in the top of the wing centre section for the wing retaining screws,
and remove the film over them with a hot soldering iron.
The fueltank
Start by completing the stopper assembly, as shown in the photo below; take care to
cut the fuel line to the clunk pick-up to the correct length: it must be able to move
freely inside the tank when the stopper is in place, without binding or jamming.
