GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY
Modifications reserved. No liability for printing errors 11/2011
17

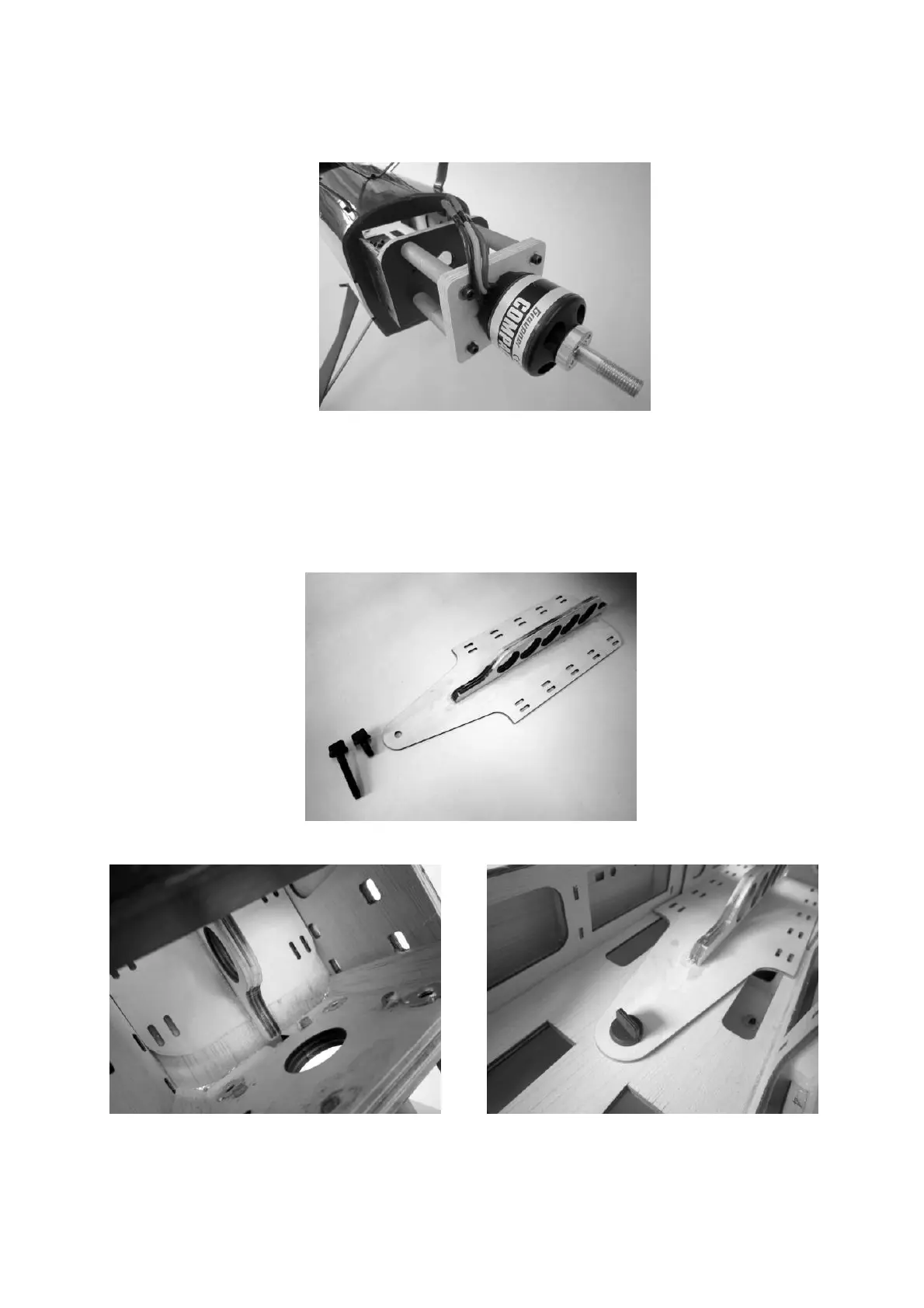

The motor assembly can now be mounted on the firewall, as shown in the photo.
For the electric version no additional openings are required in the cowl. The moulding
is fixed to the fuselage as described earlier for the petrol-engined version.
The flight batteries are installed in the fuselage using the battery tray provided: the
tray’s front locating lug fits in the slot in the firewall, and at the rear it is secured by a
plastic screw. Shorten the plastic screw as shown in the picture.
