GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY
Modifications reserved. No liability for printing errors 11/2011
18

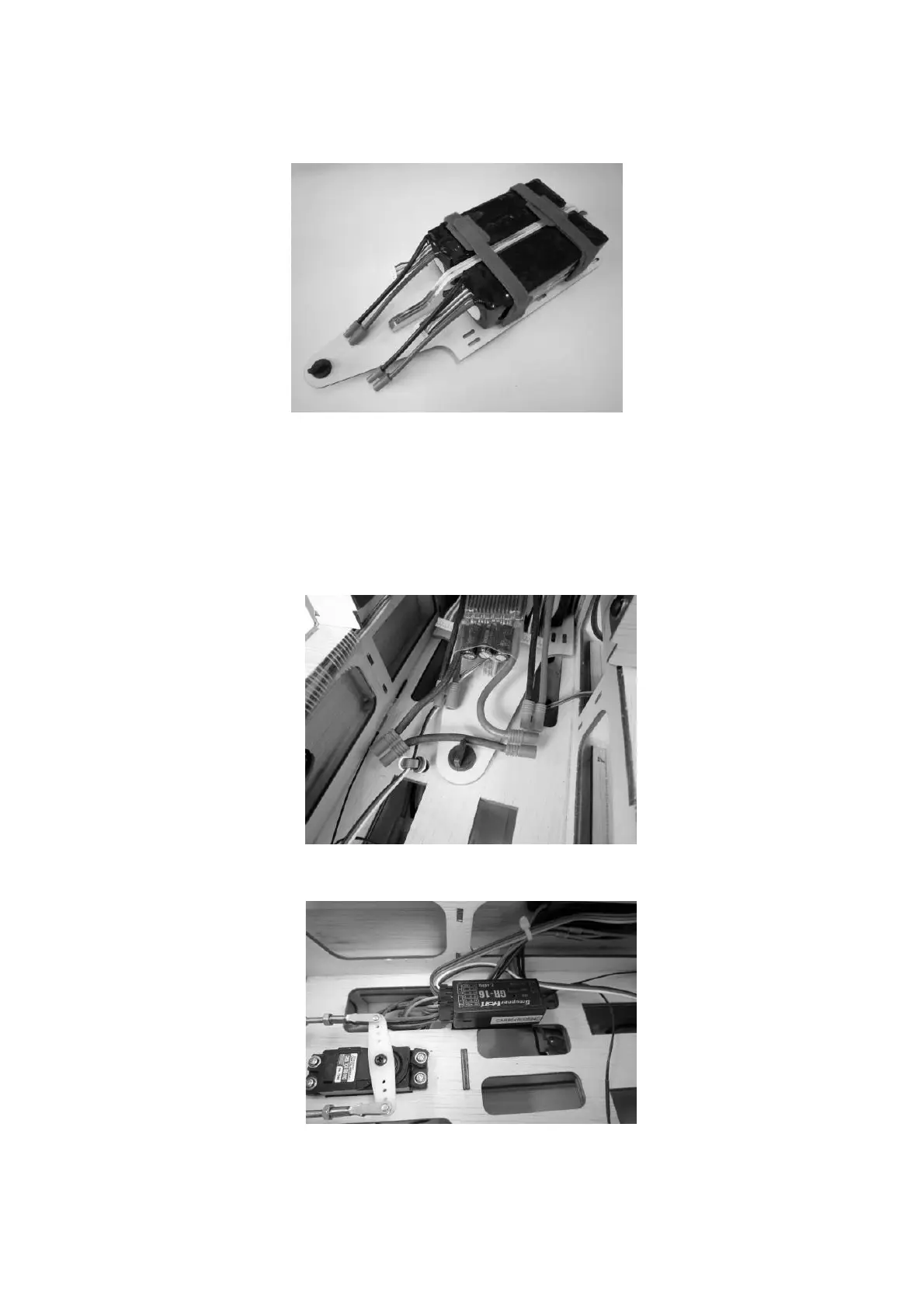

The two flight batteries can be attached to the battery plate using cable-ties.
The receiver batteries should be installed in the fuselage under the flight batteries,
and must be secured properly to prevent them shifting in flight.
When the model is flying, the speed controller simply rests on top of the two flight
batteries. Slide the battery tray into the fuselage from the cockpit opening, engage
the front locating lug in the slot in the firewall, then tighten the plastic screw to
prevent it shifting in flight.
The receiver can be attached to the servo plate using Velcro (hook-and-loop) tape.
Deploy the servo leads under the servo plate, and up to the receiver’s socket row.
