GRAUPNER GmbH & Co. KG D-73230 KIRCHHEIM/TECK GERMANY
Modifications reserved. No liability for printing errors 11/2011
5

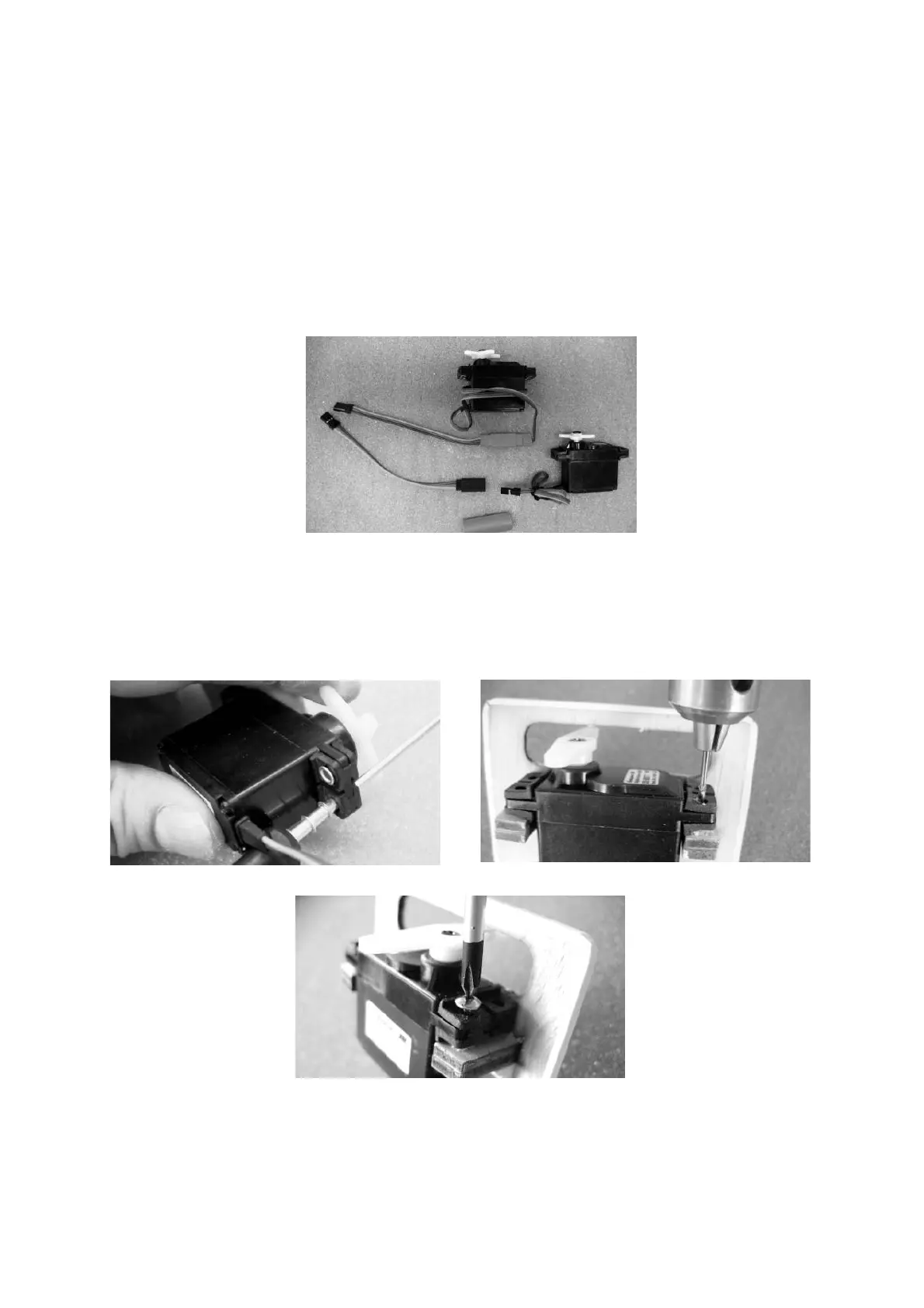

Extend the servo leads using the appropriate extension leads, and ensure that they
cannot slip apart, e.g. by fitting a heat-shrink sleeve or gluing with a drop of cyano.
Connect the servos to the receiver, set them to centre from the transmitter, and fit the
output arms on them.
Fix the servos to the support blocks using the retaining screws supplied with them:
first push the rubber grommets into the servo mounting lugs, followed by the brass
tubular spacers, with the flange on the underside. Fitting the spacers on a suitable
screwdriver first makes them easier to fit. Drill 1.5 mm Ø pilot-holes in the support
blocks, using the metal spacers as a guide, then fit the servo retaining screws as
shown.
The servo leads can now be pulled through the tailplane panels using a length of
thread: tie the thread to the servo lead just behind the connector, then pull it through
until it appears at the root rib.
