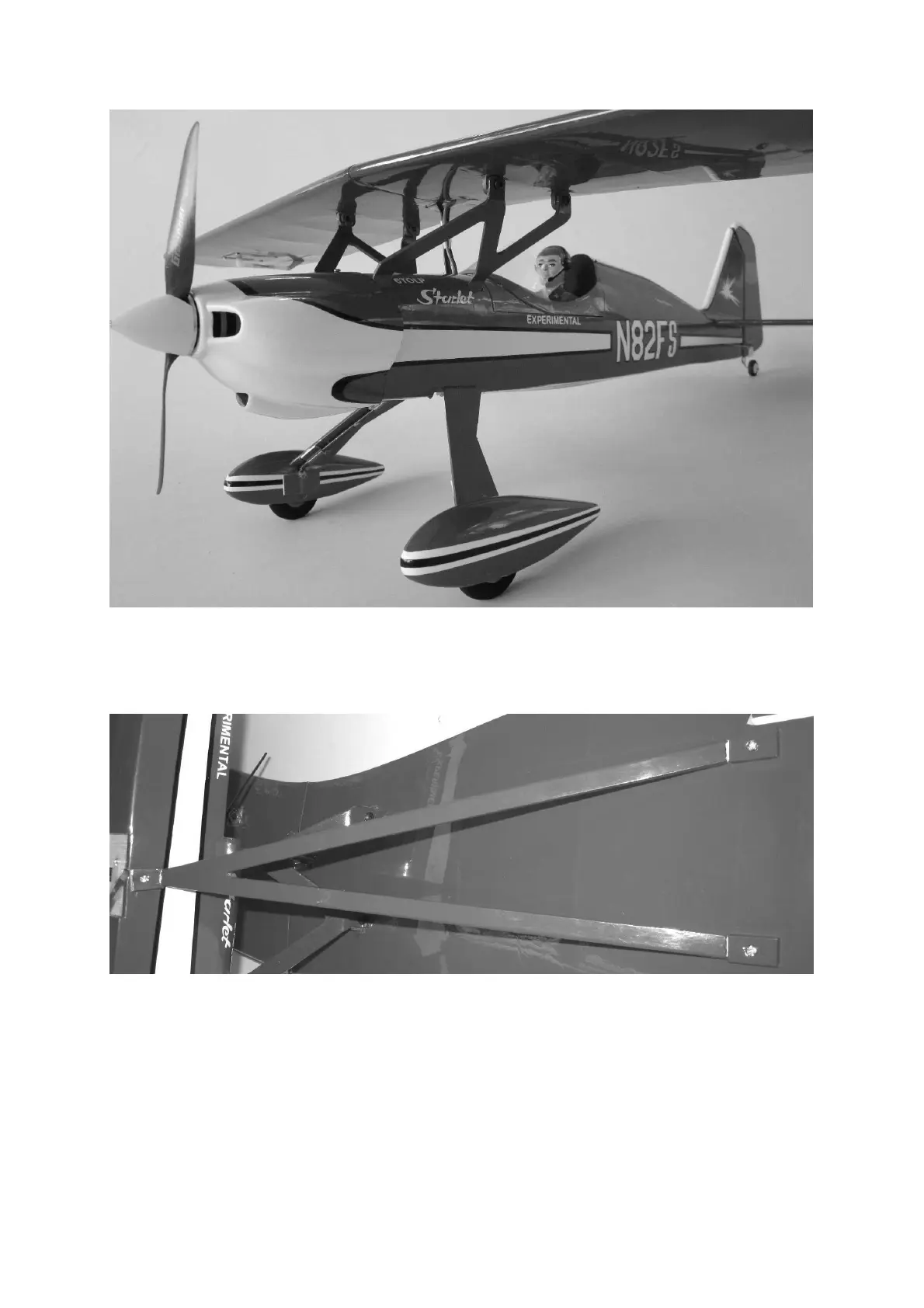

The picture shows the completed undercarriage and the wing, secured to the cabane
using four M3 x 6 pan-head screws. The pilot and windscreen have also been in-
stalled in this shot.
If you wish, you can screw the wing struts in place at this point, as shown in the
photo; these parts are only decorative, and are not required for airframe strength.
Please note that the struts are handed, i.e. the left and right struts are different.
Installing the HoTT receiver and the LiPo battery
The first step is to connect the servo leads to the receiver; we recommend the fol-
lowing socket sequence: socket 2: left aileron servo; socket 3: elevator servo; socket
4: rudder servo, socket 5: right aileron servo; socket 6: speed controller. It is a good
