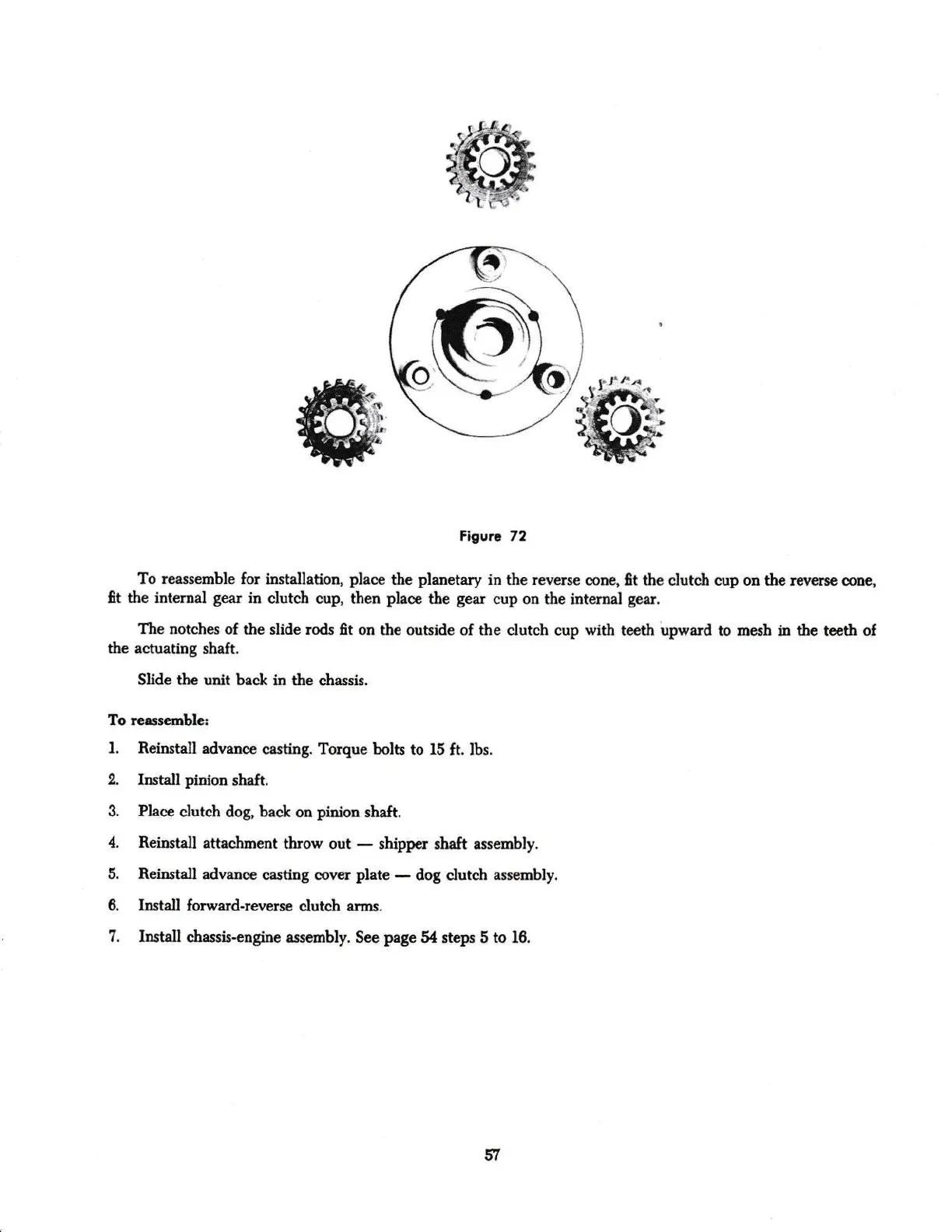

Figvtc
72
To :eassemble for
installation,
place
the
planetary
in the reverse
eone, fft the
clutch cup on the reverse
cone,
fit
the
internal
gear
in
clutch cup, then
place
the
gear
cup on the
internal
gear.
The
notches ol
the slide rods
lt on the outside of
the clutch cup
with
teeth
lpward to mesh in
the
teeth of
the acluating
shaft.
Slide the unit back
i:: the chassis.
?o reassemble:
1. Reinstall
advance
casting. Torque bolts
to
15
ft. Ibs.
2. Install
pinion
shaft.
S.
?lace
clutch dog, baek
on
pinion
shaft,
4. Seinstall
attachment
throw
out
-
shipper shaft assembly.
5.
Reinstall
advarce
easting cover
plate
-
dog clutch
assembly.
6. Install
forward-reverse
clutch arms.
7.
Install chassis-engine
assembly.
See
page
54 steps 5
to
16.
