Gravely 915262 - Assemble Steering Levers

EN - 11
2. Secure negative battery cable to the
negative battery terminal using hardware
removed in
step 1. See Figure 10.
ASSEMBLE STEERING LEVERS
1. Remove upper hardware from steering
lever and loosen lower hardware. Retain
hardware for reinstallation.
See
Figure 11.
2. Place steering lever in the upright
position and adjust lever height.
See
Figure 12.
• Use upper and middle holes for highest
lever position.
• Use middle and lower holes for lowest
lever position.
3. Secure lever to upper control arm with
hardware from step 1. Do not fully tighten.
4. Repeat steps 1 – 3 for other steering
lever.
5. Rotate steering levers outward and return
seat to operating position.
6. Align levers. See Adjust Steering Levers
on page 25. See Figure 13.
7. Fully tighten hardware.

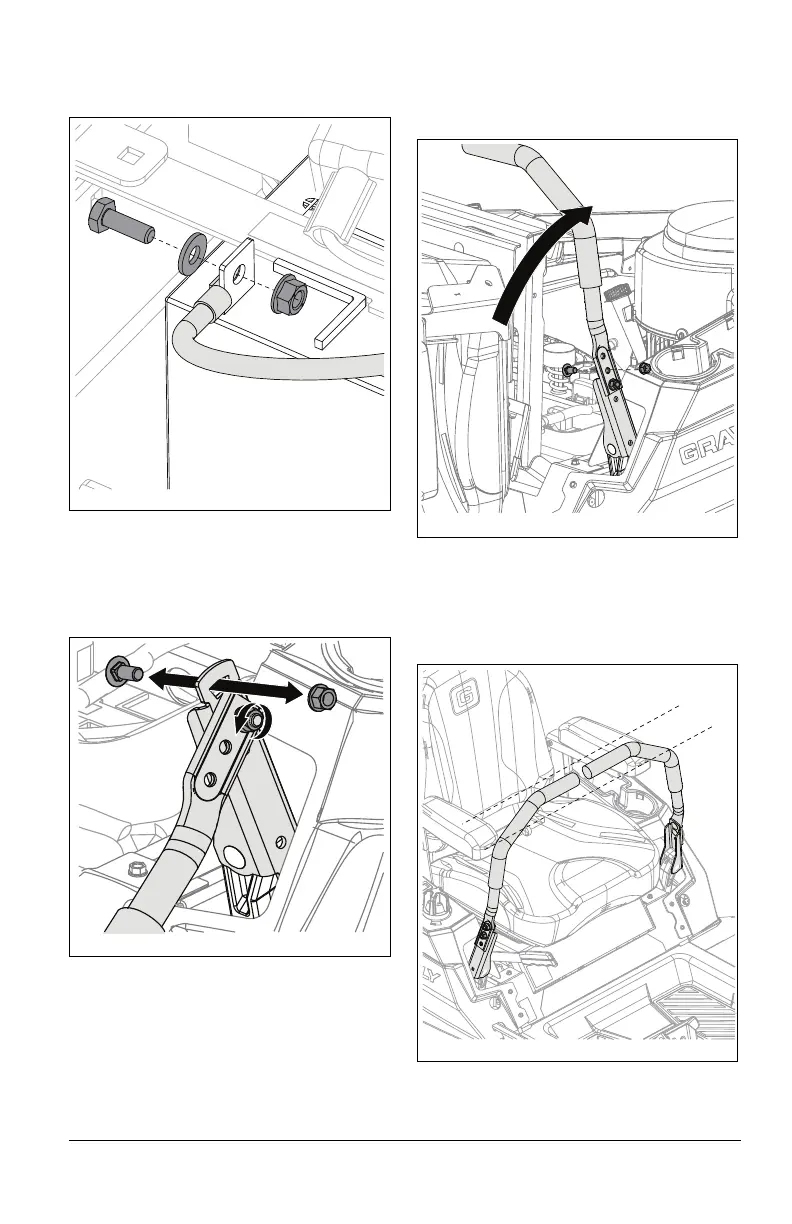

Figure 10
Figure 11
Figure 12
Figure 13
