EN - 12
INSTALL DECK LIFT PEDAL
1. Remove hardware securing deck lift
pedal to unit and remove pedal.

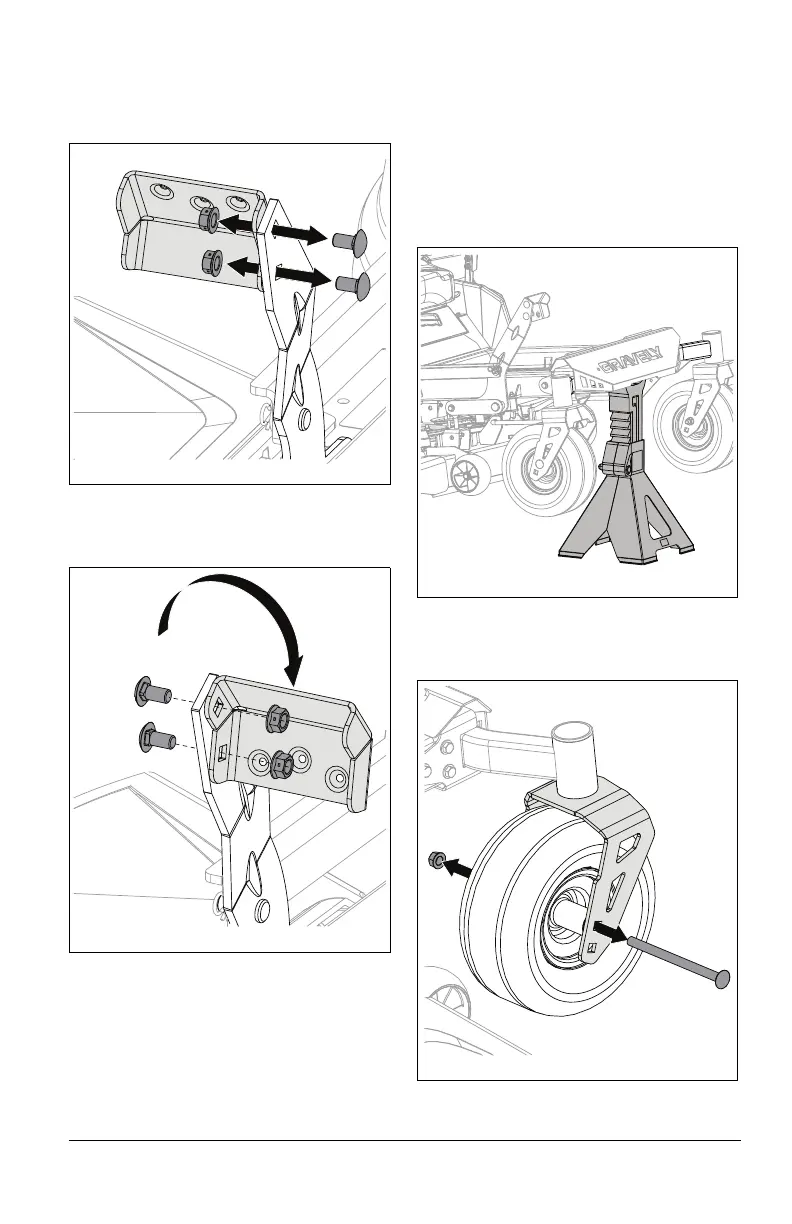

See
Figure 14.
2. Rotate pedal as shown in Figure 15 and
secure to unit with hardware removed in
step
1.
ADJUST CASTER WHEEL
HEIGHT
1. Engage parking brake. Lift front of unit
and position suitable jack stand or
support under front of unit.
See Figure 16.
IMPORTANT: ALWAYS chock wheels and
know all jack stands are strong and secure
and will hold weight of unit during
maintenance.
2. Remove hardware retaining front wheel
assembly. Retain hardware for
reinstallation.
See Figure 17.
