Gravely 991156 - Position ROPS

EN - 11
11. Rotate ROPS to operating position and
secure with lock pins. See Position ROPS
on page 16.

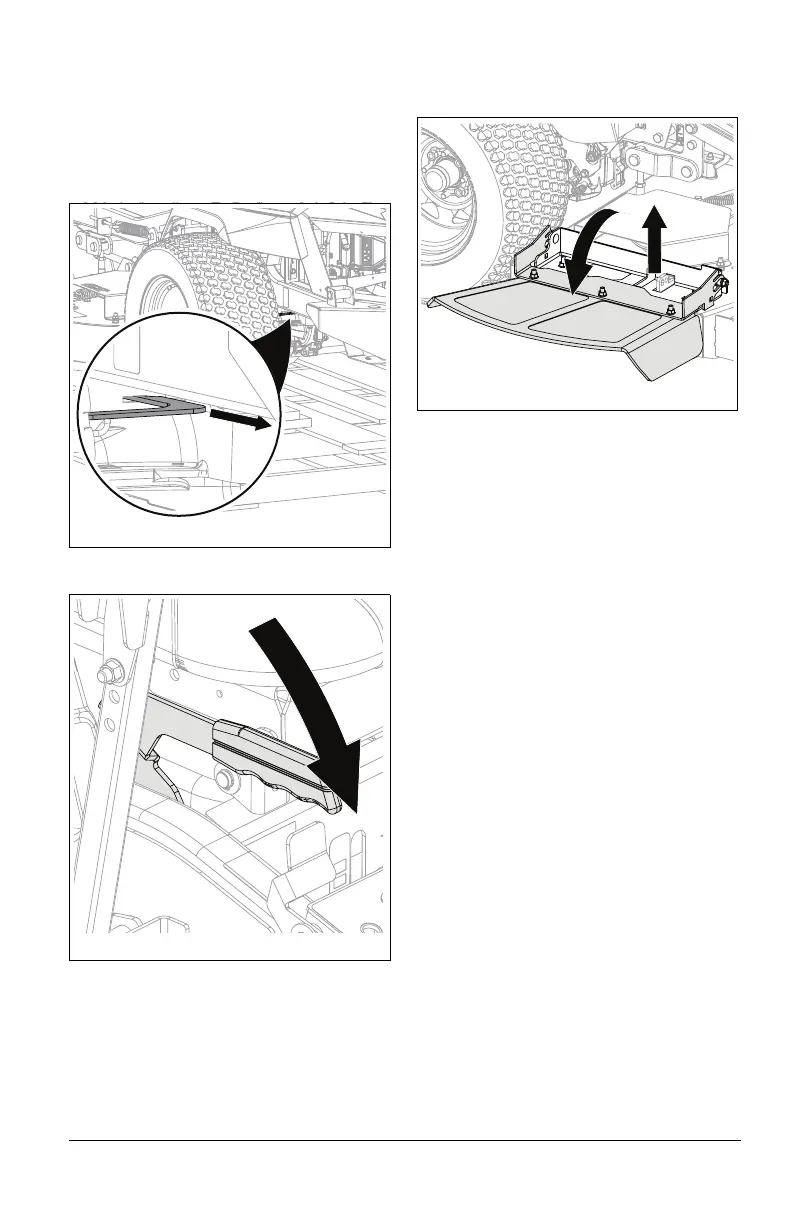

12. Pull transaxle bypass levers out to
disengage transaxles. See Figure 7.
IMPORTANT: Be sure to pull bypass levers
out on each side of unit.
13. Release parking brake. See Figure 8.
14. Push unit off crate.
15. Engage parking brake.
16. Lift discharge chute up slightly and rotate
down into operating position. See
Figure 9.
17. Push transaxle bypass levers in to
engage transaxles.
18. Adjust steering levers. See Adjust
Steering Levers on page 25.
Figure 7
Figure 8
Figure 9
