GB - 39
Small branches and other similar debris can
get onto the top of the deck, into the pulleys,
which may cause the belt(s) to break or come
off the pulleys. Make sure the area to be
mowed is cleared of this debris, and make
sure all belt guards are in place, before
mowing.
To guarantee long belt life, always use
genuine Gravely belts.
Drive Belt Removal and Installation
1. With the deck in the transport position,
raise the floor pan. To disengage the
drive belt, latch the tension arm in its
deck bracket. Roll the drive belt off the
idler pulley.
2. Install a new drive belt, making sure it is
routed according to the decal on the
bottom of the floor pan, see figure 32.
Unlock the belt tension arm so the belt is
tensioned and ready for operation.
3. Lower the floor pan.
Deck Belt Removal and Installation
1. Disconnect the drive belt according to
Drive Belt Removal and Installation
instructions.
2. Remove the 3/8-16 x 2-1/2" bolt and 3/8-
16" locknut from under the pulley
standoff arm. Remove the arm, making
sure the pivot bushings do not fall out.
3. Release tension on the deck belt by
backing off and releasing the belt
tension rod.
4. Remove both belt shields and remove
the deck belt.
5. Install a new deck belt, routed according
to instructions found on the decal on the
bottom of the floor plate.
WARNING: Most service work
requires the engine to be shut
OFF. To prevent injury while
working on the mower, remove
the ignition key and disconnect
the negative (-) cable from the
battery.

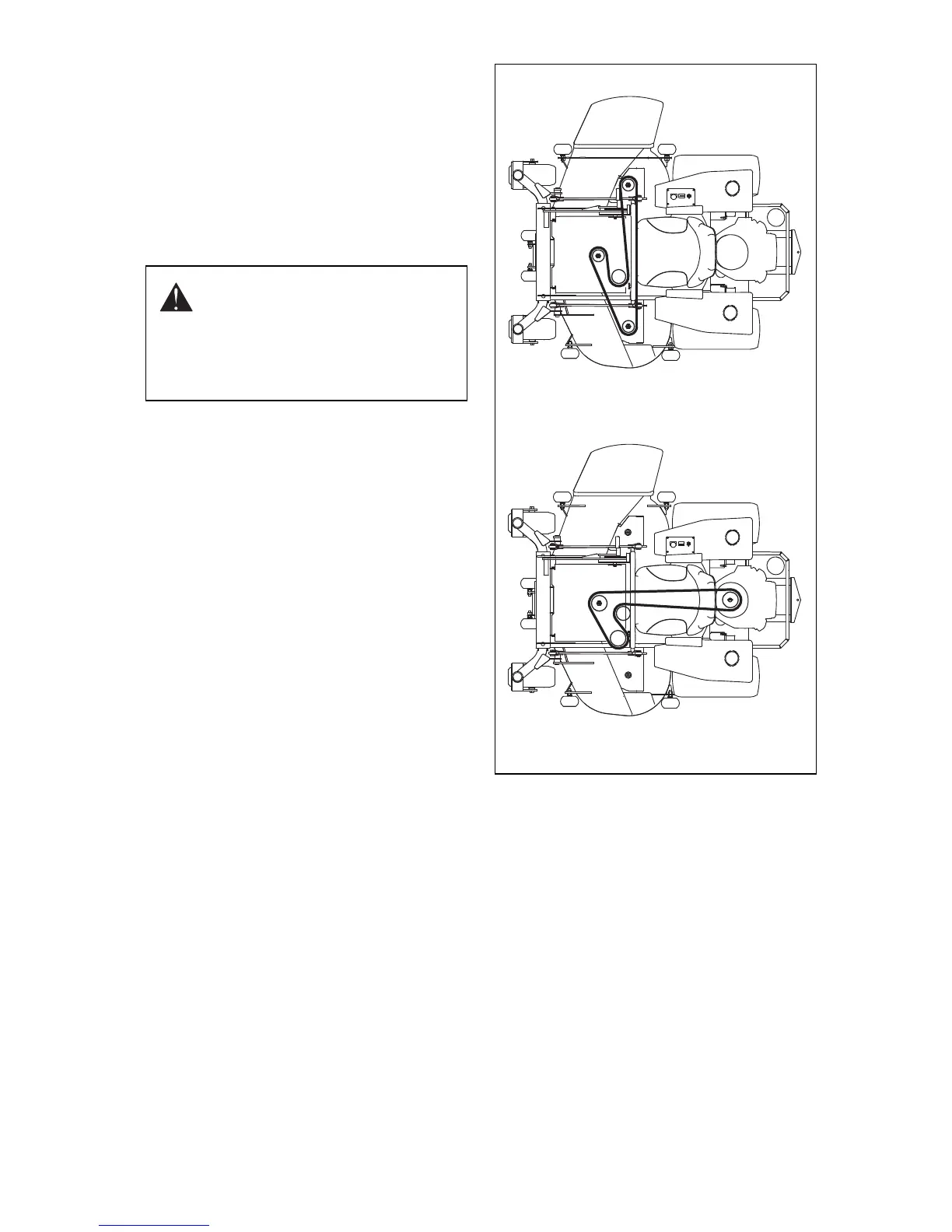

Figure 32
Belt Routing
Deck Belt
Adjust Spring Tension Length to 5-9/16"
End to End
Deck Drive Belt
To Next Page
