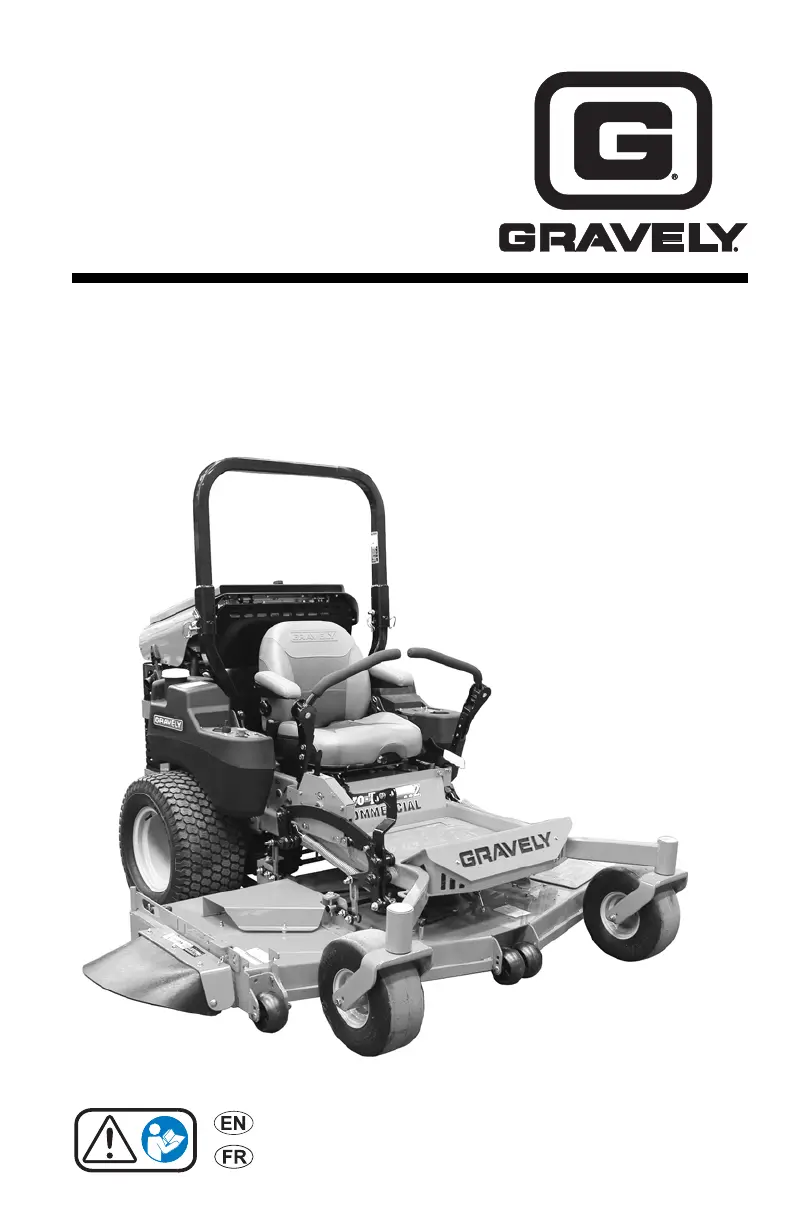

Page #1 background image

Loading...

Page #1 background image

Operator’s Manual

Manuel du I’utilisateur

Pro-Turn

400 Diesel

04887100 • 9/15

Printed in USA

ENGLISH

FRANÇAIS

™

Models

992236 – Pro-Turn 460 Diesel

(SN 050,000 +)

992240 – Pro-Turn 472 Diesel

(SN 050,000 +)

Questions and Answers:

C
Cassandra ThorntonAug 4, 2025
What to do if Gravely Lawn Mower engine cranks but does not start?
- T
  Tina PenaAug 4, 2025
  If your Gravely Lawn Mower engine cranks but doesn't start, the possible reasons include an empty fuel tank, which you should fill. Another reason might be a dirty air cleaner, so you should clean or replace it. Also, the fuel filter might be dirty, so clean or replace the fuel filter. If these steps do not resolve the issue, the engine may be faulty, and you should refer to the Engine Manual or consult your Gravely Dealer.
H
Hannah PriceAug 9, 2025
What to do if Gravely pro-turn 472 diesel 992240 Lawn Mower does not drive?
- Q
  qtoddAug 9, 2025
  If your Gravely Lawn Mower won't drive, start by checking if the parking brake is engaged and disengage it if it is. Make sure the transmission bypass levers are closed. Also, verify the hydraulic oil level and add oil if it's low. If the problem persists, there may be a fault in the hydraulic drive system, and you should consult your Gravely dealer.
J
Jennifer WarnerAug 13, 2025
Why PTO or mower blades do not engage on Gravely pro-turn 472 diesel 992240?
- A
  Angela PenningtonAug 13, 2025
  If the PTO or mower blades on your Gravely Lawn Mower do not engage or shut off, make sure the operator presence switch is depressed by sitting on the seat. If that's not the issue, the PTO switch may be faulty. Check the electrical system to the clutch for damage or wear, or consult your Gravely Dealer.
K
Karen HerringAug 17, 2025
What does it mean if the oil pressure light is on in Gravely pro-turn 472 diesel 992240?
- K
  Kelly LewisAug 17, 2025
  If the oil pressure light is on in your Gravely Lawn Mower, it indicates low oil pressure; refer to the Engine Manual for further instructions.
E
Eric RobertsonAug 21, 2025
How to troubleshoot Gravely Lawn Mower when engine does not crank?
- M
  Matthew GonzalesAug 21, 2025
  If your Gravely Lawn Mower engine won't crank, there are several potential causes. First, ensure the PTO is disengaged and the parking brake is engaged. Check for loose or corroded battery cables, and if found, clean and tighten them. The battery may also be discharged, so charge it. If none of these steps work, the starter may be faulty, and you should consult your Gravely Dealer.
G
Gary SanchezAug 26, 2025
Why is Gravely pro-turn 472 diesel 992240 Lawn Mower overheating?
- P
  Phillip MatthewsAug 27, 2025
  If the water temperature gauge on your Gravely Lawn Mower is reading above normal, indicating overheating, check the following: Ensure the engine oil level is adequate—add oil if necessary, referring to the Engine Manual. Also, verify the coolant level and add coolant if it's low. A radiator plugged with debris can also cause overheating, so clean the radiator. If the issue persists, the radiator itself may be faulty, and you should consult your Gravely dealer.
J
Jessica MyersAug 30, 2025
What causes Gravely Lawn Mower engine to run when key is off?
- G
  Gerald ReillyAug 30, 2025
  If your Gravely Lawn Mower engine continues to run when the ignition key is in the off position, it could be due to a disconnected ignition ground wire; connect the ground wire to a clean metal surface. Alternatively, the ignition switch may have failed and needs replacement; consult your Gravely Dealer.

Gravely pro-turn 472 diesel 992240 Specifications

General

Brand	Gravely
Model	pro-turn 472 diesel 992240
Category	Lawn Mower
Language	English

Summary

Safety Guidelines

Safety Symbols, Decals, and Rules

Explains signal words, safety decals, and general safety rules.

Operator Safety and Hazard Avoidance

Controls and Features

Operator Controls Overview

Identification and description of all unit controls and indicators.

Safety Interlock System

How to test and understand the unit's safety interlock system.

Key Operating Controls

Mower Deck and Parking Controls

Operation Procedures

Pre-Start Checks and Fueling

Essential checks before starting and how to fill the fuel tank.

Starting, Stopping, and Mowing

Procedures for starting, stopping, emergency stops, and mowing.

Maintenance Schedule

Regular Maintenance Tasks

Periodic Maintenance Tasks

Service and Adjustments

Engine Oil and Hydraulic Fluid Service

Steering, Drive, and Brake Adjustments

Adjusting steering neutral, transaxle neutral, tracking, and parking brake.

Mower Deck Adjustments

Clutch Adjustment

How to check and adjust the clutch air gap.

Storage and Troubleshooting

Troubleshooting Common Issues

Identifies common problems and their solutions.
