EN - 43
Adjust Blade Height
Level and pitch the mower with the height
adjusters (3) on each deck lift bracket
(Figure 41).
1. Turn the adjustment bolt (1) clockwise to
lower the deck or counterclockwise to
raise the deck.
2. Adjust all four corners of the deck to
desired pitch, ensuring that deck is even
side to side and front to back.
CLUTCH ADJUSTMENT
(Figure 42)
If clutch fails to engage or disengage properly
or begins to make abnormal noise, check the
air gap adjustment at the three inspection
slots.
To check:
1. Stop engine, remove key and wait for all
hot parts to cool.
2. Measure the air gap between the
armature and the rotor.
• Minimum: A 0.040 cm (0.016") feeler
gauge should slide between armature
and rotor with slight contact.
• Maximum: A 0.050 cm (0.020") feeler
gauge should slide between armature
and rotor with slight contact.
3. Repeat for each inspection slot.
To adjust:
1. If necessary, loosen gap adjustment
nuts until a 0.040 cm (0.016") feeler
gauge fits between armature and rotor.
2. Slide a 0.050 cm (0.020") feeler gauge
between armature and rotor.
3. Tighten gap adjustment nut until there is
slight contact on feeler gauge.
4. Repeat steps 1 – 3 at each inspection
slot.
NOTICE: Adjust air gap as evenly as
possible.
5. Start unit, engage and disengage PTO.
6. Shut off unit.
7. Recheck air gap and adjust if needed.

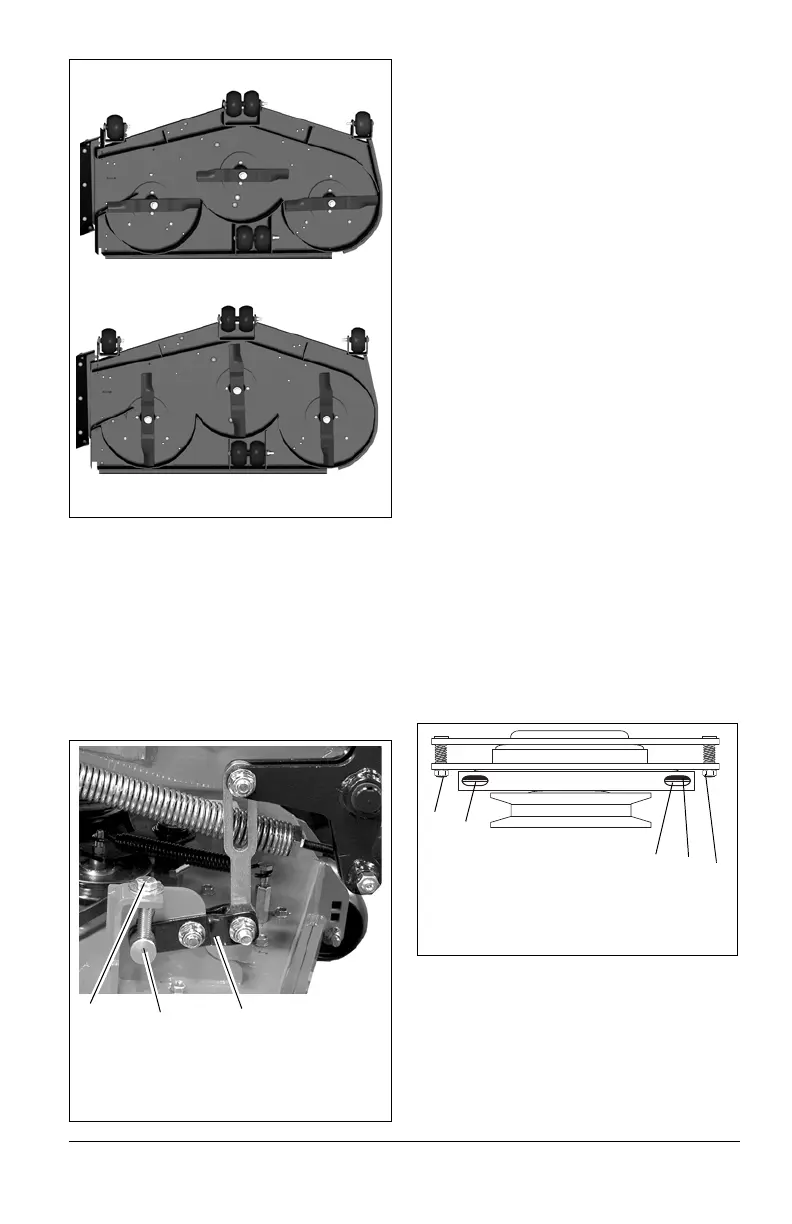

Figure 40
Blade Side-to-Side Level
Blade Front-to-Back Pitch
Front
Left
Rear
Right
Rear
Figure 41
1. Adjustment Bolt
2. Deck Lift Trunnion
3. Height Adjuster
1
2
3
1. Armature
2. Rotor
3. Inspection Slot
4. Gap Adjustment Nut
1
2
3
4
4
Figure 42
