Gravely CONVERTIBLE 10 - MANUFACTURERS SPECIFICATIONS AND RECOMMENDATIONS; ENGINE; ELECTRICAL SYSTEM; FUEL SYSTEM

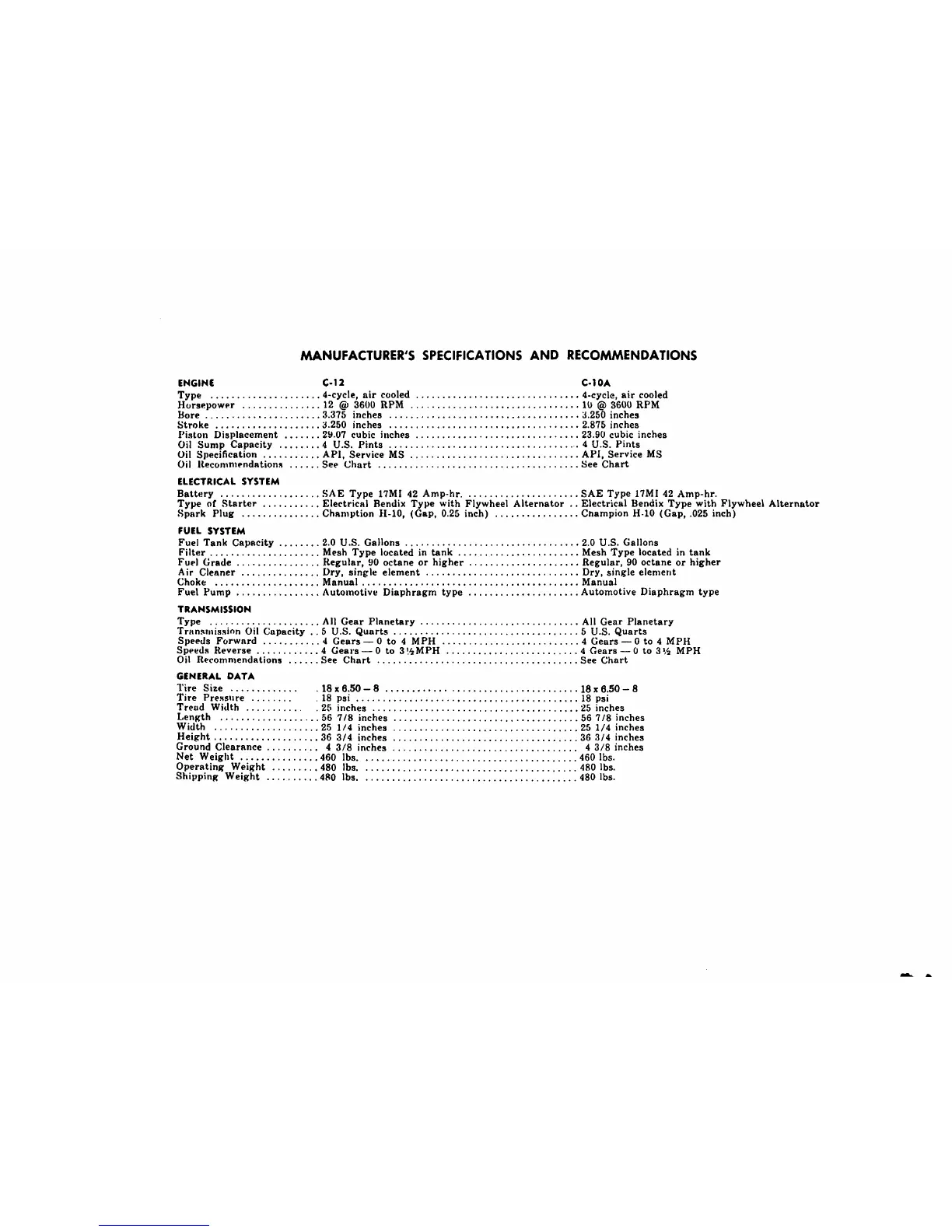

MANUFACTURER'S SPECIFICATIONS AND RECOMMENDATIONS
ENGINE C·12 C·l0A
Type 4-cycle, air cooled 4-cycle, air cooled
Horsepowf!r 12 @ 3600 RPM 10 @ 3600 RPM
Hore 3.375 inches :i.250 inches
Stroke .......•............ ~.250 inches 2.875 inches
Piston Displacement 2!1.07 cubic inches 23.90 cubic inches
Oil
Sump Capacity 4 U.S. Pints 4 U.S. Pints
Oil Specification API. Service MS API, Service MS
Oil Hecommt"ndationll Set" Chart See Chart
ELECTRICAL SYSTEM
Battery SAE Type 17MI 42 Amp-hr SAE Type 17MI 42 Amp-hr.
Type of Starter Electrical Bendix Type with Flywheel Alternator .. Electrical Hendix Type with Flywheel Alternator
Spark Plug Chamption 11-10, (Gap, 0.25 inch) Cnampion H·10 (Gap, .025 inch)
FUEL SYSTEM
Fuel Tank Capacity 2.0 U.S. Gallons 2.0 U.S. Gallons
Filter Mesh Type located in tank Mesh Type located in tank
Fut"1 Grade Regular, 90 octane or higher Regular, 90 octane or higher
Air Cleaner Dry, single element Dry, single element
Choke Manual Manual
Fuel Pump Automotive Diaphragm type Automotive Diaphragm type
TRANSMISSION
Type All Gear Planetary All Gear Planetary
Tramllnissinn Oil Capacity .. 5 U.S. Quarts 5 U.S. Quarts
Speeds Forward 4 Gears - 0 to 4 MPH 4 Gears - 0 to 4 MPH
Spt"eds Reverse 4 Geal'S - 0 to 3':,MPH 4 Gears - 0 to 3'., MPH
Oil R(Ocommendations See Chart See Chart
GENERAL DATA
Tire Size . 18 x 6.50 - 8 18 x 6.50 - 8
Tire Prellsllre . 18 psi 18 psi
Trend Width . 25 inches 25 inches
Len"th 56 7/8 inches 56 7/8 inches
Width 25 1/4 inches 25 1/4 inches
Height 36 3/4 inches 36 3/4 inches
Ground
Clearance. . . . . . . . .. 4 3/8 inches 4 3/8 inches
Net Weight 460 lbs 460 lbs.
Operating Weight 480 Ibs. . 480 lbs.
Shipping Weight 4110 lbs 480 Ibs.
-. ...
