GB - 8
Tools Required
• Adjustable wrench
• Petroleum jelly or dielectric grease.
Unpack Unit
Remove unit and all other components from
the shipping container. Engage transmission
bypass lever (see Moving the Unit Manually
on page 12). Push unit from container onto a
level surface. Disengage transmission
bypass lever.
Connect Battery
See Battery Removal and Installation on
page 20 and perform steps 2 and 3 in the
installation section.
Place Unit in Operating Position
(figure 3):
1. Tip seat back.
2. Secure seat to unit with clamping knob
(located in literature pack).
3. Install steering levers on the inside of the
handlebar brackets with mounting
hardware.
4. Adjust steering levers (see Steering
Lever Adjustments on page 21).
Check Engine Oil Level
Refer to Engine Manual.
Check Tire Pressure
See Specifications on page 28.
Level Mower Deck
See Level and Adjust Pitch of Mower Deck on
page 17.
Fill Fuel Tanks
See Filling the Fuel Tanks on page 12.
Adjust Seat
See Seat Adjustment on page 12.
Check Safety Interlock System
See Safety Interlock System on page 9.
Check function of all controls
See Operation on page 9.
ASSEMBLY
WARNING: AVOID INJURY. Read
and understand the entire Safety
section before proceeding.
WARNING: Safety interlock failure
and improper operation of unit can
result in death or serious injury. Check
system before each use to make sure
it is functioning properly.
OE0190
Shipping Position
Operating Position
2
4
3
1

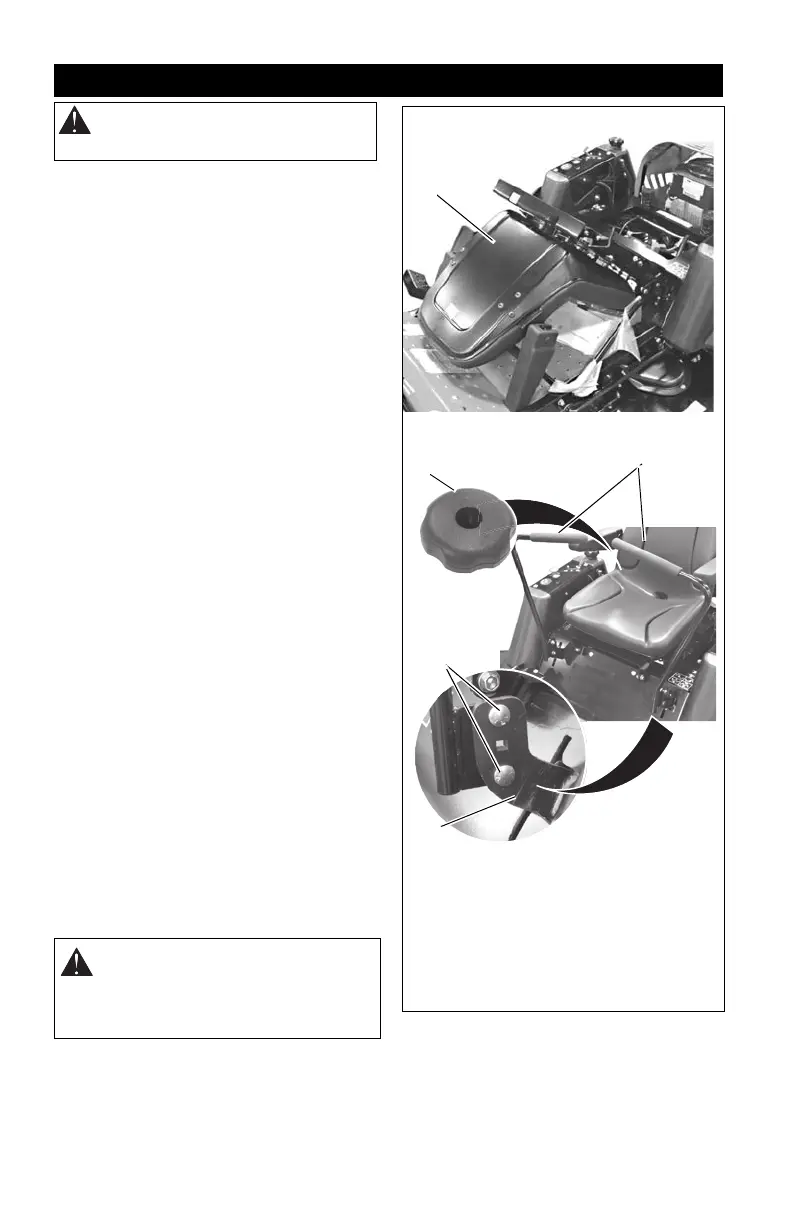

1. Clamping Knob
2. Seat
3. Steering Lever
4. Mounting
Hardware
5. Handlebar
Brackets
Figure 3
5
