lower the crushing module to its shipping position. The unit is top heavy and can tip over if the crushing
module is raised and the unit is not anchored to the floor.
Operating
Instructions
Place empty paint can with the lid removed or oil filter with the open end down in the center of the crushing
chamber.
Close door and turn door handle clockwise approximately 180 degrees. You may walk away to perform other
tasks. Upon returning, the filter or paint can will be crushed. If you want to crush containers in succession,
listen for air to stop flowing (up to 45 seconds). Some noise and vibration usually accompany the crushing
process.
To remove the crushed paint can or filter, turn the door handle counterclockwise and air will exhaust from the
ram cylinder. The door will not open until the ram is fully raised (approximately 10 seconds). Open the door
and remove the crushed, empty paint can or oil filter.
Note: A filter may be crushed for extended periods of time. The unit can be left under pressure until the next
filter or can is ready for crushing. You may crush several filters at one time provided they are all of similar
height and you have adequate air pressure. The catch basin outlet can become clogged with sludge and semi-
solid waste from filters. It is necessary to remove the catch basin and clean it periodically. Deposit solid residue
in acceptable containers. The oil level in the catch basin can be viewed through the opening beneath the door
when the door is closed.

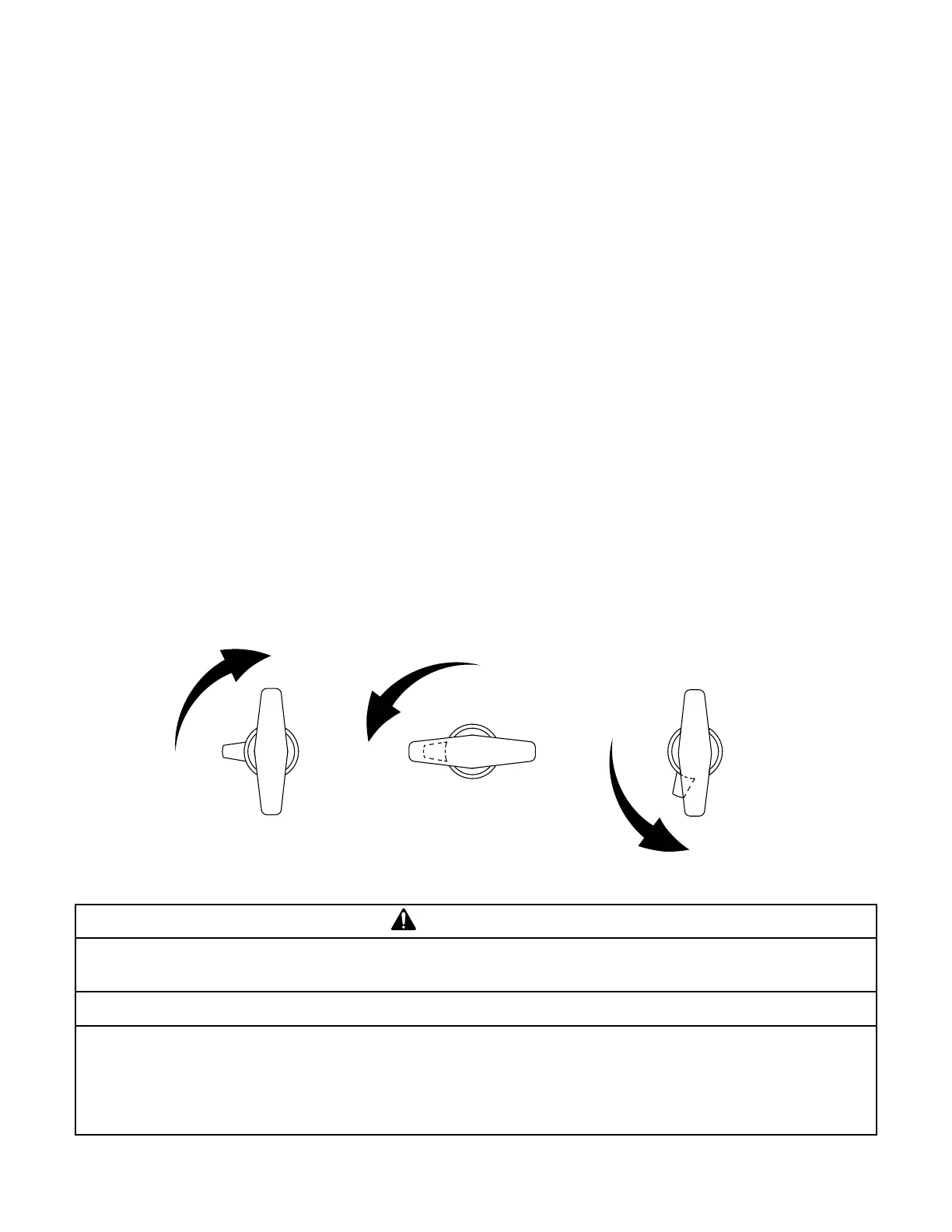

Door Handle Operation
Door closed and handle fully
turned clockwise, door is latched
and ram extends.
Door closed and handle turned
90 degrees counter-clockwise,
air exhausts, ram retracts and
door remains closed.
Handle turned fully counter-
clockwise, air exhausts and ram
retracts, door will open when
ram is fully retracted.
Maintenance Instructions
WARNING
All inspection and maintenance procedures must be performed after the jack has been removed from
service. Failure to heed this warning may result in personal and / or property damage.
NOTICE
The owner must inspect, or appoint a knowledgeable person to inspect, the jack. Visual inspection
should be made before each use of jack, checking for abnormal conditions. Regular inspections should
be made weekly for daily use and monthly for intermittent use. Each jack must be inspected
immediately if subjected to an abnormal load or shock. Any jack which appears to be damaged in any
way, is found to be badly worn, or operates abnormally shall be removed from service until necessary
To Next Page
