GReddy Intercooler Kit Installation Manual

―９―
(12) Remove the radiator air guide bolts. Once removed, uninstall the Intercooler(s) and radiator core support.
２
２２
２－
－－
－３
３３
３ Intercooler Removal
Intercooler RemovalIntercooler Removal
Intercooler Removal

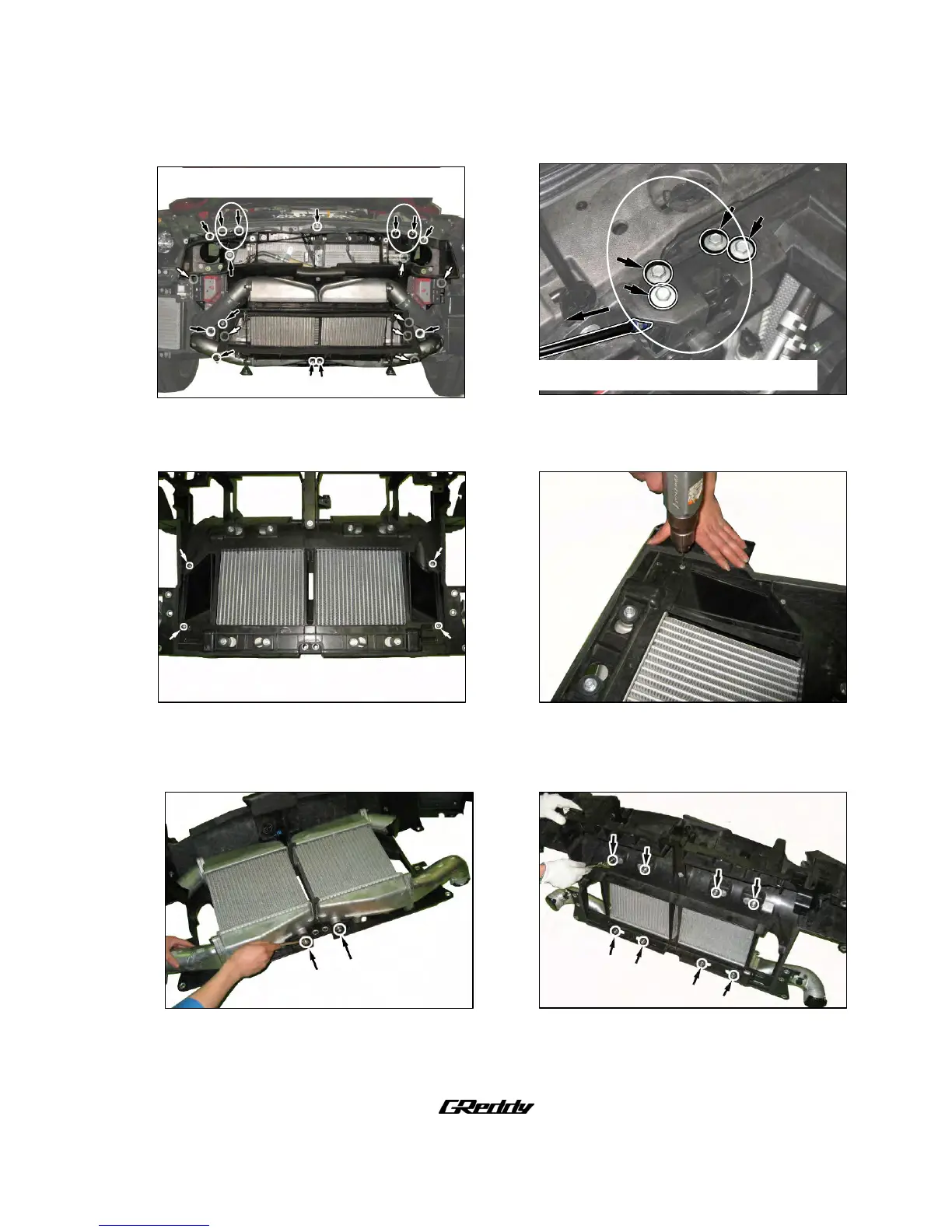

(1) The arrows show the rivets that will need to be drilled out. Once the rivets are drilled out, please remove the
Intercooler Intake Duct.
(2) Separate the intercooler(s) from the radiator core support.
Remove the driver side (U.S.). Then remove completely. Make sure not
to hit or damage the oil cooler.
※Slightly move the radiator core sup
port frame. Once
moved, disconnect the Hood Latch Cable Fastener.
