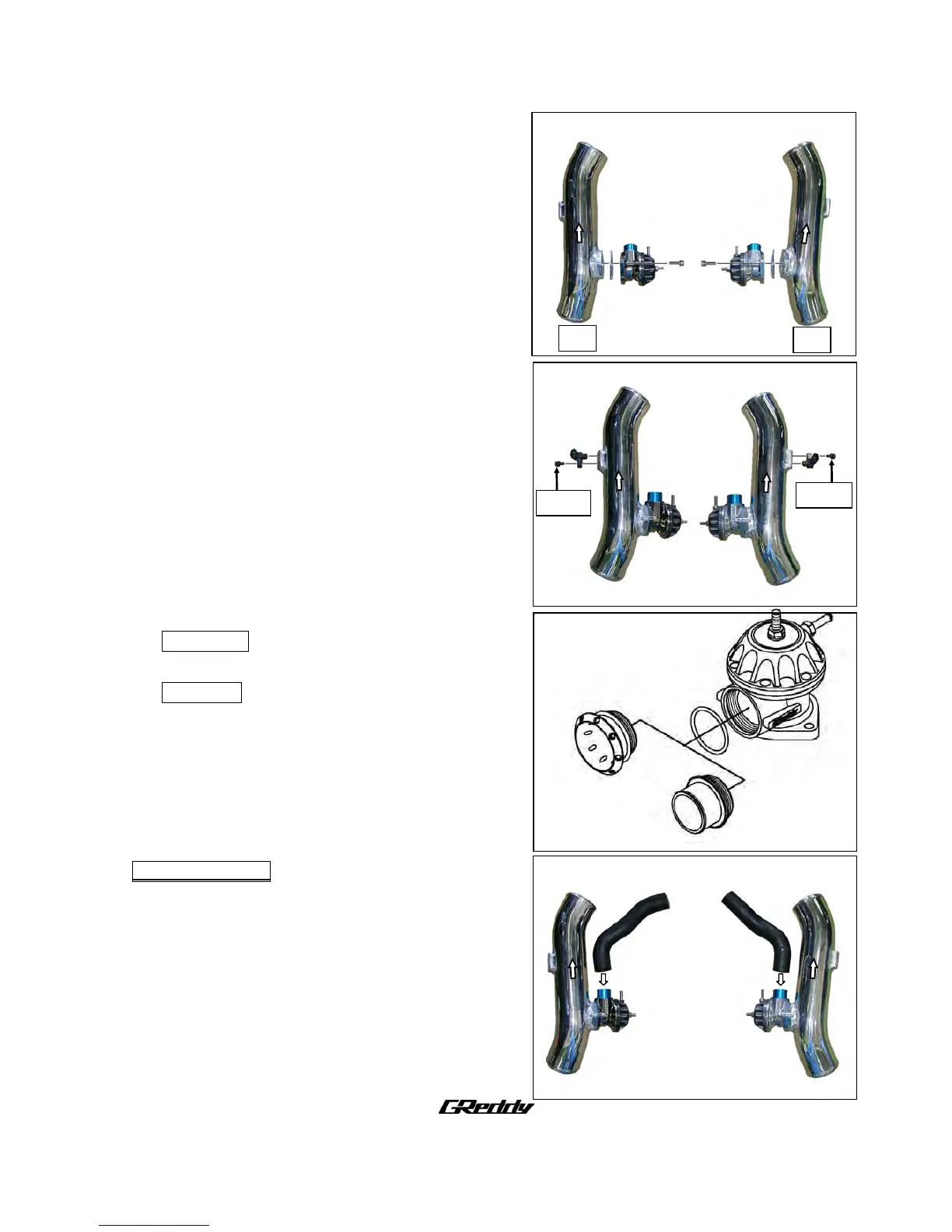

４ Throttle Side Intake Tube Installation
Throttle Side Intake Tube InstallationThrottle Side Intake Tube Installation
Throttle Side Intake Tube Installation
(1) Install the RZ Blow Off Valves onto intake tubes I-4 &
I-8
※ Make sure to arrange the Blow Off Valve outlets in the
direction towards the pressure sensors.
(2) Disconnect the pressure sensors from the stock piping
and install them onto Intercooler Pipes I-4 & I-8.
※ We recommend applying silicone grease to the pressure
sensor O-rings.
(3) Blow Off Valve Attachment Selection.
Recirculated
Install the Hose Attachment.
Atmospheric
Install the Funnel.
※ For Blow Off Valve Attachment installation, please refer
to the Blow Off Valve manual.
Recirculated
RecirculatedRecirculated
Recirculated Blow
BlowBlow
Blow Off
OffOff
Off
(1) Install the OEM recirculation hoses to the Blow Off
Valves.
Funnel
Hose Attachment
Attachment
I-8
I-4
M6×15
M6×15
