―１３―

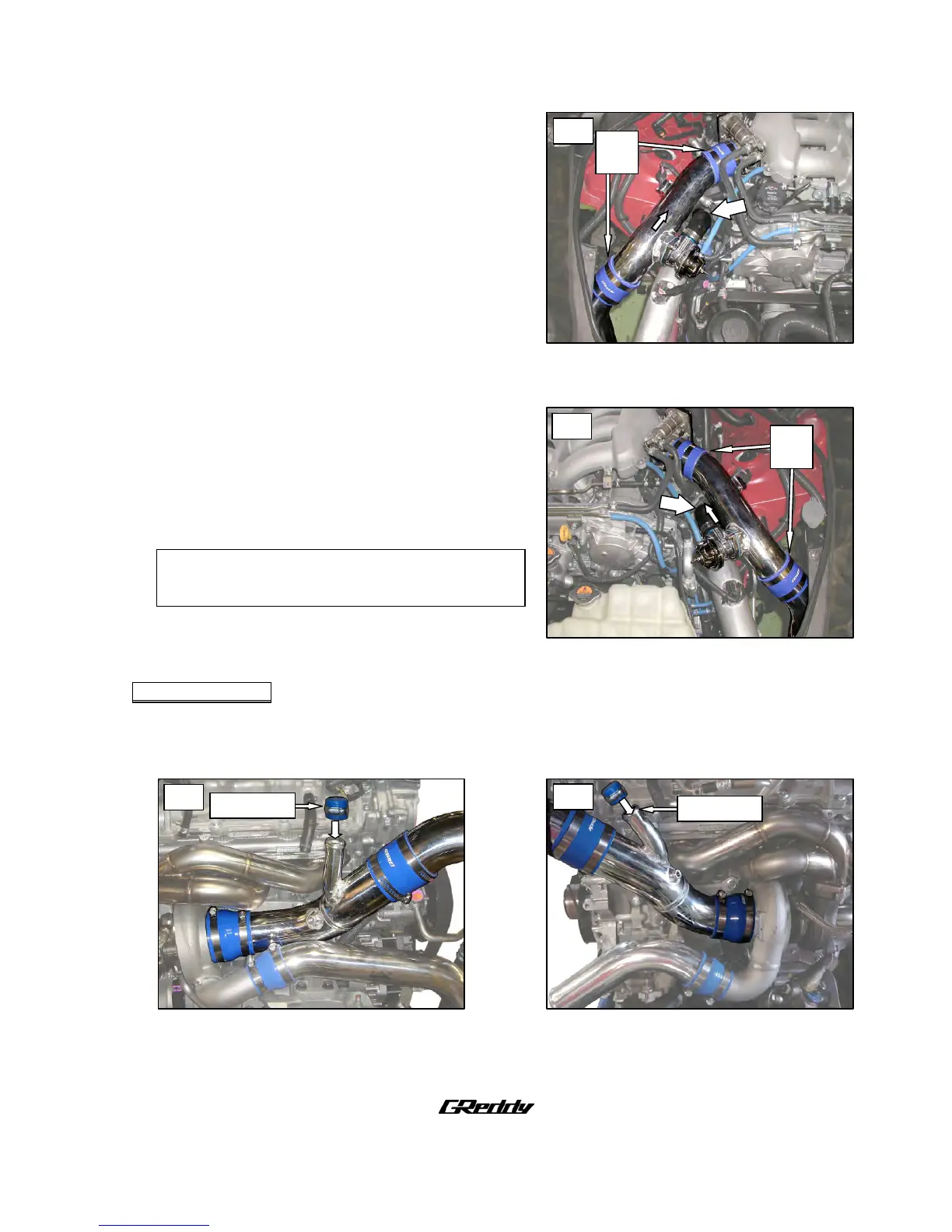

(2) Temporarily attach intake tube I-8 assembly between the
passenger side throttle body and I-7 using the 70mm hose
#10 and hose clamps #11. Connect the OEM recirculation
hose to the 28mm tube of the turbo inlet intake tube
using the hose clamp #6 (BOV parts list) to the Hose
Attachment.
(3) Temporarily attach intake tube I-4 assembly between the
driver side throttle body and I-3 using the 70mm hose #10
and hose clamps #11. Connect the OEM recirculation
hose to the 28mm tube of the turbo inlet intake tube
using the hose clamp #6 (BOV parts list) to the Hose
Attachment.
When using the recirculated method, part #3 (BOV
manual) the rubber cap will not be used.
Atmospheric
AtmosphericAtmospheric
Atmospheric
Blow
BlowBlow
Blow
Off
OffOff
Off
(1) In both left and right side turbo inlet intake tubes block off the 28mm tubes with the Rubber Caps part #3
using the hose clamps #6 (BOV manual).
ＬＨ
To Next Page
