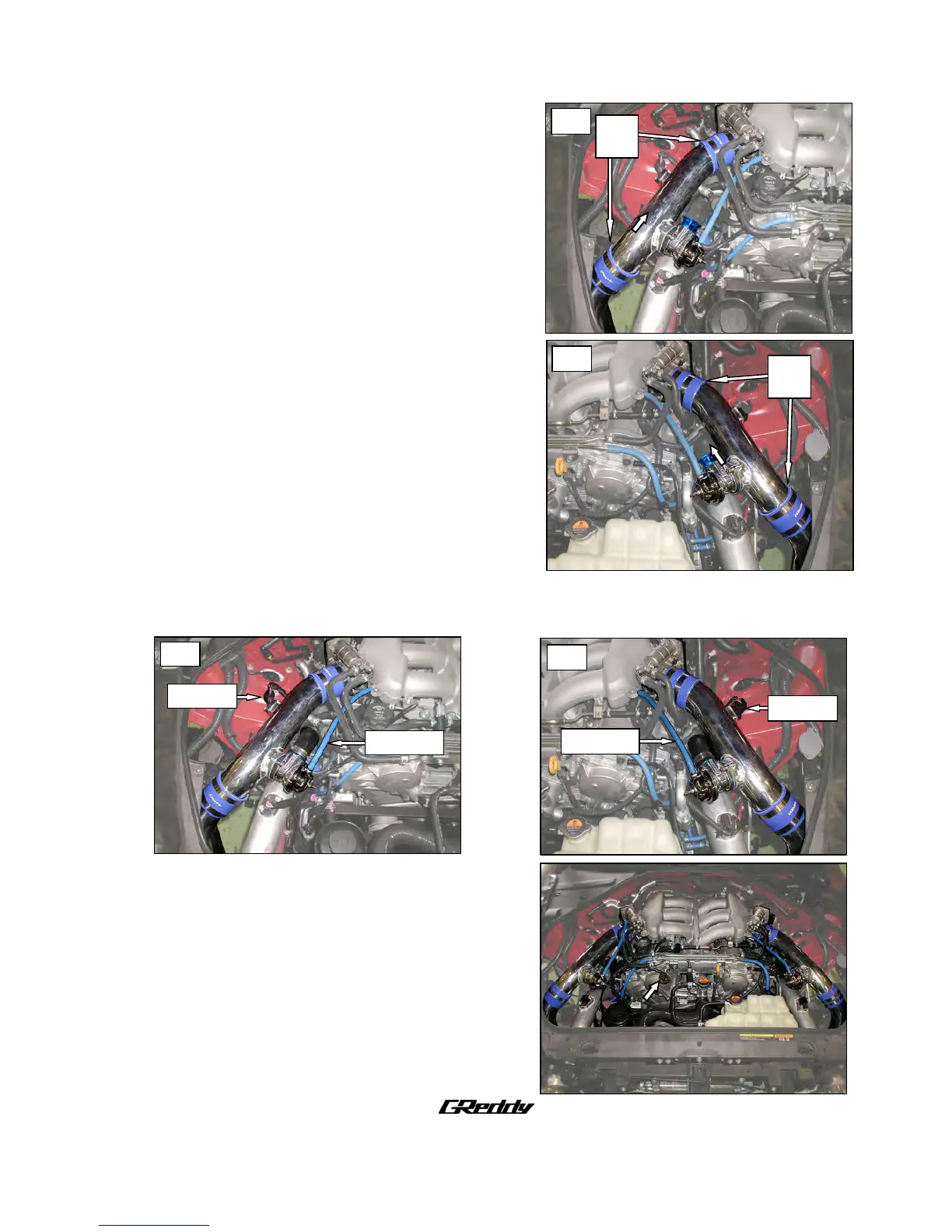

(2) Temporarily attach intake tube I-8 assembly between
the passenger side throttle body and I-7 using the 70mm
hose #10 and hose clamps #11.
(3) Temporarily attach intake tube I-4 assembly between
the driver side throttle body and I-3 using the 70mm
hose #10 and hose clamps #11.
３
３３
３－
－－
－５
５５
５
Vacuum Line Attachment
Vacuum Line AttachmentVacuum Line Attachment
Vacuum Line Attachment
(1) Connect the 6mm vacuum lines from the vacuum source to the tops of the RZ Blow Off Valves. Connect the
pressure sensor couplers to the pressure sensors.
(2) Once you have adjusted the piping to the correct
location and orientation, tighten all bolts and hose
clamps.
(3) Place the emblems on top of the Blow Off Valves.
