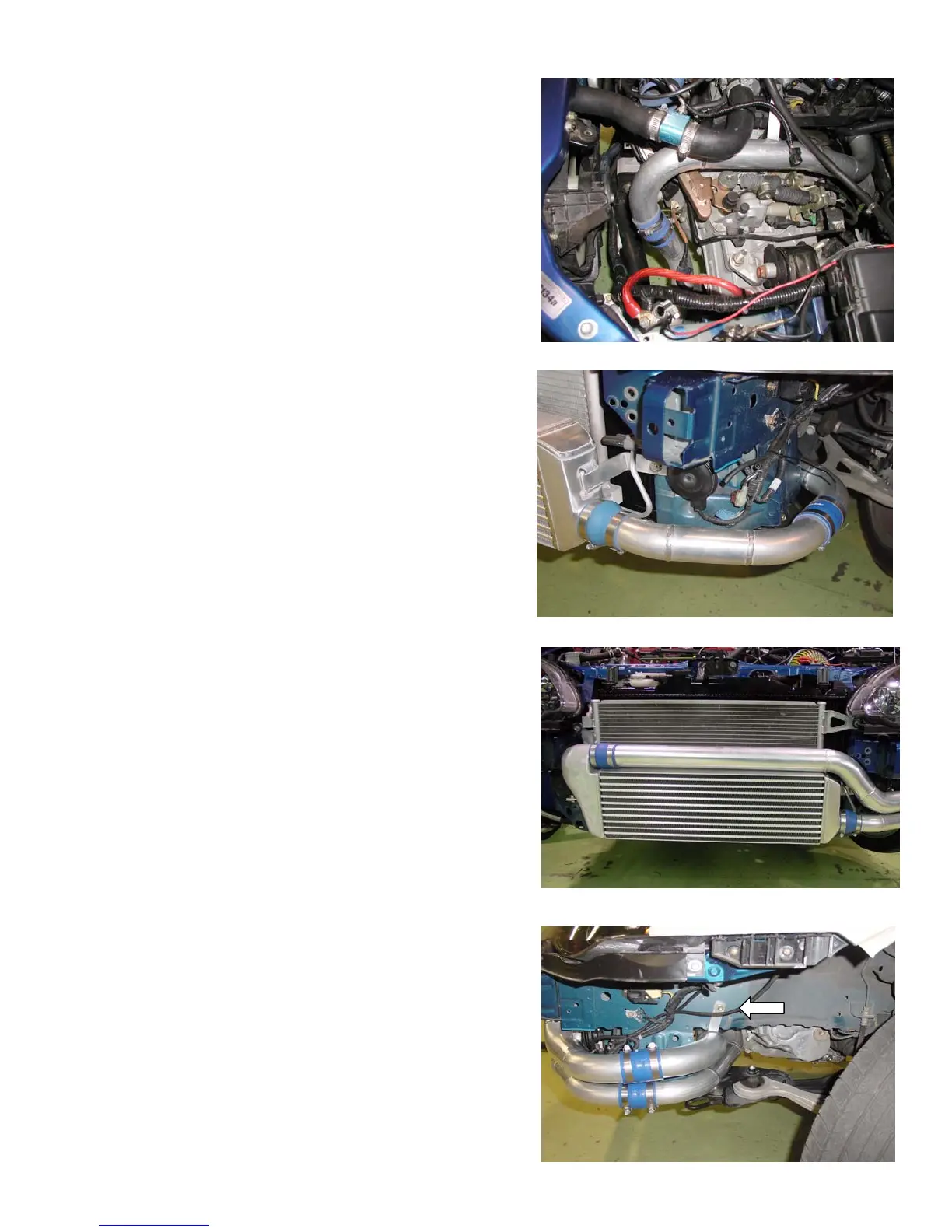

(2) Install the Intercooler pipe I-2 to the I-1 as
shown.
(Parts used # 3, 12)
(3) Install the I-3 pipe between I-2 and
intercooler inlet as shown.
(Parts Used #: 4, 12, 14)
(4) Install the I-4 to the intercooler outlet as
shown.
(Parts Used #: 5, 13)
(5) Install the Intercooler pipe I-5 to the I-4 as
shown. Secure the I-5 to the body. Modify
the splash guard where it contacts these
pipes.
(Parts Used #: 6, 13)
