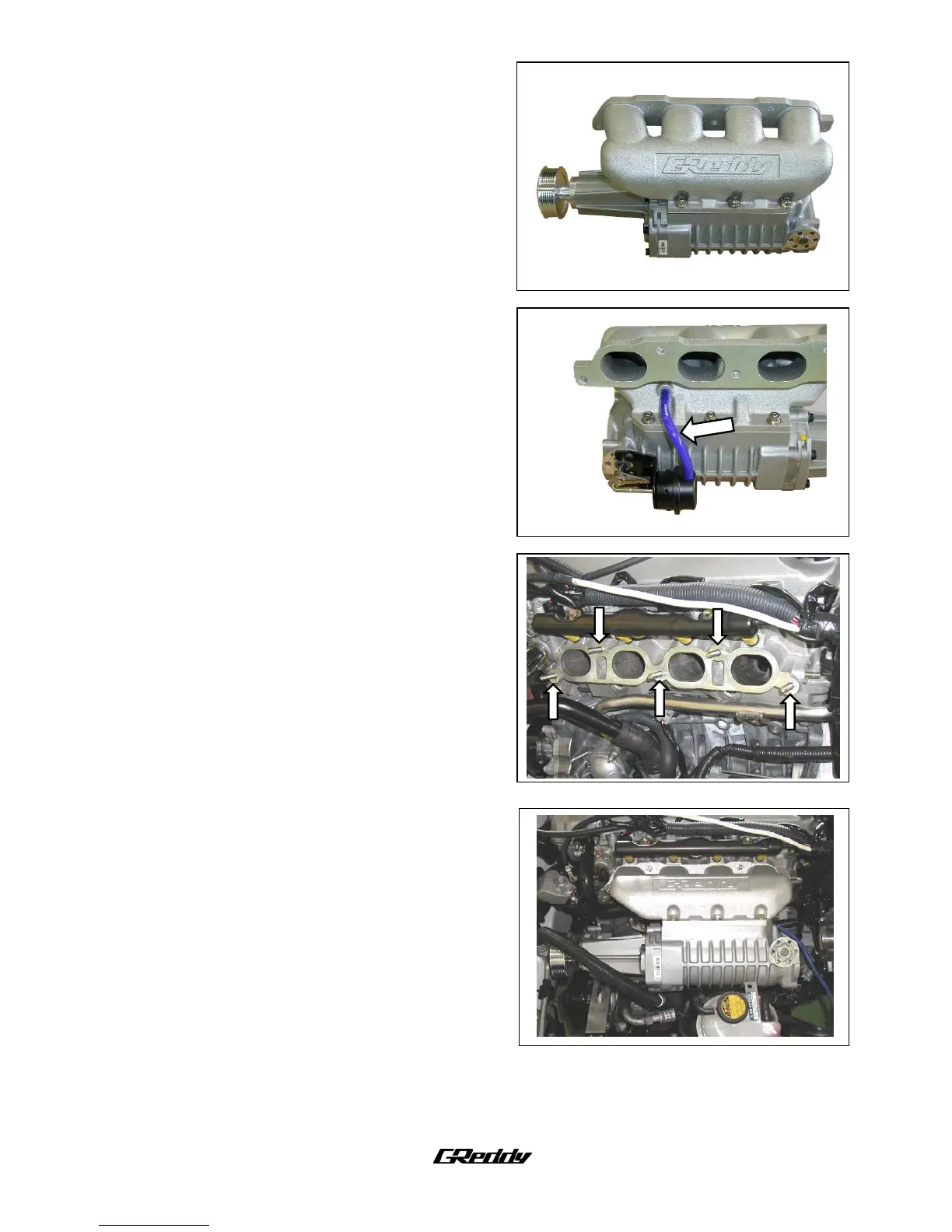

３－３ Kit Supercharger assembly
(1) Screw in the provided stud bolts onto the
supercharger outlet flange and apply silicone sealant
to the flange surface. Attach Kit intake manifold to
the supercharger.
※ Try to prevent sealant from protruding to the inside
of the manifold.
〈Parts №１，２，２７〉
(2) Connect the actuator port to the intake manifold port
using the 6mm hose provided. Secure hose ends
with cable ties.
※
※
When using a boost gauge, use this pressure source
to monitor intake manifold pressure.
〈Part №１６，１７〉
３－４ S/C Assy Installation
(1) Remove the OEM stud bolts on the intake side of the
cylinder head and screw in five of the studs provided.
〈Part №２８〉
(2) Place the OEM intake manifold gasket between the
intake manifold and head and install manifold
When installing the intake manifold, place the radiator
reserve tank on the hood latch.
〈Part №２８〉
―７―
