―１１―

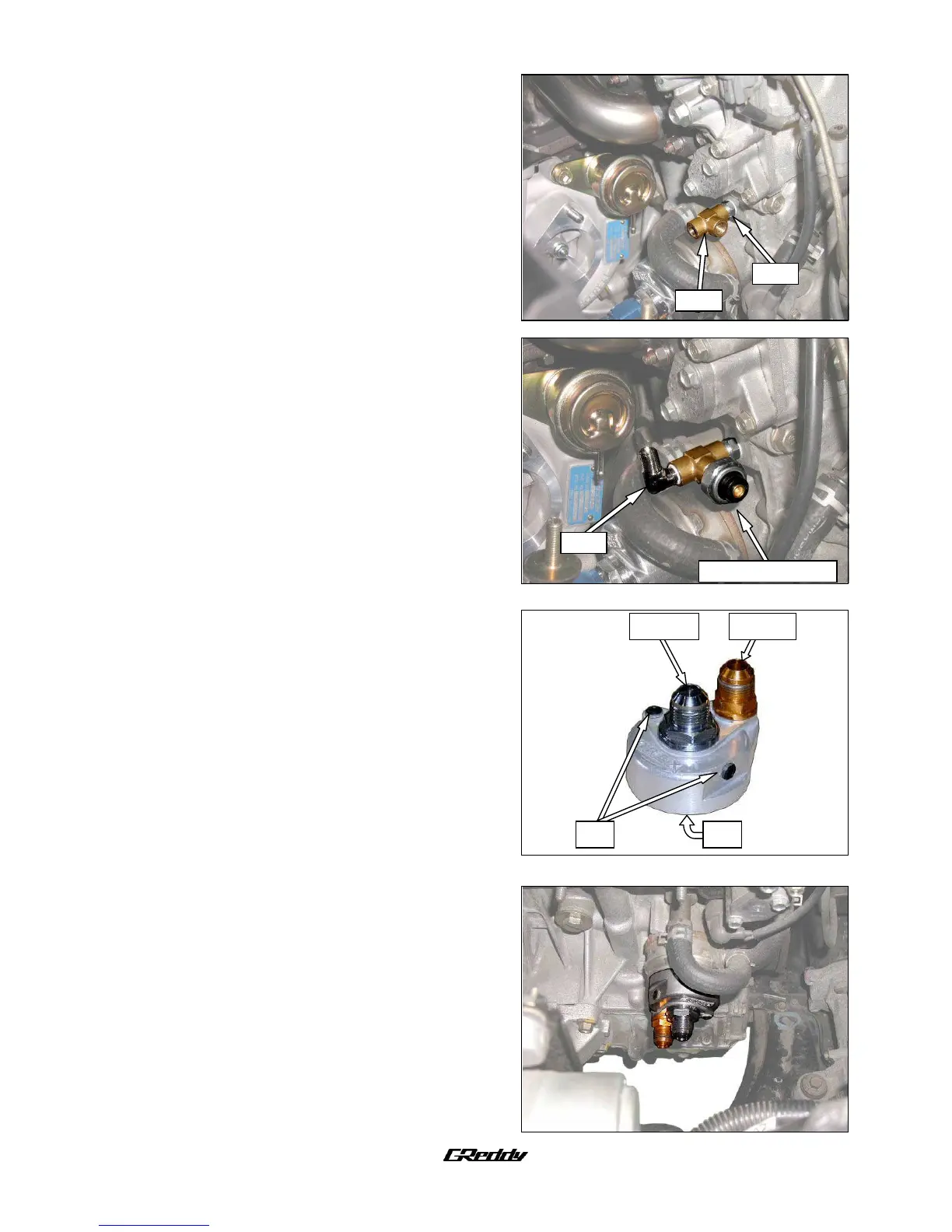

3-2 Oil Pressure Switch
(1) Remove the factory oil pressure switch. Install #36
union into the #38 three way fitting. Proceed to
install into the block where the oil pressure switch
was located.
*Be sure to use Teflon tape on each side of the
union.
〈Parts used: 36，38〉
(2) Install the factory oil pressure switch to the part of
the three way fitting facing the front of the car.
※ Install the ９ ０° fitting #37 facing upwards as
shown.
※ Be sure to use Teflon tape on the ９０°fitting (3
way fitting side ONLY) and on the oil pressure
switch.
〈Parts used: 37〉
3-3 Oil Filter relocation
(1) Install Unions #21 & #23 into Oil Block adapter
#19. Make sure to use the provided O rings #25 &
#26 on the unions and #24 on the adapter. Install
union plugs #29 into the adapter as shown.
※ Lubricate the o-ring and the thread to prevent any
cross threading and damaging the o-ring.
※ Apply Teflon tape on the 1/8PT plugs and make
sure not to over torque.
〈Parts used: 19, 21, 23, 24, 25, 26, 29〉
(2) Install the adapter as shown. The #23 union
should be facing in the 7 o’clock position, tighten
the #21 union so the adapter is secured in this
position.
※ Lubricate the O-ring and the thread to prevent any
cross threading and damaging the o-ring.
№38
№36
№37
Oil press sensor
№29
№21，25
№23，26
№24
To Next Page
