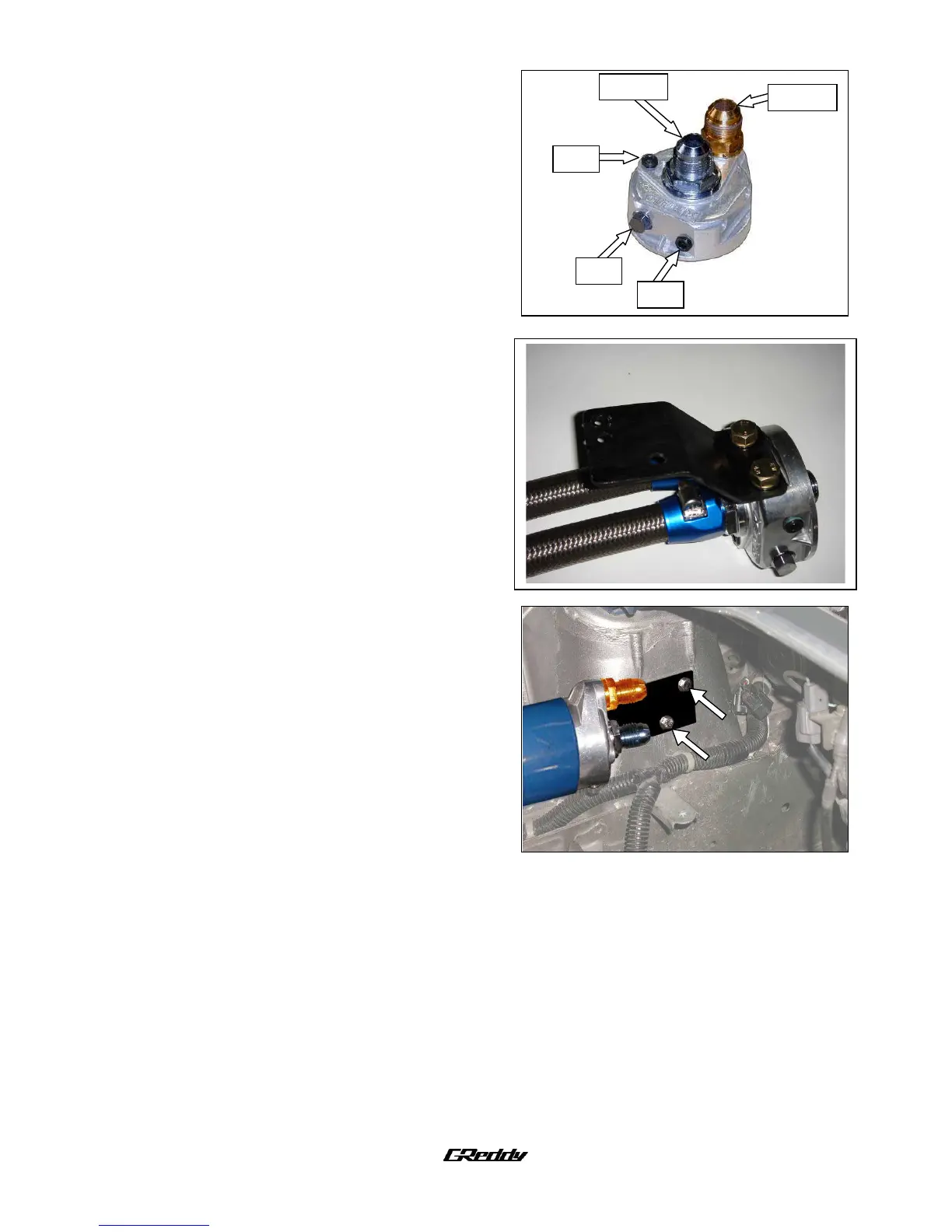

(3) Install #29 union plugs in the 2 locations in
adapter #20 as shown. Install union #22 with O
ring #25 and union #23 with O ring #26 in the
adapter as shown. Install plug bolt #30 as shown.
※ Lubricate the o-ring and the thread to prevent any
cross threading and damaging the o-ring.
※ Apply Teflon tape on the 1/8PT plugs and make
sure not to over torque.
〈Parts used: 20，22，23，25，26，29，30〉
(4) Attach bracket #33 to the adapter using bolts #88.
Attach the oil filter to the adapter, be sure to use a
little oil on the filter seal.
※ Lubricate the O-ring on the filter.
〈Parts used: 32，33，88〉
(5)
(5)(5)
(5)
Attach the filter adapter to the passenger side
shock tower using the provided M6 bolts #83.
〈Parts used: 83〉
№23，26
№22，25
№30
№29
№29
