―１５―

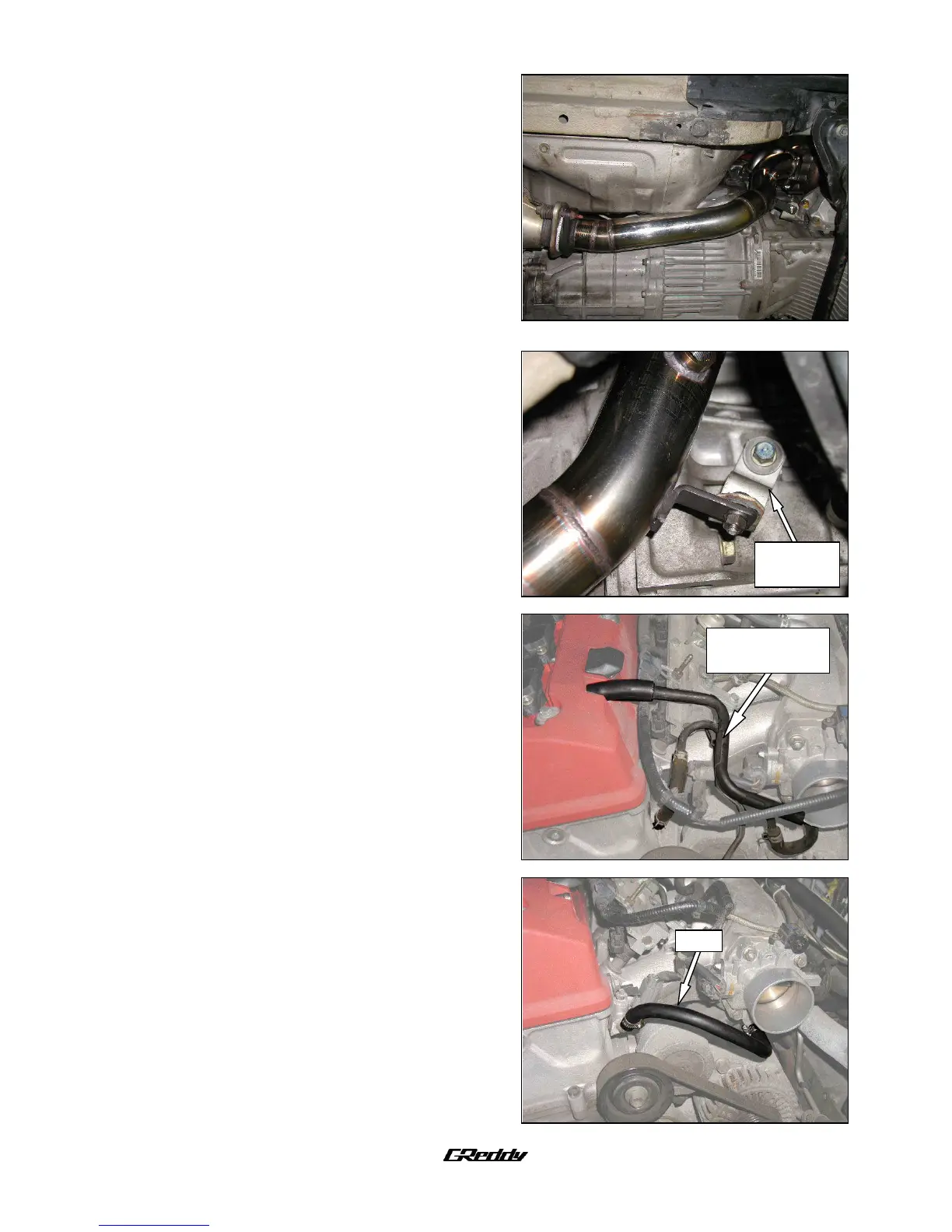

(2) Install the downpipe to the turbine housing using
#61 turbine gasket, secure with provided nuts and
lock washers.
※ Use factory spring bolts to attach the downpipe to
the catalytic converter.
〈Parts used: 61〉
(3) Use the factory exhaust manifold bracket to
support the downpipe.
※ Use the factory bolt on the transmission side, use
#92 nut/bolt to secure the downpipe to the
bracket.
〈Parts used: 92〉
3-6
Vacuum Piping
(1) Remove the breather/coolant pipe. Have a towel
or rag ready to catch the coolant that will spill out
from the port below the throttle body.
(2) Use #44 ８ φ hose to connect the coolant
passages as shown. Secure the ends with the
provided #53 hose clamps.
〈Parts used:44，53〉
Factory
Bracket
Breather/Water
Pipe Assy.
№29
To Next Page
