―１４―
3-4

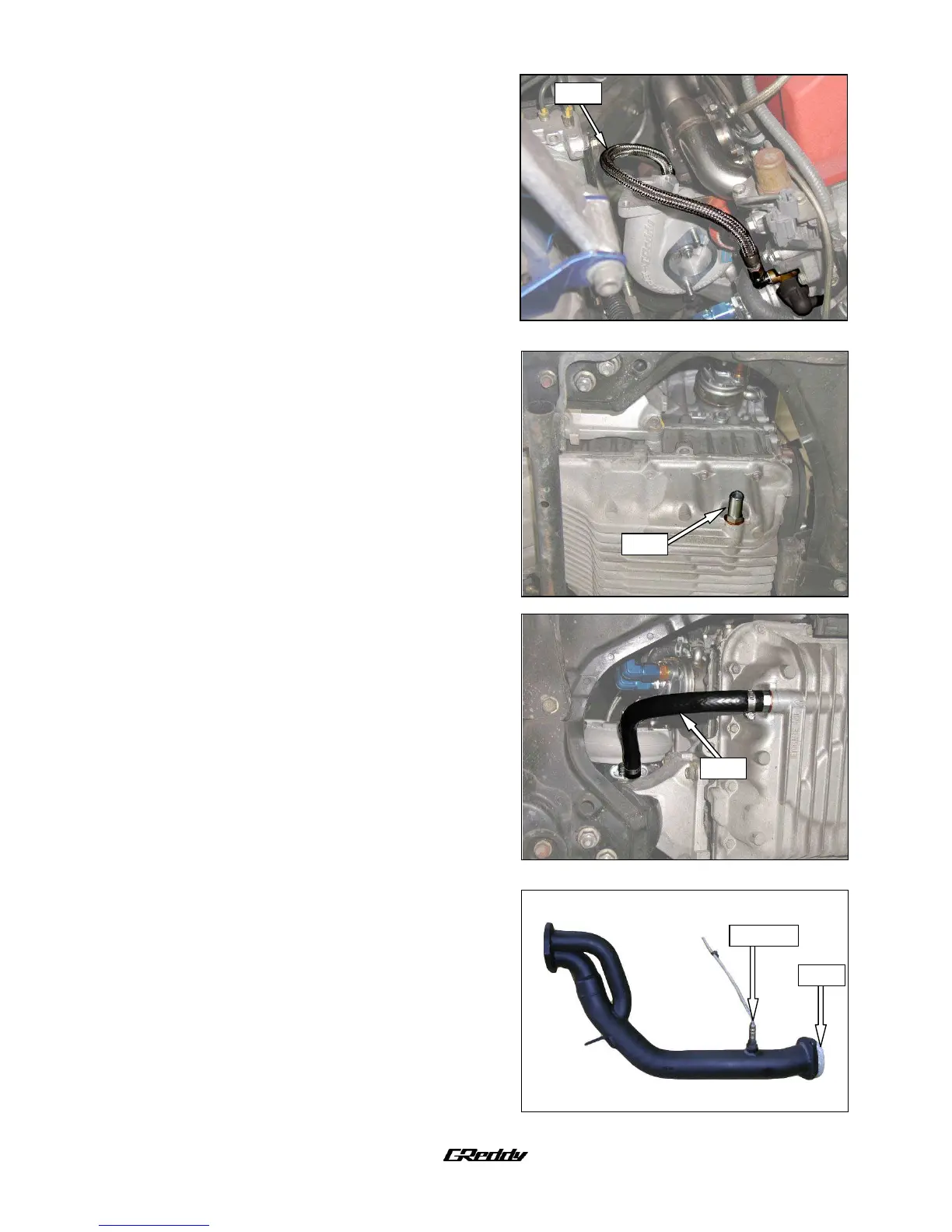

Oil Feed Line installation
(1) Install the #34 oil feed line as shown, connecting
one end to the ９０°fitting from the oil pressure
switch and the other to the union on the top side
of the turbo. Bend the line to make room for the
compression pipe on the turbo. Be careful not to
kink the line. Be sure that the oil line does not
make contact with any other parts.
〈Parts used: #34〉
(2) Remove the factory oil drain bolt and crush
washer. Using #41 Union and #42 brass washer,
install where the factory oil drain bolt was located.
〈Parts used: 41, 42〉
(3) Cover the #46 １５φhose with thermo cloth (#78)
and connect it from the oil return flange pipe to the
oil return union on the oil pan. Use #55 hose
bands on each end to secure the hose from
leaking oil.
〈Parts used: 46，55, 78〉
3-5 Downpipe Installation
(1) Disconnect and remove the O2 sensor from the
factor exhaust manifold and install onto the
provided downpipe. Install the #64 downpipe
gasket on the end of the downpipe, which
connects to the catalytic converter.
〈Parts used: 3，64〉
№41
№34
№64
Sensor
№46
To Next Page
