Gree FGR30Pd/DNa-X

Ducted Type Split Air-Conditioner Units(Inverter Series)
4
Below are dimensions of A,B,C, etc. for different models:
Unit: mm
Model A B
Size of air
supply
Size of air
return
G H I
C
E
D
F
FGR20Pd/DNa-X(I)
1355
632
992
192
1150
326
1315
760
385
FGR25Pd/DNa-X(I)
1563
707
992
192
1350
402
1520
840
450
FGR30Pd/DNa-X(I)
1563
707
962
262
1350
402
1520
840
450
FGR40Pd/D(2)Na-X(I)
1730
760
1054
359
1450
557
1680
900
650
(2) Drill bolt holes and install bolts.

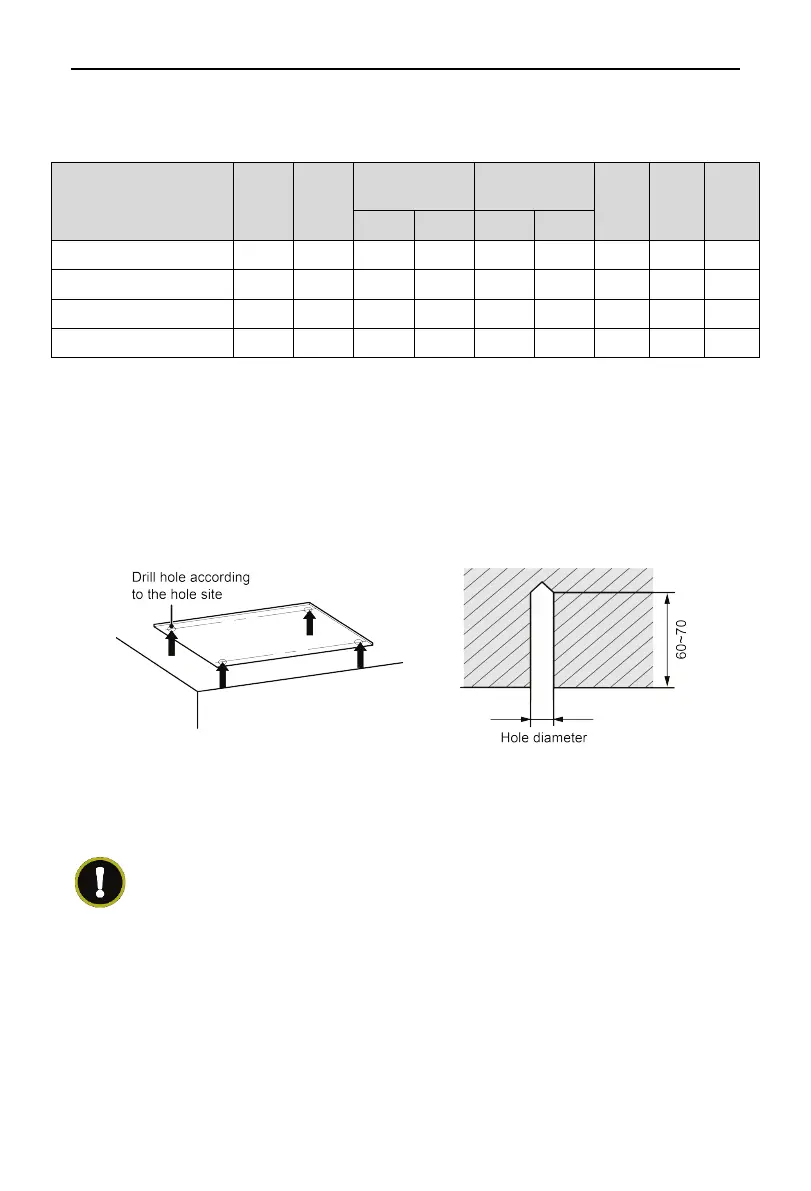

1) Stick the reference cardboard on the installation position; drill 4 holes
according to the hole site on the cardboard as shown in Fig 2;
diameter of drilling hole is according to the diameter of expansion bolt
and the depth is 60-70mm, as shown in Fig 3.
Unit: mm
Fig.2 Fig.3
2) Insert the M10 expansion bolt into the hole and then knock the nail into
the bolt, as shown in Fig 4.
NOTES!
The length of bolt depends on the installation height of the unit, bolts are field
supplied.
