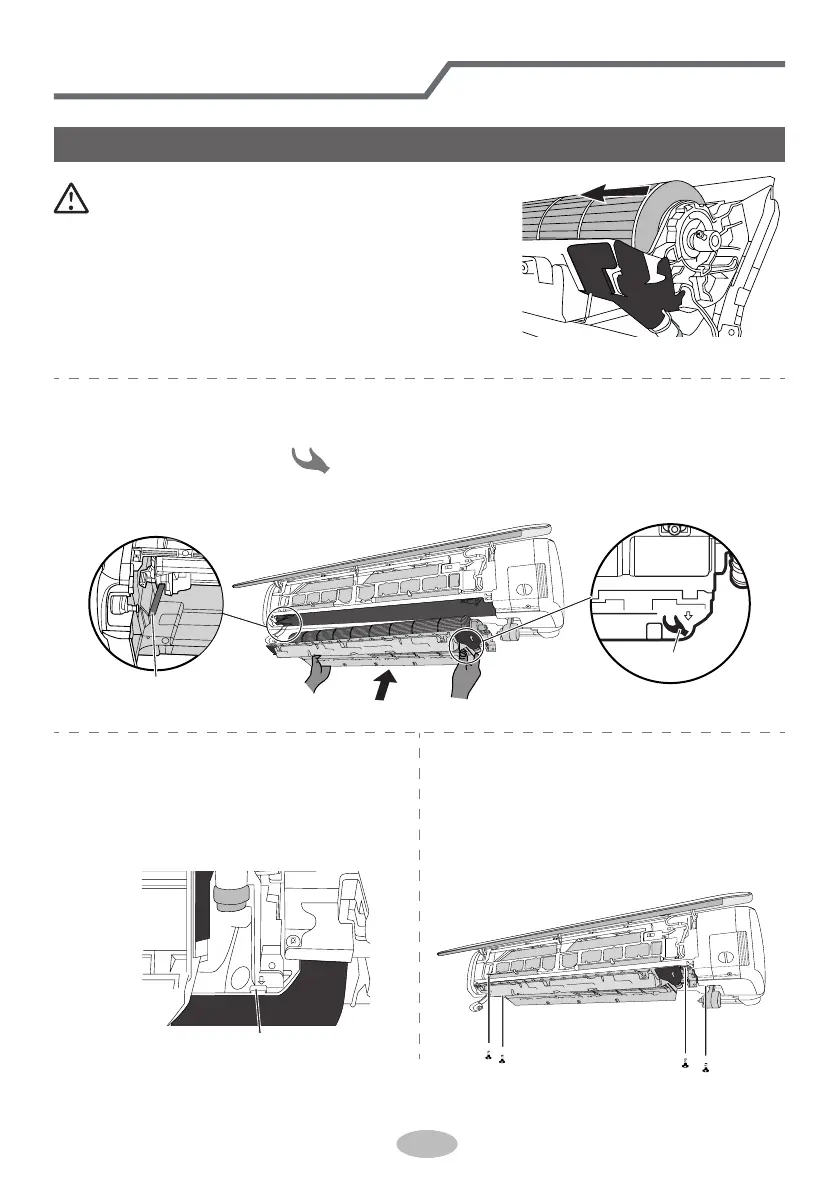

Clean and maintenance
16
Caution
Guide rail of base
Hand-shape
Blocking position
Install bottom case
1
Indoor unit installation
Before reinstall the bottom case when it has
been cleaned, please check whether the blade
has been pushed to the left side.
Hold the position with " " under the bottom case, push it upwards parallel
along the guide rail of base and then check whether the both ends of bottom
case is set into the tail of the guide rail of base for ensuring the installation.
Fix the bottom case
2
①Check whether the guide rail of
bottom case is installed at the
blocking position of base.
②
When the bottom case is assembled,
take 4 screws from the storage box
of screw at the middle of the front
case and then use the screwdriver
to fix these 4 screws at the bottom
case.
