Service Manual
Installation and Maintenance
Symbol Symbol Color Symbol Symbol Color Symbol Name
WH White GN Green COMP Compressor
YE Yellow BN Brown Grounding wire
RD Red BU Blue / /
YEGN Yellow/Green BK Black / /
VT Violet OG Orange / /
5.Electrical Part

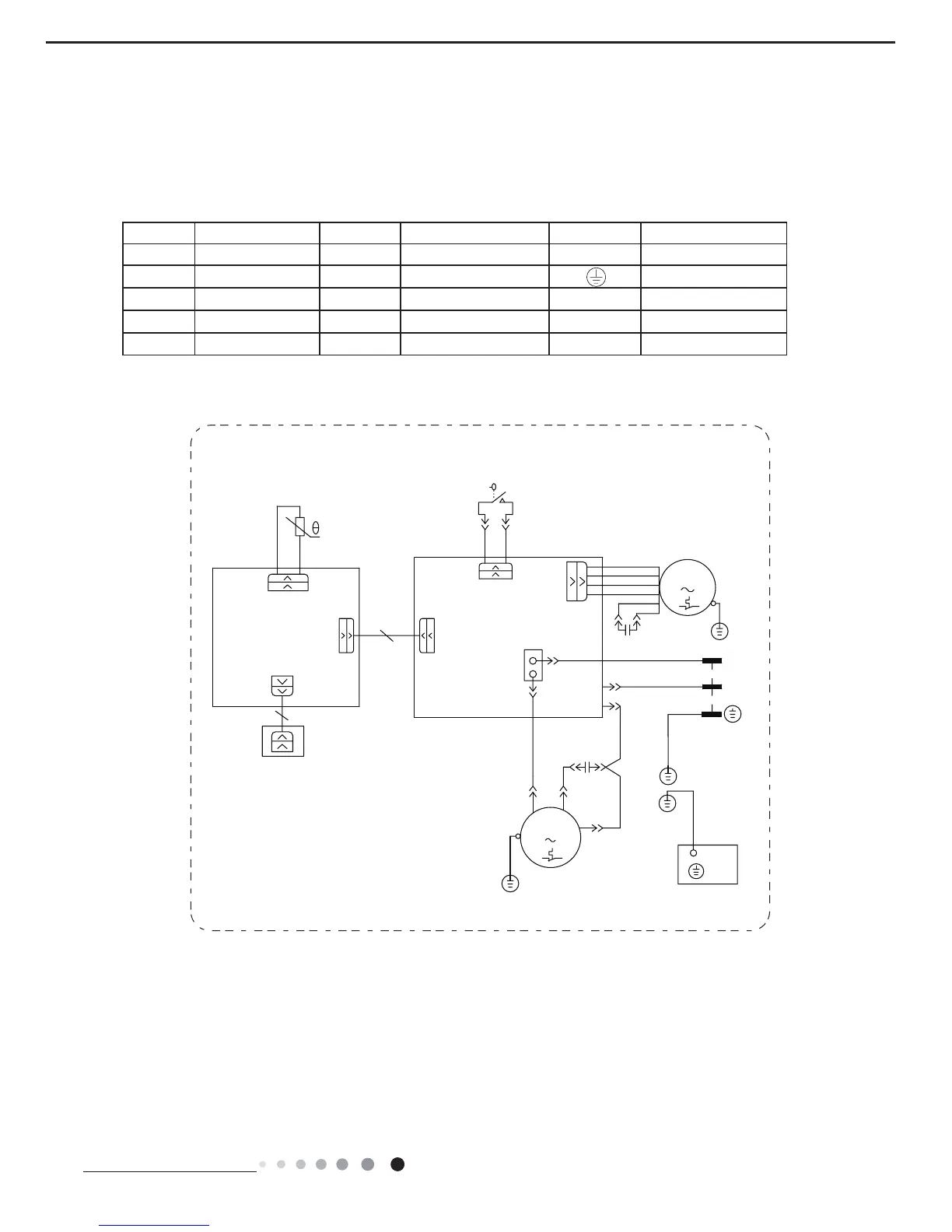

5.1 Wiring Diagram
●Instruction
These circuit diagrames are subject to change without notice ,please refer to the one supplied with the unit.
PE
YEGN
CN4
SENSOR
ST
HUMIDITY
AC-L
YEGN
C1
C
RD
YEGN(GN)
BU(WH)
BN(BK)
CN1
AP2
CN1
CN3
AP1
L
N
COMP.
M
WATER LEVEL SWITCH
N1
PE
POWER
FAN
MOTOR
PE
YEGN
PE
COMP
SA
COM
NO
BU
BN
CN2
K1
N
PE
TUBE
RT1
TUBE
TEMP.SENSOR
ELECTRIC
BOX
C2
YE
BU
BU
R
S
To Next Page
